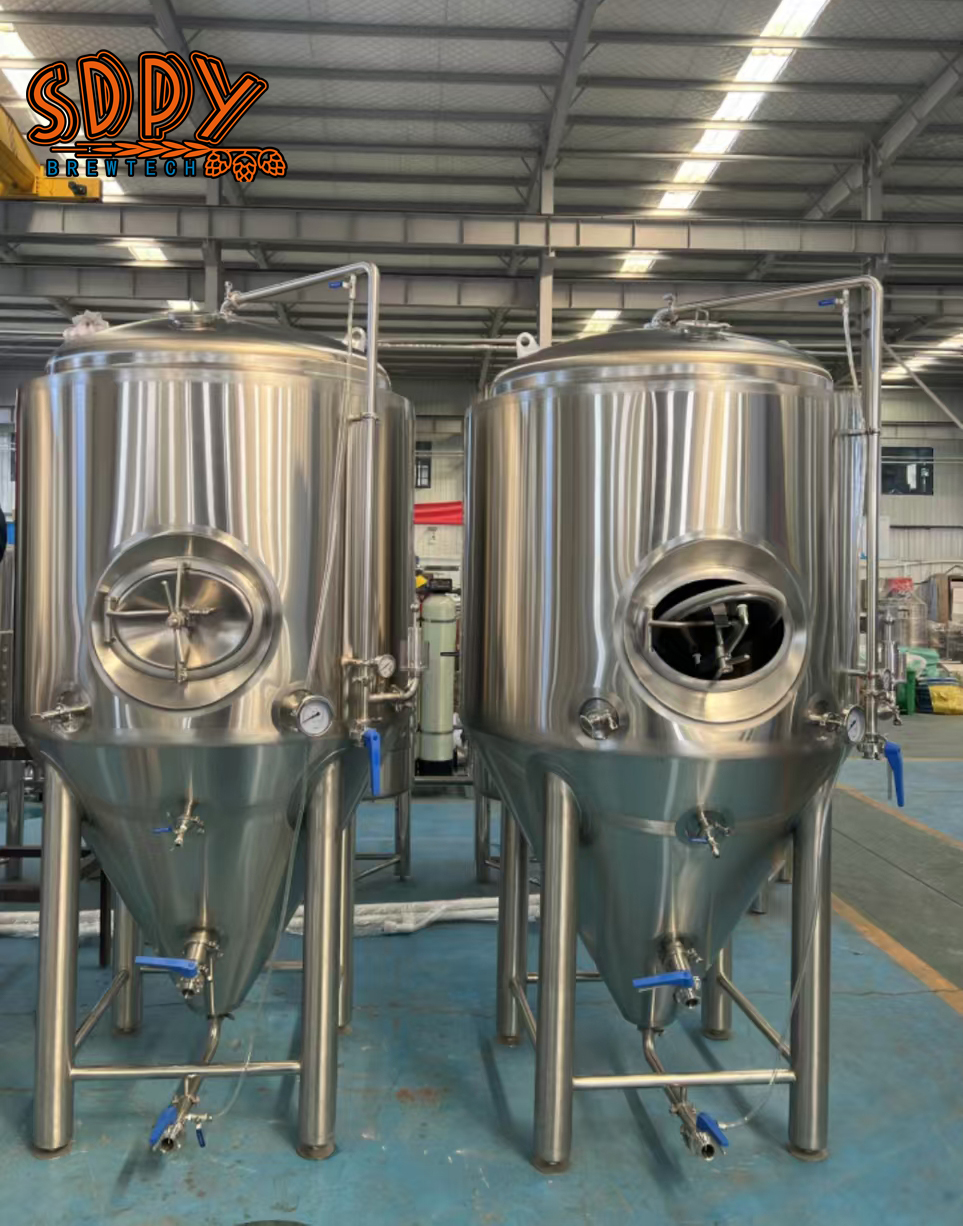

1600L Side Manhole Fermenter,1600 liter fermentation tank

1600l stainless steel fermenter, effective volume 1600liters, total volume with at least 25% head space, is made of food grade SUS304 material, Double layor insulated, with top or side manway design, 60 degree bottom cone, dish head, with pressure gauge, sample valve, pressure regulator, breather valve, all mached valves and fittings included.It is also can be customize based on your request.

Availability:

Quantity:



Inquire Add to Basket

Model:
1600L
Brand:
SDPY Brewtech

Product Description

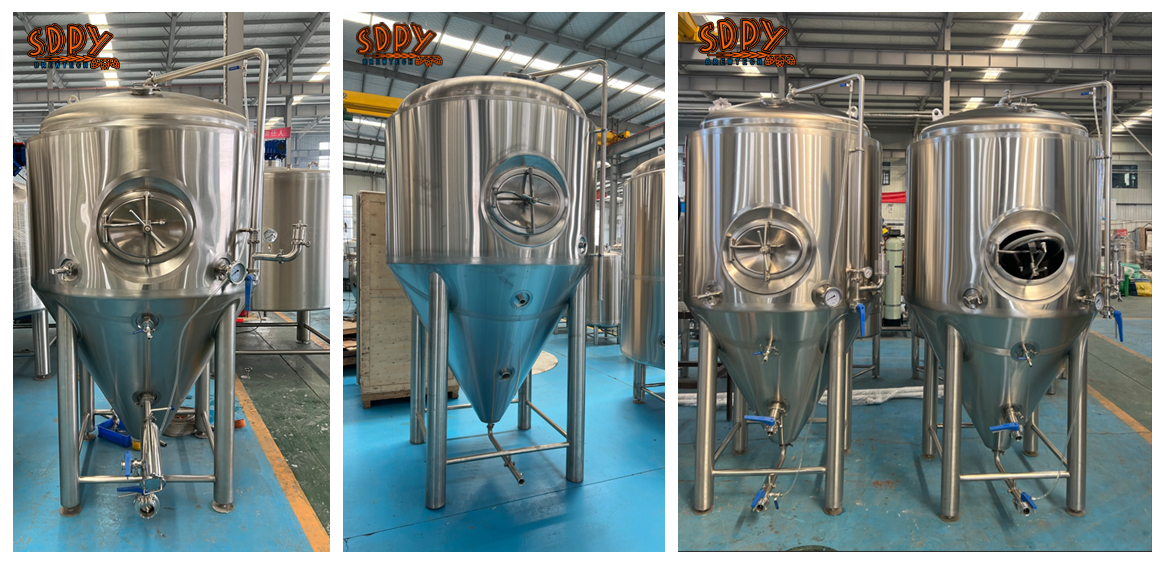

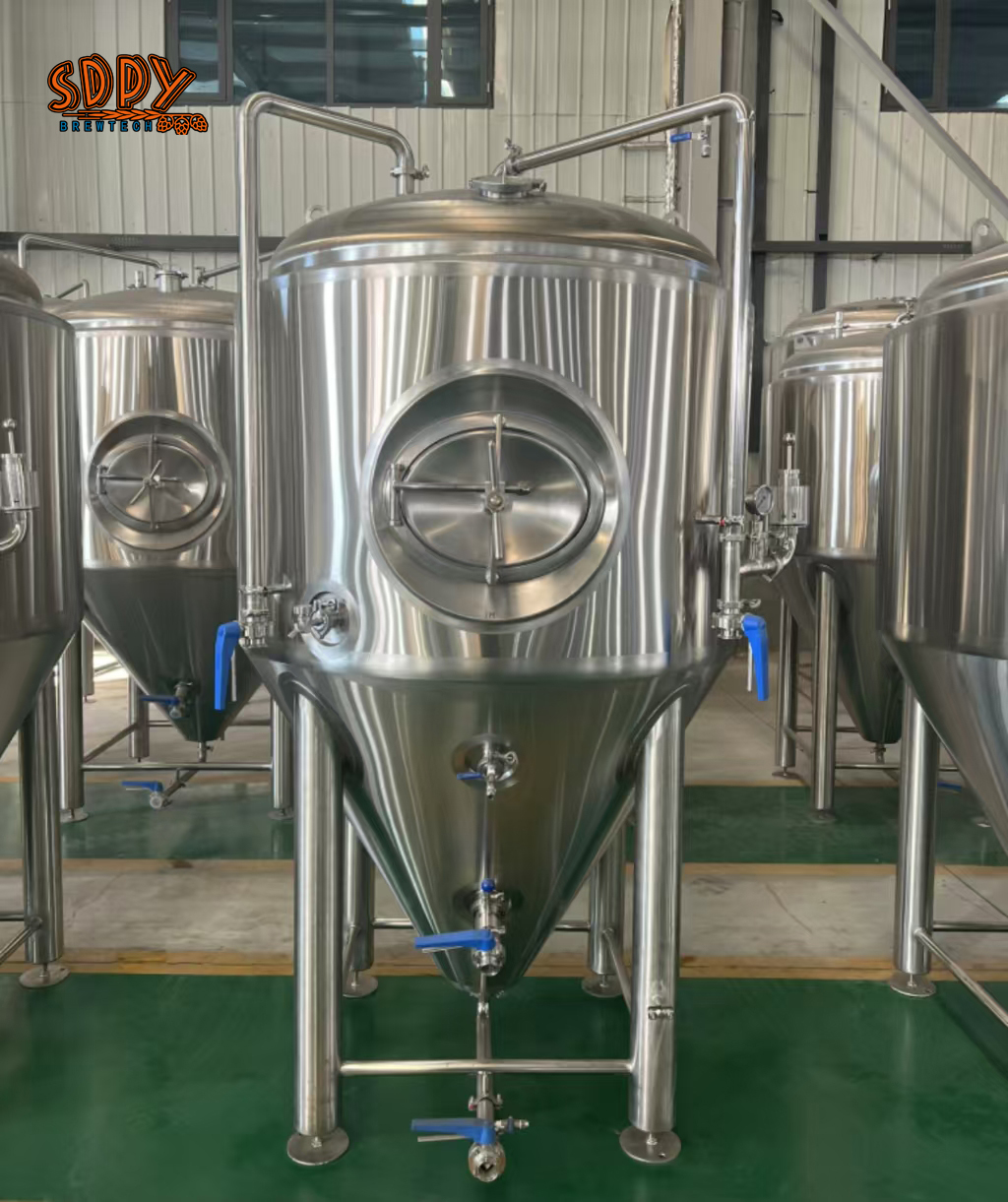

Our 1600L Stainless steel 304 Conical Beer Fermentation tanks(1600l CCTs), approved by CE/ISO/ TUV/PED certifications. 1600L SUS304 conical fermenter typically featured a cylindrical body with dish head and conical bottom.

Other features of 1600L stainless steel jacked fermenters:

Effective volume 1600liter.

Total volume 2200liter, generally with 25% head space at least;

with dimple plate cooling jacket, glycol jacket, cooling area 4.1m2;

Double wall with insulation, insulation material Polyurethane;

Top manway and side manhole both available to order;

with breather valve, pressure gauge, pressure regulator valve, sample valve etc.

with CIP wash ball and CIP arm;

100% TIG welding with pure argon;

Material stainless steel 304, 316, 316L;

Surface brush finished, inner tank mechanical polish;

with hang hooks and lift hook;
