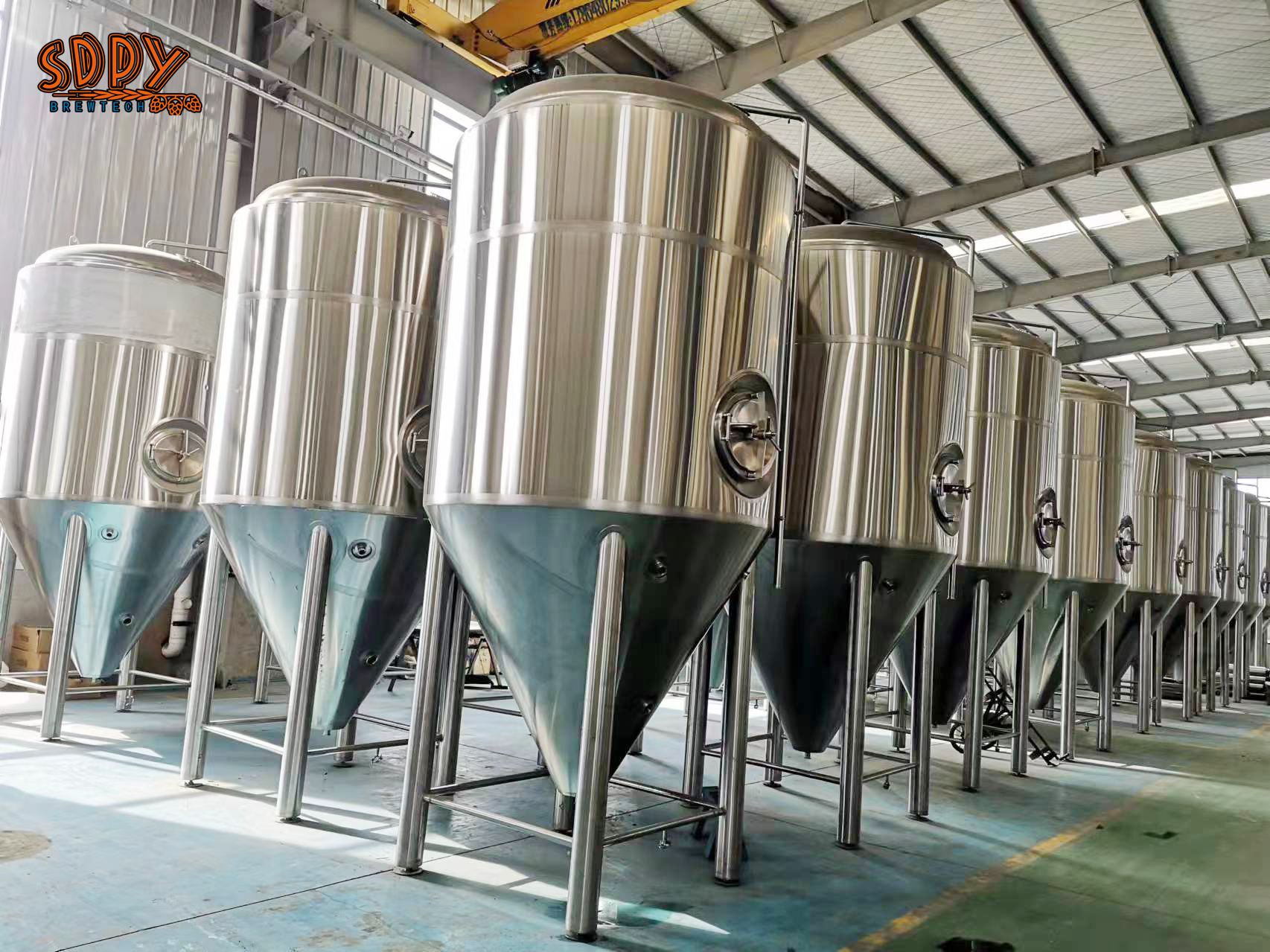

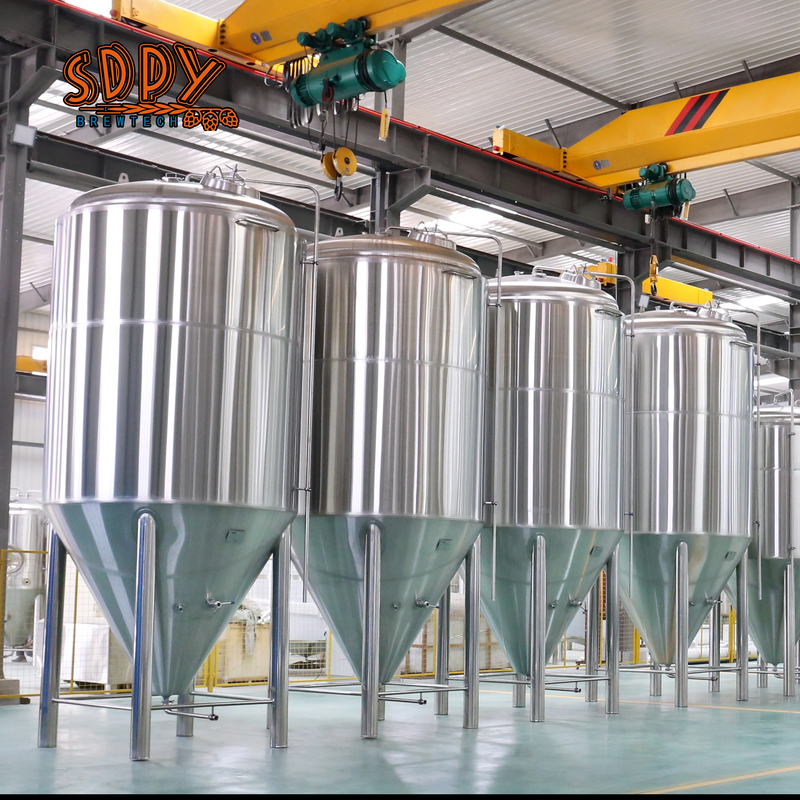

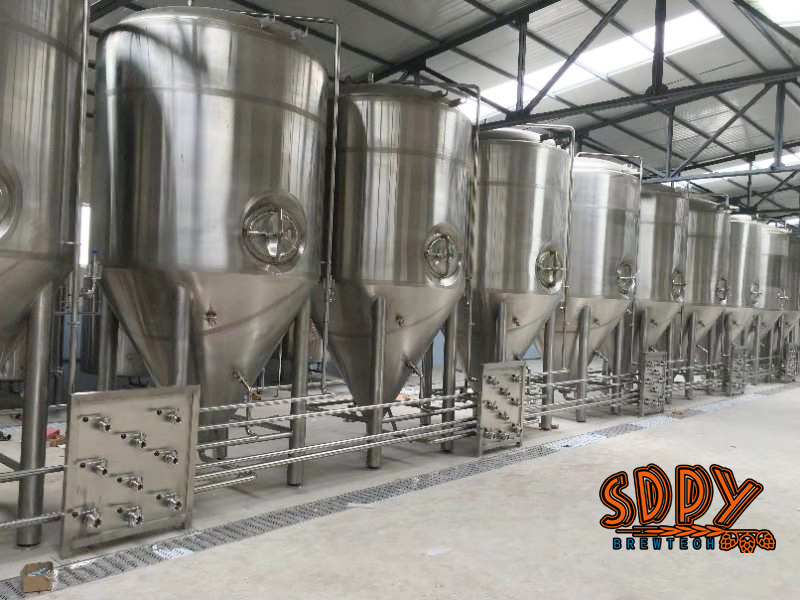

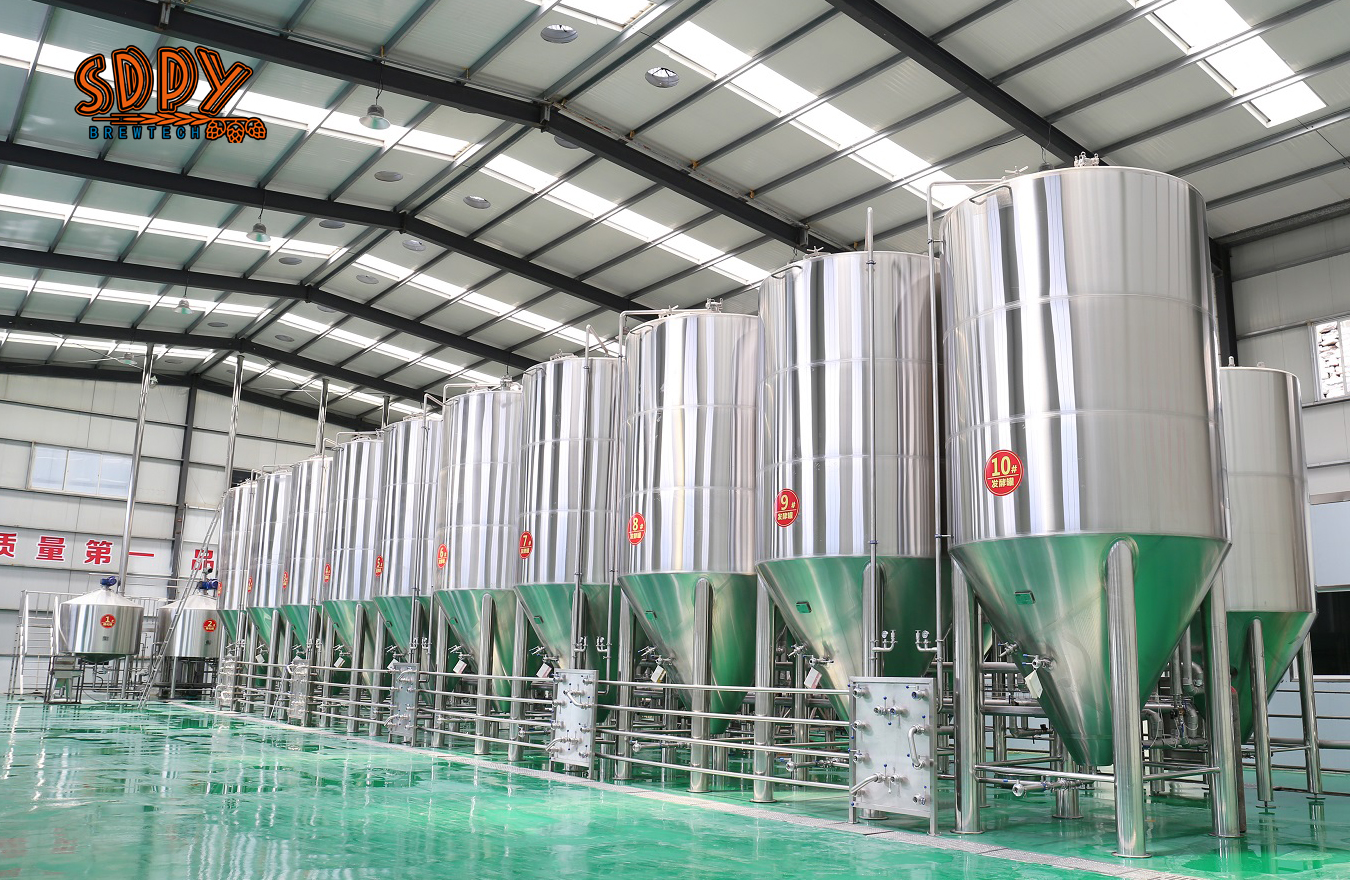

5000L&50HL&50BBL Fermentation tanks

● Effective Capacity:50HL 5000L
● Double layer tanks with insulation, or single tanks as request;
● Shape: normal designed vertical tank
● Material: ss304, ss316, ss316L
● Head space minimums 25%;
● Interior shell thickness: 3mm;
● exterior shell thickness: 2mm;
● Cooling way: dimple plate cooling jacket on tank body and cone.
● Polish: shell cladding 2B brush finished; Interior shell polish to <=0.6um or pickled and passivated; or mirror plate as request;
● Insulation material: high density polyurethane foam;
● Insulation thickness: 80-100mm depends on tank volume and local temperature
Shape: vertical tank with dish head and 60 degree conical bottom.
● With CIP arm and 360 °coverage CIP spraying ball;
● Manhole: top or side manway;

Availability:

Quantity:



Inquire Add to Basket

Model:
5000L
Brand:
SDPY Brewtech

Product Description

Technical Details of 5000 lts Fermentation Tank
No.	ITEMS	SPECIFICATION
1	Volume	5000 lts
2	size	Φ2000×H4260mm(customize, can be design base on customer place height and door size)
3	Effective volume	5000lts
4	Total volume	6520lts
5	heating area	6.9m2
6	cooling way	with glycol cooling jacket, tank body and tank bottom part both have
7	washing way	Apple type CIP spray ball(rotary);In the center of the inside tank
8	beer out way	with beer outlet and drain valve
9	welding way	Perfect argon arc welding, Welds are smooth and flat and the arrangements of welds have to be not more than Ra 0.6 μm. Inside and outside polishing processing, No welding dead corner.
10	control way	single control for unit tank
11	temperature control ways	Displace the temperature directly on the tank, display temperature from intelligent data meter
12	Temperature Measurement ways	Temperature sensor PT100,temperature display by intelligent data meter
13	Pressure control ways	CO2 pressure regular valve
14	tank cladding material	Stainless Steel SUS304
15	Material of tank cladding	Stainless Steel SUS304
16	Material of inner container	Stainless Steel SUS304
17	surface of out cladding/surface treatment	surface brushed finish
18	surface of inner container	Polishing precision≤0.6µm
19	tank cladding Thickness	2mm(customize)
20	Inner tank material	3mm(customize)
21	top Seal head	domed top
22	head thickness	3mm
23	under cone	conical cone
24	cone angle	60 degree;
25	Insulation layer material	Protected by polyurethane
26	Insulation layer Thickness	80 mm(customize,can design as per requirement)
27	tank pressure
28	test pressure	0.2Mpa(customize,can design as per requirement)
29	work pressure	0.1-0.2Mpa((customize,can design as per requirement)
30	Manhole	side manhole
31	valves and fitting	Matched valves including： 1)breather valve 2)drain valves 4)sample valves 5)beer outlet valves
32	electric instruments	relief valve; intelligent data meter
33	Parts	Food grade;
34	Packaging Detail	export standard, maximum protection, including: Wooden case, plastic film, bubble film etc.
35	Certification:	CE and ISO.
36	Graphic measurement	JUST FOR REFERENCE
