Cleaning in Place (CIP) cleaning system 100l 200l 300L etc

100L-300L CIP Trolley, you can choose 2 vessel system, or 3 tanks system, depends on what you use for cleaning and sterilization, genially clients use hot water, clean water/sterile water, alkali water, hydrogen peroxide, and acid or peracetic acid. It is used to wash and sterilize the tanks and pipe with washing solution, it is necessary equipment for breweries, wineries and beverage plants. It includes a small capacity CIP cart and big capacity CIP system.

Availability:

Quantity:



Inquire Add to Basket

Model:
50L 100L 200L300L 500L 1000L 2000L
Brand:
SDPY Brewtech

Product Description

CIP Cleaning system (CIP) plays an important role for breweries, it helps cleaning the tanks insure a clean brew environment, and good sanitary tank surface ensure brew quality pure beers.

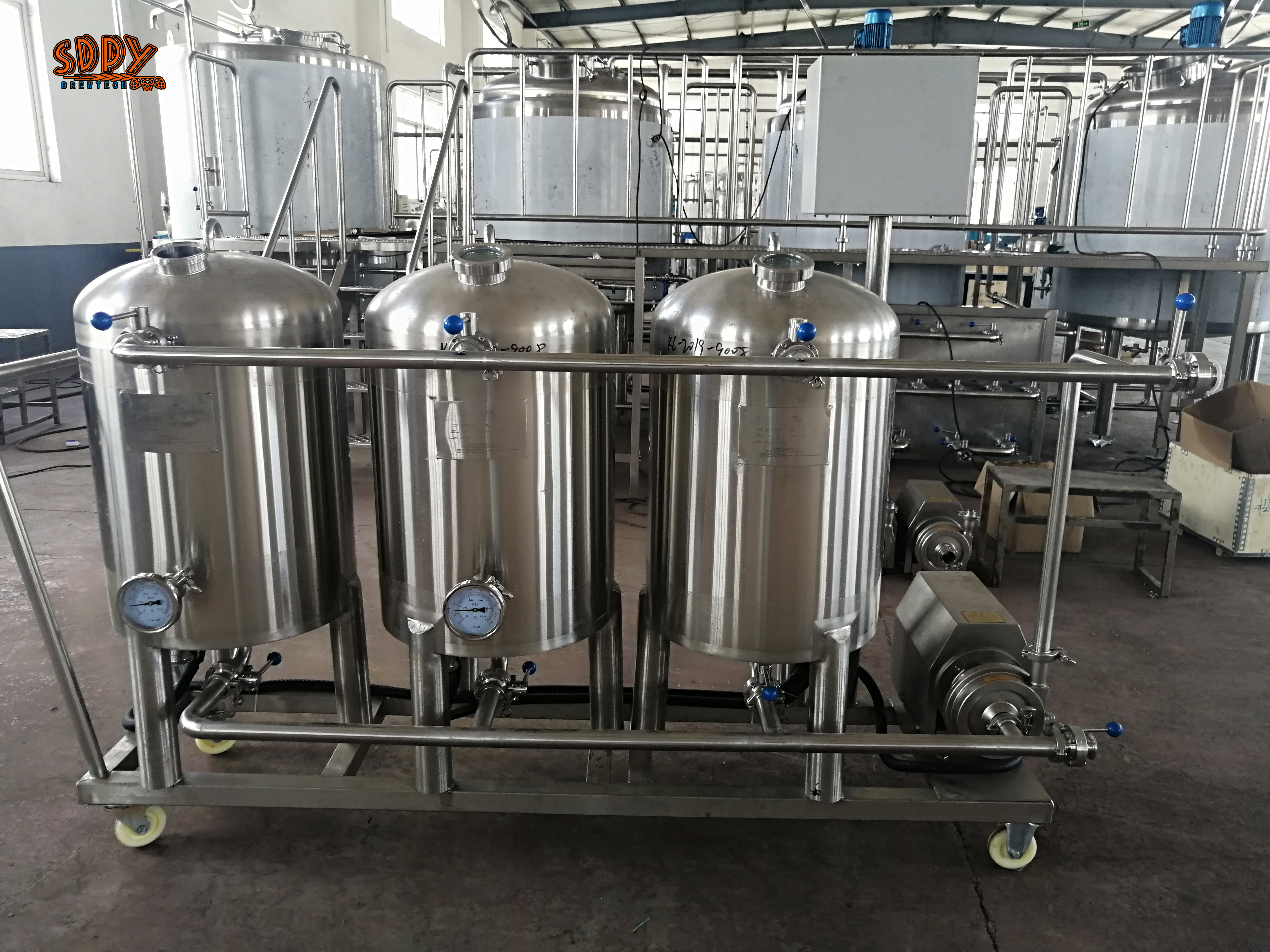

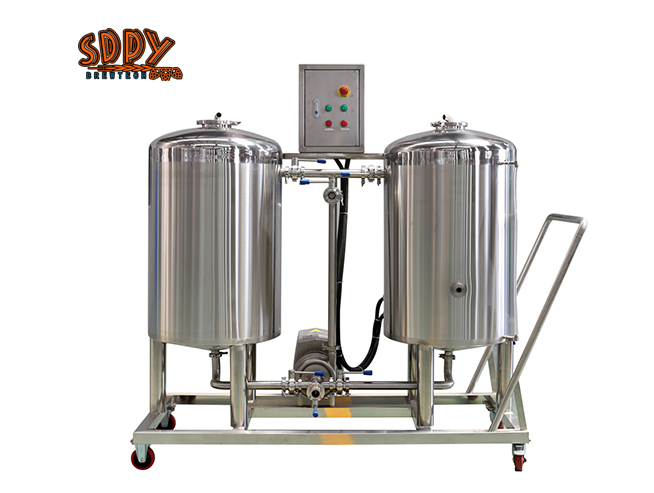

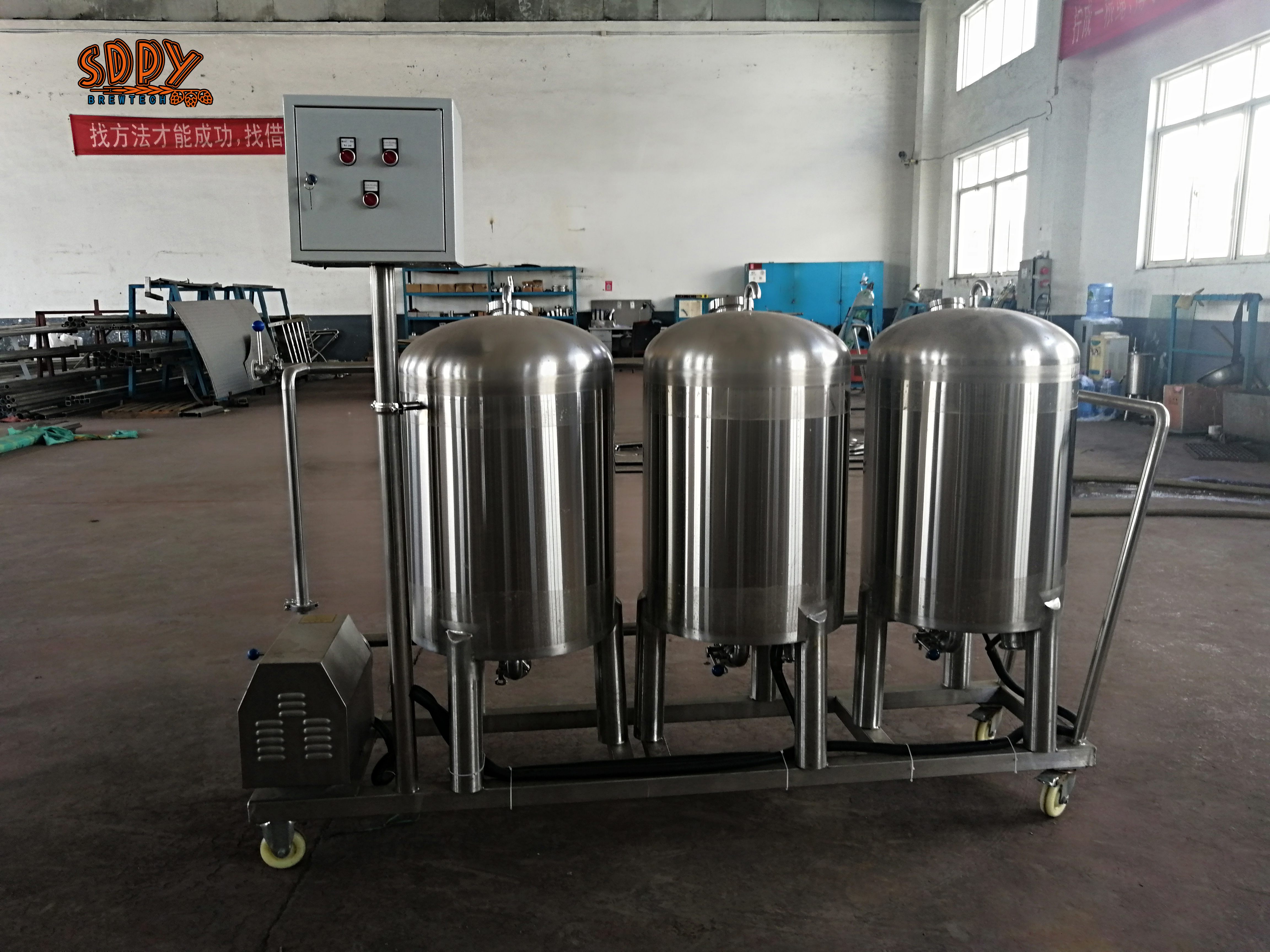

We suggest microbrewery or small production craft breweries, can use the easy type CIP trolley(2/3vessels system), including alkali tank, acid tank, sanitary grade CIP pump, this design makes all above tanks, pump, piping and valves together on a cart, a small trolley, we can design and produce based on your requirement. The CIP trolley is operated flexible and simple, which can use for various types of breweries for cleaning and disinfection that can disinfect thoroughly and have no dead angle. The CIP cleaning system can be design as manual, semi-automatic and full automatic operation base on requirement. Our product range for CIP system is 50l -5000L.

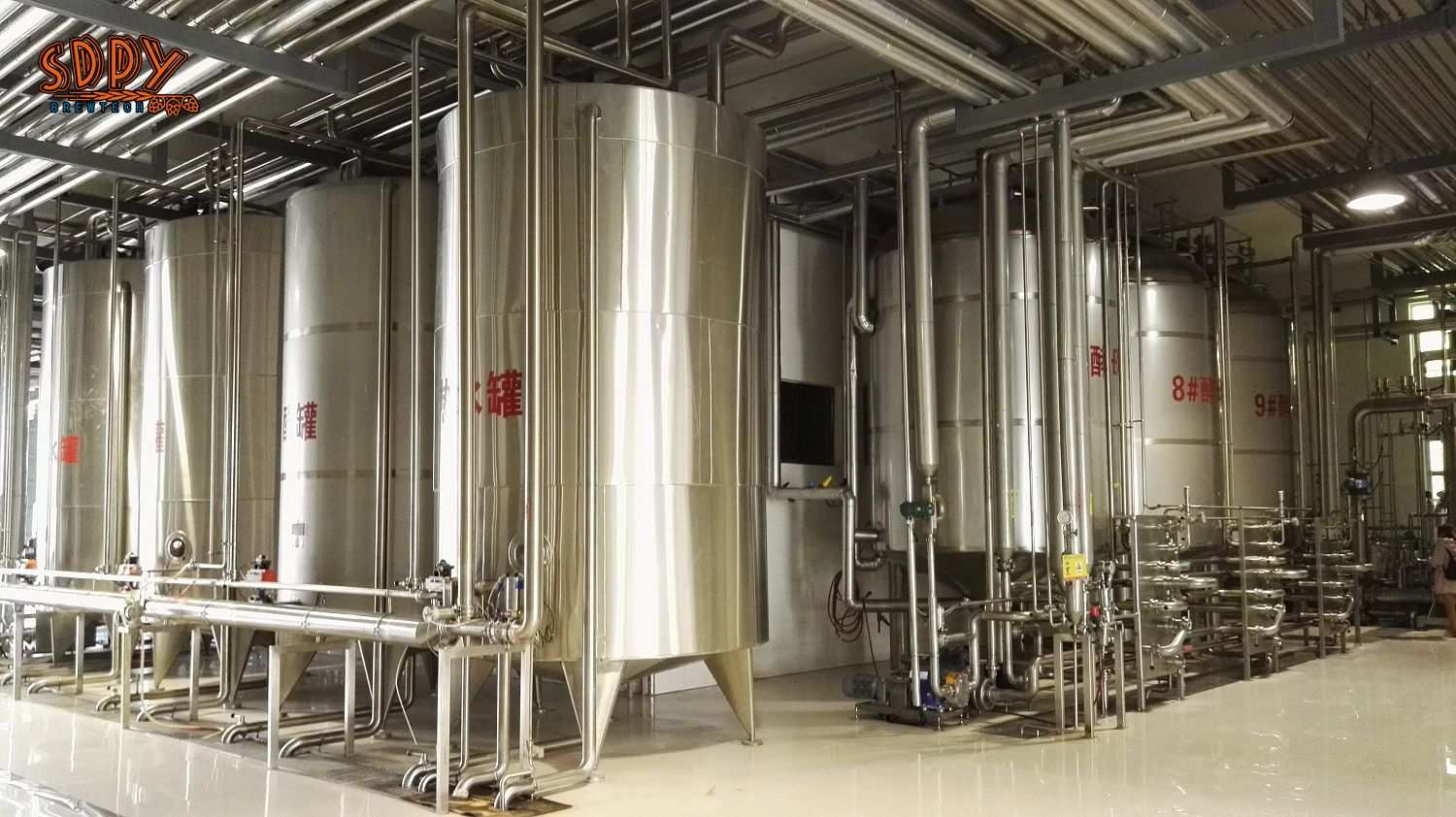

Large CIP system mainly consist of sterilization tank, caustic tank, acid tank, hot water tank, acid/caustic dosing tank, neutral tank, PH sensor, automatic control system, pipes, pumps, etc. It us installed on site. The washing process is written into the PLC as program, so the whole operation is controlled normally. It normally use for large craft breweries, and food beverage plants.

SDPY Brewtech CIP cleaning workshop is applied in the large beer plant with high output. The cleaning workshop is consisting of alkali tank and acid tank. All tanks of CIP system are made of stainless steel 304 or 316 material, the system has compact installation structure and the maintenance is very convenient, which can clean the tank and pipeline effectively, whole cleaning process is operated in a sealed production equipment, vessels and piping line so that generally reduced the second pollution opportunity, future more it is occupying small area, saving operation time, raising efficiency, saving labors, insuring operate security, saving water and steam energy, reducing scour dosage, the production equipment can realize large scale type, high automatically and extending production equipment lifetime.

Our CIP cleaning system main product
