2000L 20BBL 20HL
SDPY Brewtech

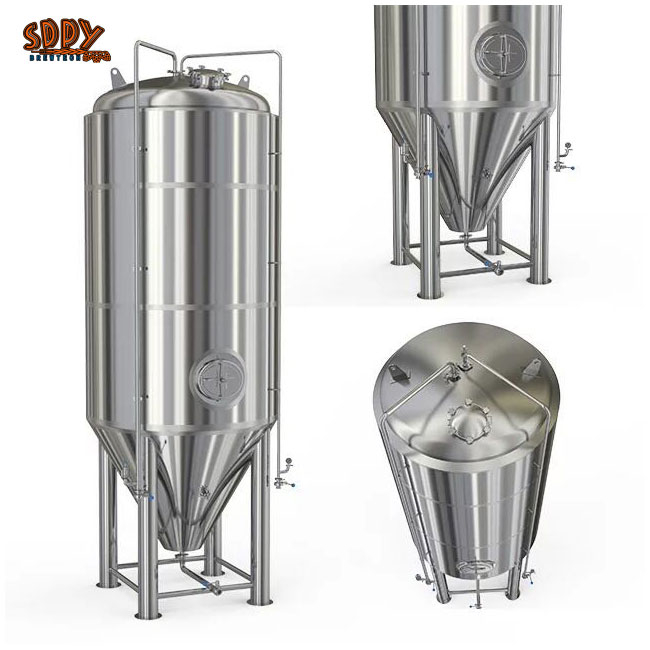

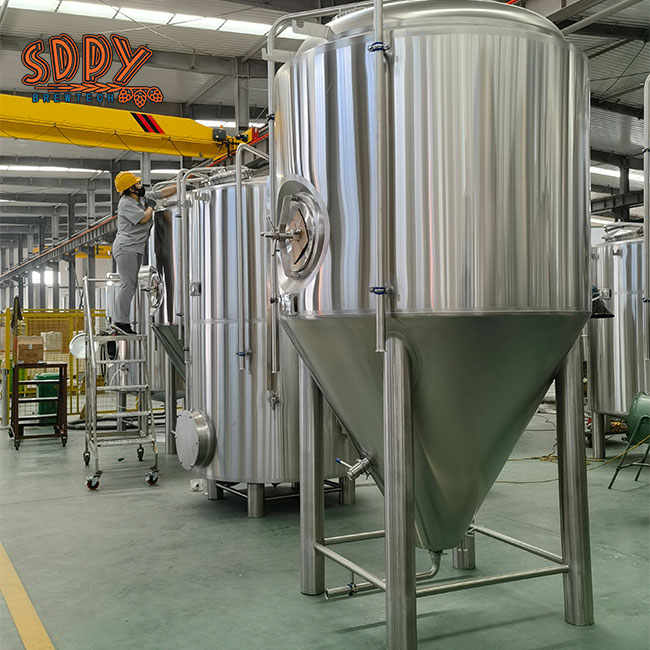

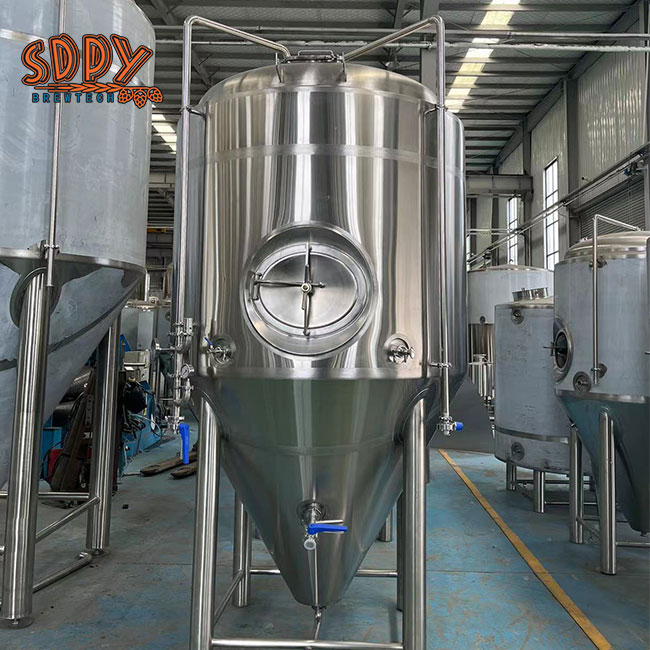

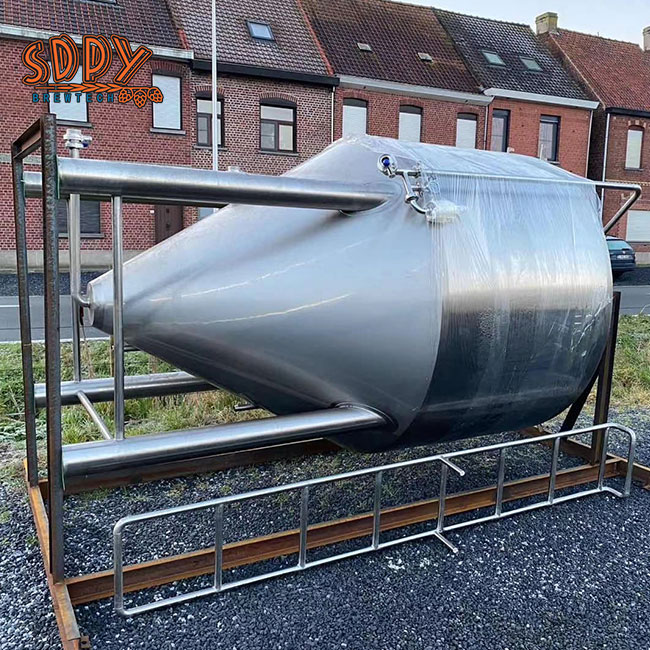

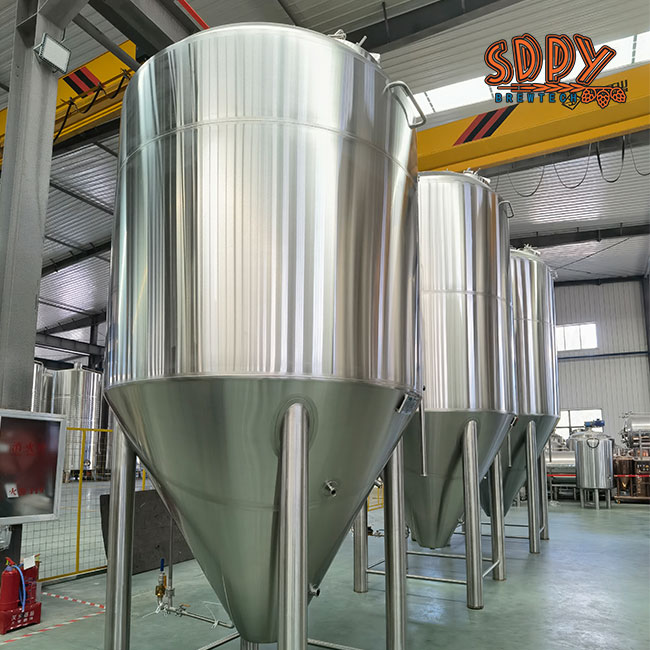

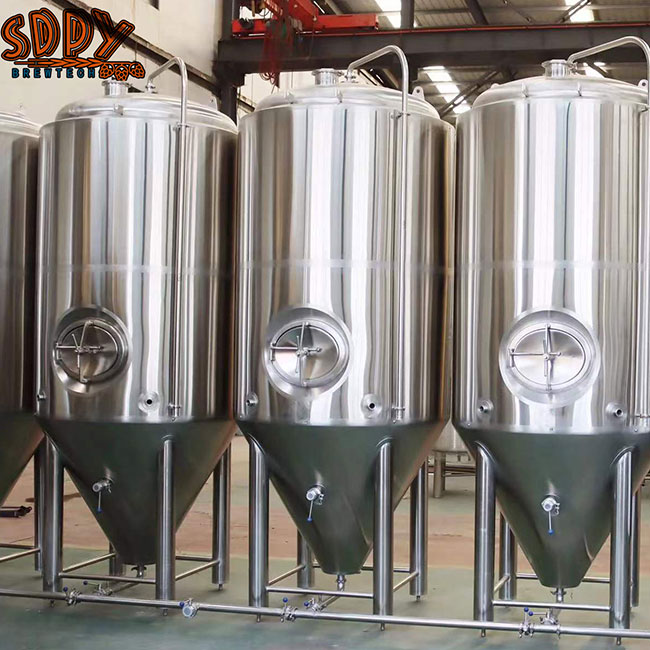

Technical Details of 2500 lts Fermentation Tank 2500l beer fermentation tanks mainly use for 2500l brewing system, for craft beer brewing and fermenting, it is conical fermenter, stainless steel tanks, people also say stainless steel fermenters, jacked fermenters, insulated fermenters, fermenting vessels, fermenting/storage tanks, fermenting/storage cellar fermentation and storage cellar etc. It usually works with 2500l brewhouse. We provide complete beer brewing system, from malt mill, to brewhouse, fermenting system, controlling system, cooling system, CIP system etc. Following just shares with you detailed specification for 2500l stainless steel 304 fermenters, if you have some idea on the specification, please kindly note us, we can customize your tanks based on request. | ||
No. | ITEMS | SPECIFICATION |
1 | Volume | 2500 liters |
2 | size | Φ1700×H3240mm (customize, can be design base on customer place height and door size) |
3 | Effective volume | 2500lts |
4 | Total volume | 3330lts |
5 | heating area | 3.6m2 |
6 | cooling way | with glycol cooling jacket, tank body and tank bottom part both have |
7 | washing way | Apple type CIP spray ball(rotary); In the center of the inside tank |
8 | beer out way | with beer outlet and drain valve |
9 | welding way | Perfect argon arc welding, no welding dead corner. |
10 | control way | 1.single control for unit tank, 2. PLC control Prefer 1 or 2? |
11 | temperature control ways | 1. Displace the temperature directly on the tank, display temperature from intelligent data meter 2. show temperature on touch screen of the control cabinet Prefer 1 or 2? |
12 | Temperature Measurement ways | Temperature sensor PT100, temperature display by intelligent data meter |
13 | Pressure control ways | Mechanical type pressure regular valve/ air lock |
14 | tank cladding material | Stainless Steel SUS304, brushed finished |
15 | Material of tank cladding | Stainless Steel SUS304 |
16 | Material of inner container | Stainless Steel SUS304 |
17 | surface of out cladding/surface treatment | surface brushed finish |
18 | surface of inner container | Polishing precision≤0.6µm |
19 | tank cladding Thickness | 2mm(customize) |
20 | Inner tank material | 3mm(customize) |
21 | top Seal head | domed top |
22 | head thickness | 3mm |
23 | under cone | conical cone |
24 | cone angle | 60 degrees; |
25 | Insulation layer material | Protected by polyurethane |
26 | Insulation layer Thickness | 80 mm (customize, can design as per requirement) |
27 | tank pressure | |
28 | test pressure | 0.2Mpa (customize, can design as per requirement) |
29 | work pressure | 0.1-0.2Mpa ((customize, can design as per requirement) |
30 | Manhole | side manhole |
31 | valves and fitting | Matched |
32 | electric instruments | relief valve; intelligent data meter |
33 | Parts | Food grade; |
34 | Packaging Detail | export standard, maximum protection, including: Wooden case, plastic film, bubble film etc. |
35 | Certification: | CE and ISO. |
