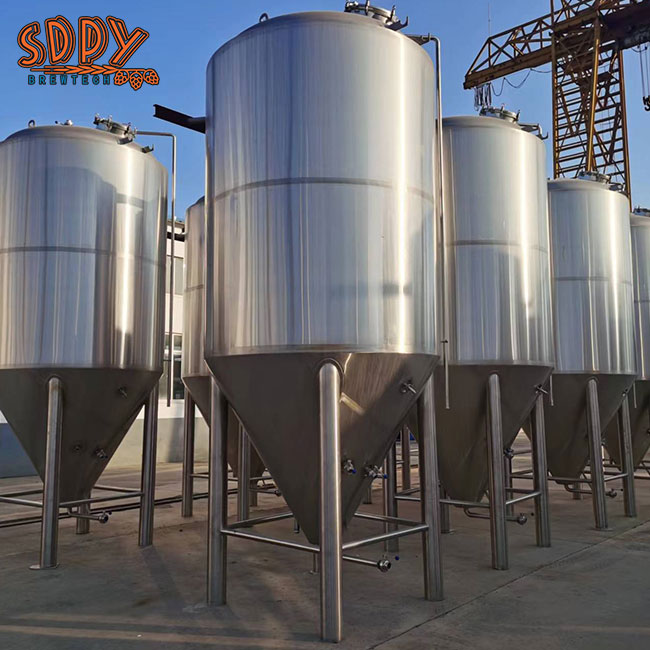

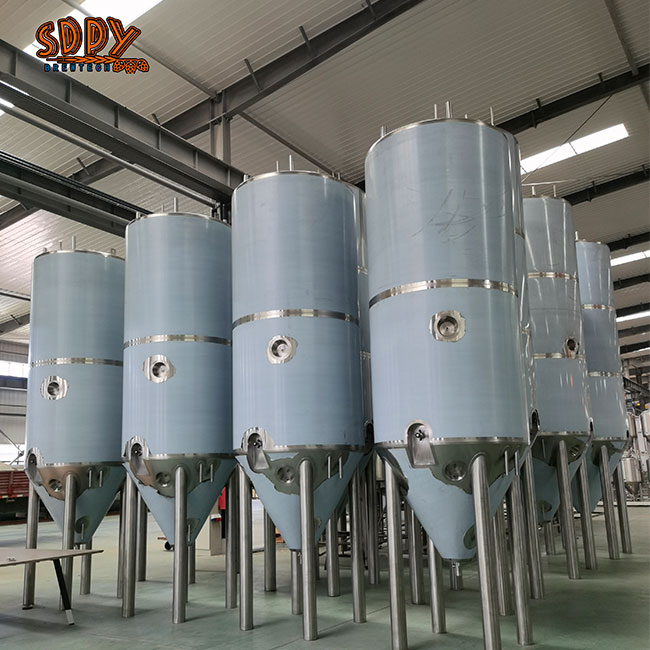

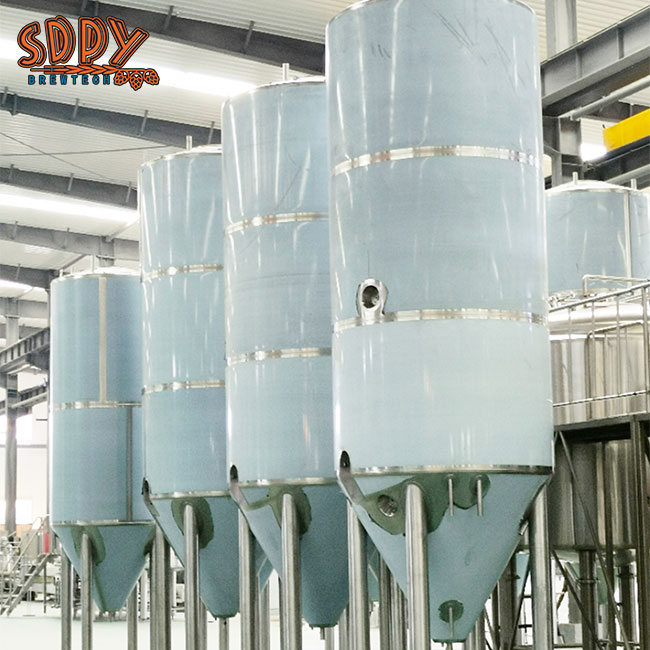

6000L&60HL&60BBL Fermentation tanks

No.

ITEMS

SPECIFICATION

1

Volume

6000 lts

2

size

Φ2000×H4930mm(customize,   can be design base on customer place height and door size)

3

Effective   volume

6000lts

4

Total   volume

6800lts

5

heating   area

8.4m2

6

cooling   way

with   glycol cooling jacket, tank body and tank bottom part both have

7

washing   way

Apple   type CIP spray ball(rotary);In the center of the inside tank

8

beer out   way

with   beer outlet and drain valve

9

welding   way

Perfect   argon arc welding, tank inner surface not more than 0.6 μm. Tank surface   brushed finished. No welding dead corner. Weld place polish with polish belt.

10

control   way

single   control for unit tank, plc control choosable

11

temperature   control ways

Display   the temperature directly on the tank, display temperature from intelligent   data meter;

If you   want show other place, please note.

12

Temperature   Measurement  ways

Temperature   sensor PT100,

temperature   display by intelligent data meter

show on   touch screen available also.

13

Pressure   control ways

CO2   pressure regular valve

14

tank cladding   material

Stainless Steel   SUS304

15

Material   of tank cladding

Stainless Steel   SUS304

16

Material   of inner container

Stainless Steel   SUS304

17

surface   of out cladding/surface treatment

surface   brushed finish

18

surface   of inner container

Polishing precision≤0.6µm

19

tank cladding   Thickness

2mm(customize)

20

Inner tank   material

3mm(customize)

21

top   Seal head

domed   top

22

head   thickness

3mm

23

under   cone

conical   cone

24

cone   angle

60   degree;

25

Insulation layer   material

Protected by polyurethane

26

Insulation layer   Thickness

100 mm(customize,can   design as per requirement)

27

tank   pressure

28

test   pressure

0.2Mpa(customize,can   design as per requirement)

29

work   pressure

0.1-0.2Mpa((customize,can   design as per requirement)

30

Manhole

side   manhole

31

valves and   fitting

Matched
  valves including：
  1)breather valve
  2)drain valves
  4)sample valves
  5)beer outlet valves

32

electric   instruments

relief   valve; intelligent data meter

33

Parts

Food   grade;

34

Packaging   Detail

export   standard, maximum protection, including: Wooden case, plastic film, bubble   film etc.

35

Certification:

CE and   ISO.

36

Graphic measurement

JUST FOR   REFERENCE
