single head type, double head type etc
SDPY Brewtech
This keg filling machine is designed for the filling work of all kinds of beer refreshing containers (including stainless steel refreshing keg and draught beer kegs).
The keg filler machine adopts the patent technology of the isobaric pressure filling. The whole filling process is controlled automatically by SIMENS PLC, which is very easy and stable. You just need to put keg on the filler, and then press the button. The filling work will be finished automatically. The machine is made by excellent SUS304, and all the pipes, connections, pumps are sanitary. Superior quality of corrosion proof, long-life for use. No doubt it is the necessary machine for the brewery.
Technical parameters for the double head keg washer
Air pressure: 0.6----0.8Mpa
Beer source pressure: 0.2----0.3Mpa
CO2 pressure: 0.2----0.3Mpa
Cylinder pressure: 0.4----0.5Mpa
voltage 220V50HZ
Features of simple operation
Firstly, you put the keg on platform and press the keg tightly using filling head. Before filling beer, it will fill CO2 to the empty keg so that the beer foam can be largely decreased and keep beer stable when beer is filled. When the keg is full, the liquid level inspector will send a message to PLC. The filling will stop automatically
Choose your prefer Capacity machine:

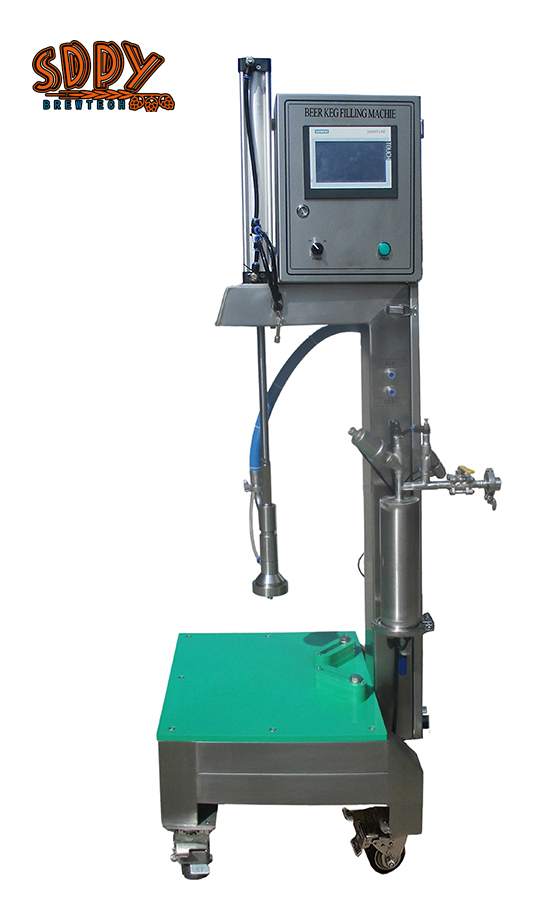

1). Single head keg filler capacity 30-70 kegs/H
Filling style: upright filling Kegs’ size (mm):
Diameter: betweenф250~500
Height: between 410~650mm

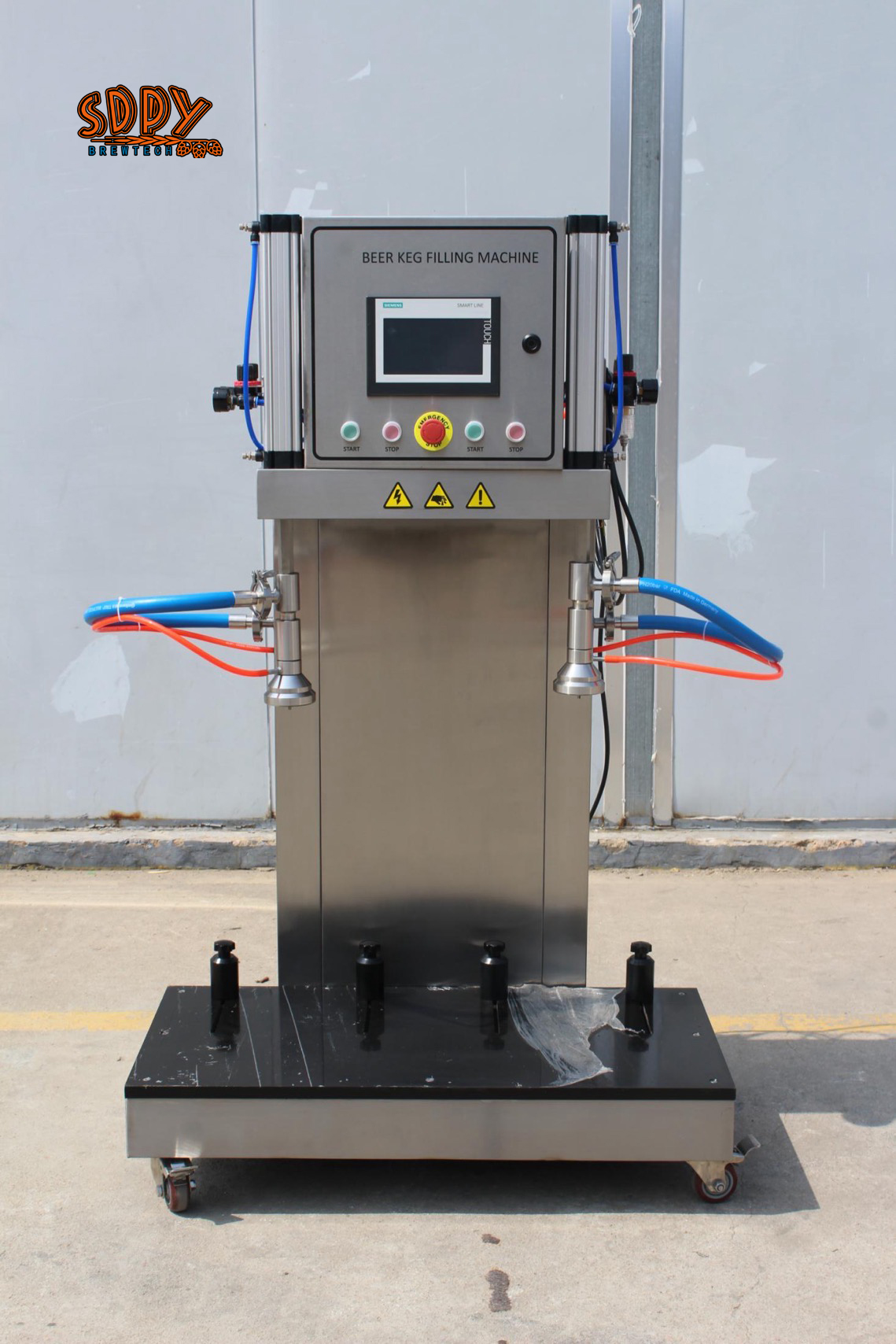

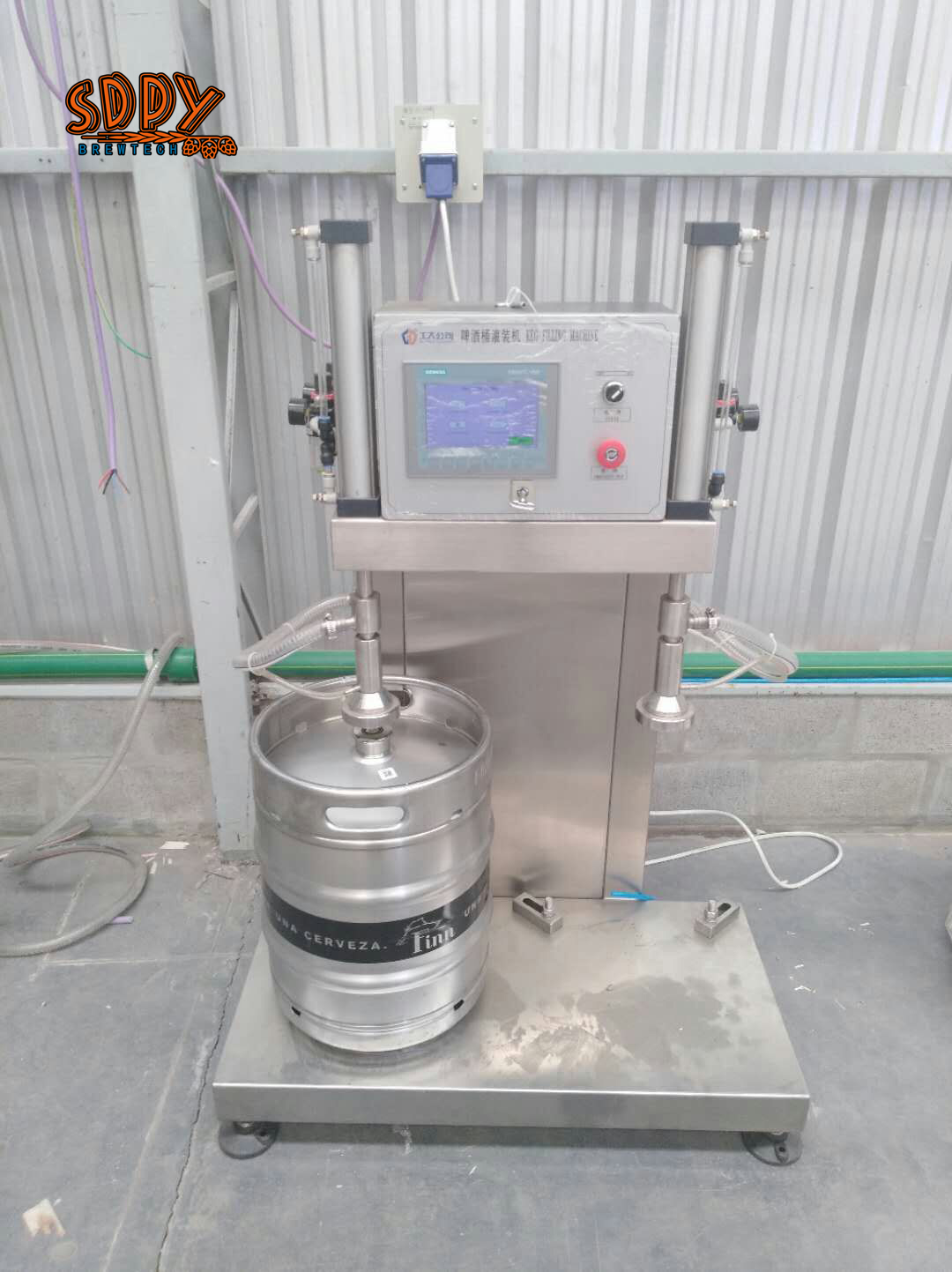

2). Double head keg filler, capacity 50-140kegs/H
Filling style: upright filling Kegs' size (mm):
Diameter: between ф250~500
Height: between 410~650mm
Technical details for keg filler ordered by our client from South America
No | Name | Size | Quantity | Technical details |
1 | Keg filler | double head 50-140kegs/hour | 1set | 1. Standard design 2. With touch screen and PLC 3. For fill stainless steel kegs: 1). stainless steel kegs, Euro standard with G type spears 20L (40mm*26mm diameter*keg height) 30L (40mm*34mm diameter*keg height) 50l(40mm*53mm diameter*keg height) 2). Stainless steel kegs, DIN standard 30L (36mm*39mm diameter*keg height) 50l(36mm*60mm diameter*keg height) 4. Design based on client electric info 380V 50HZ 5. Main specification and size: Worktable size: 960mm x 480mm Worktable height: 160mm Machine outside measurement: 960mm x600mm x1530mm Piston maximum stoke: 300mm Net weight: 106kg Ability: 50 ~140kegs/hour Filling style: upright filling |
