1000L&10HL&10BBL brewery system

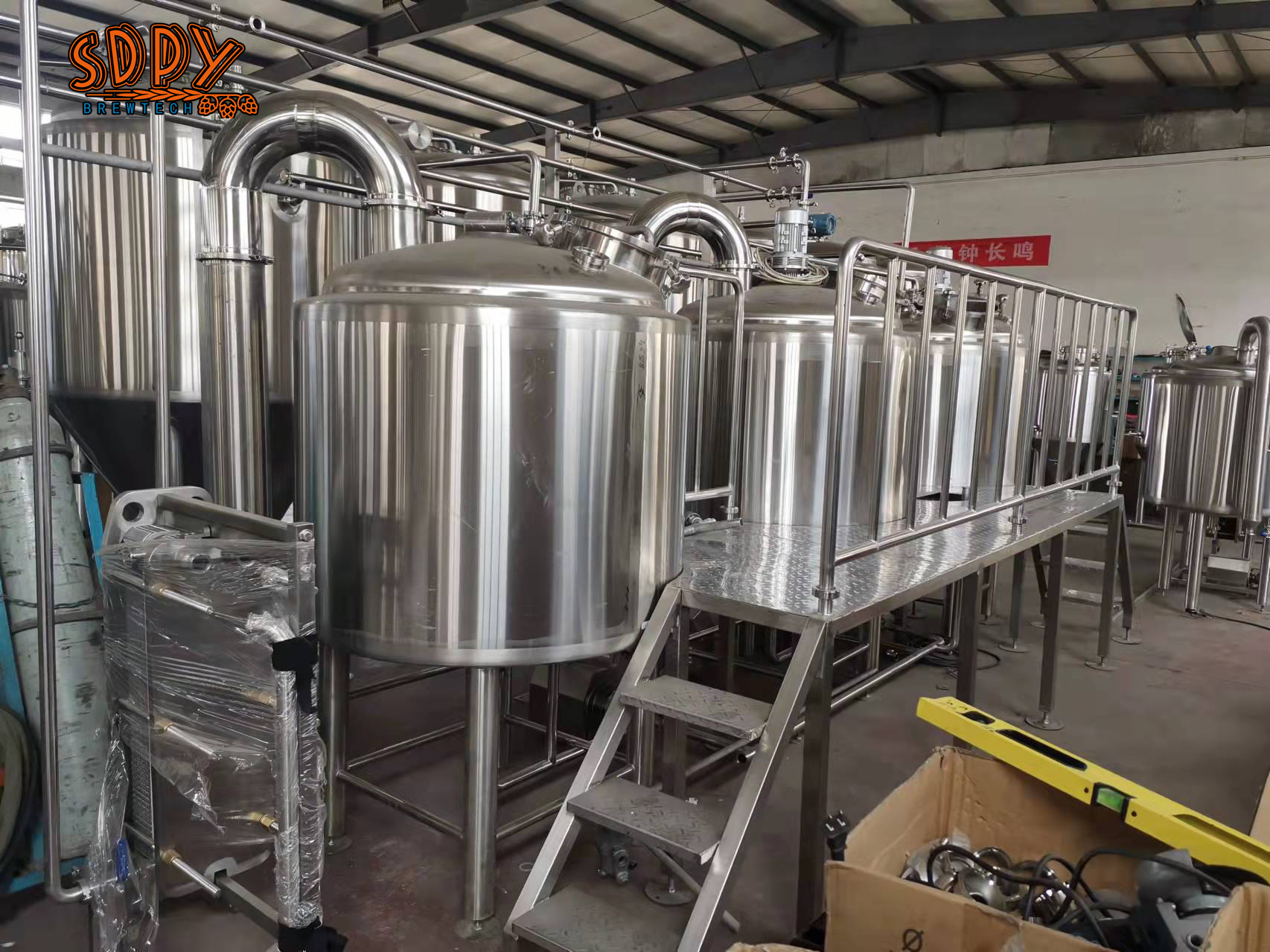

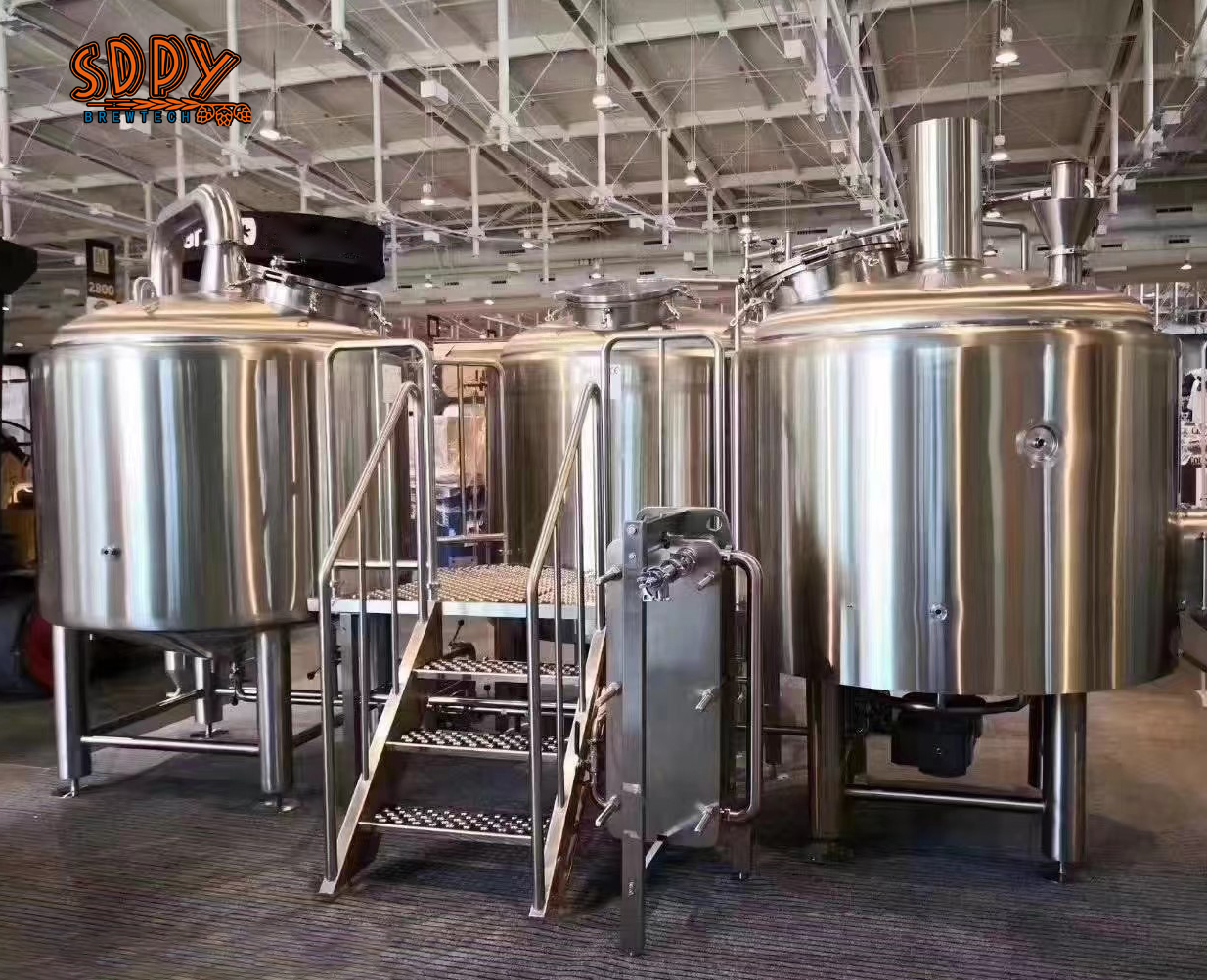

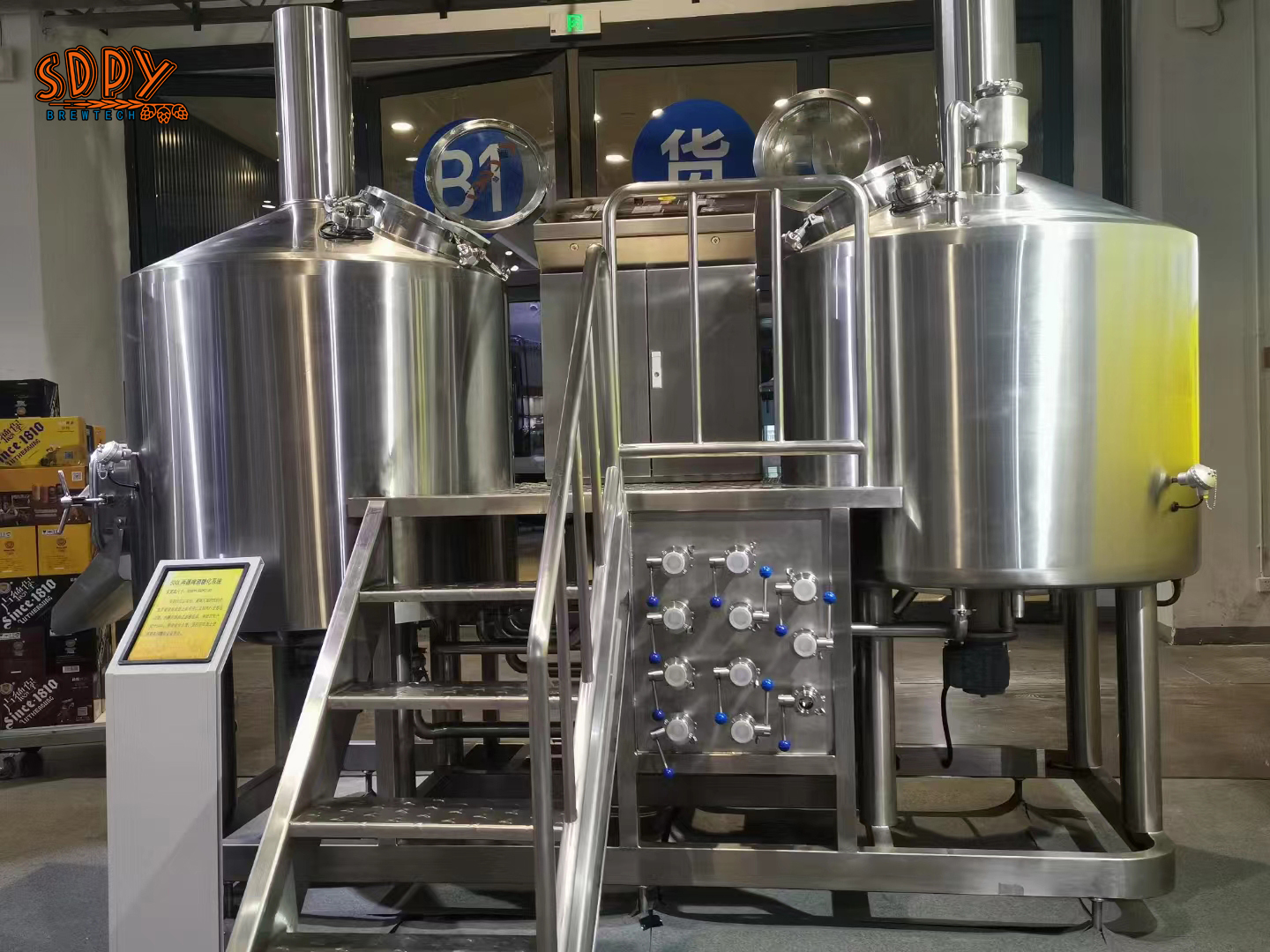

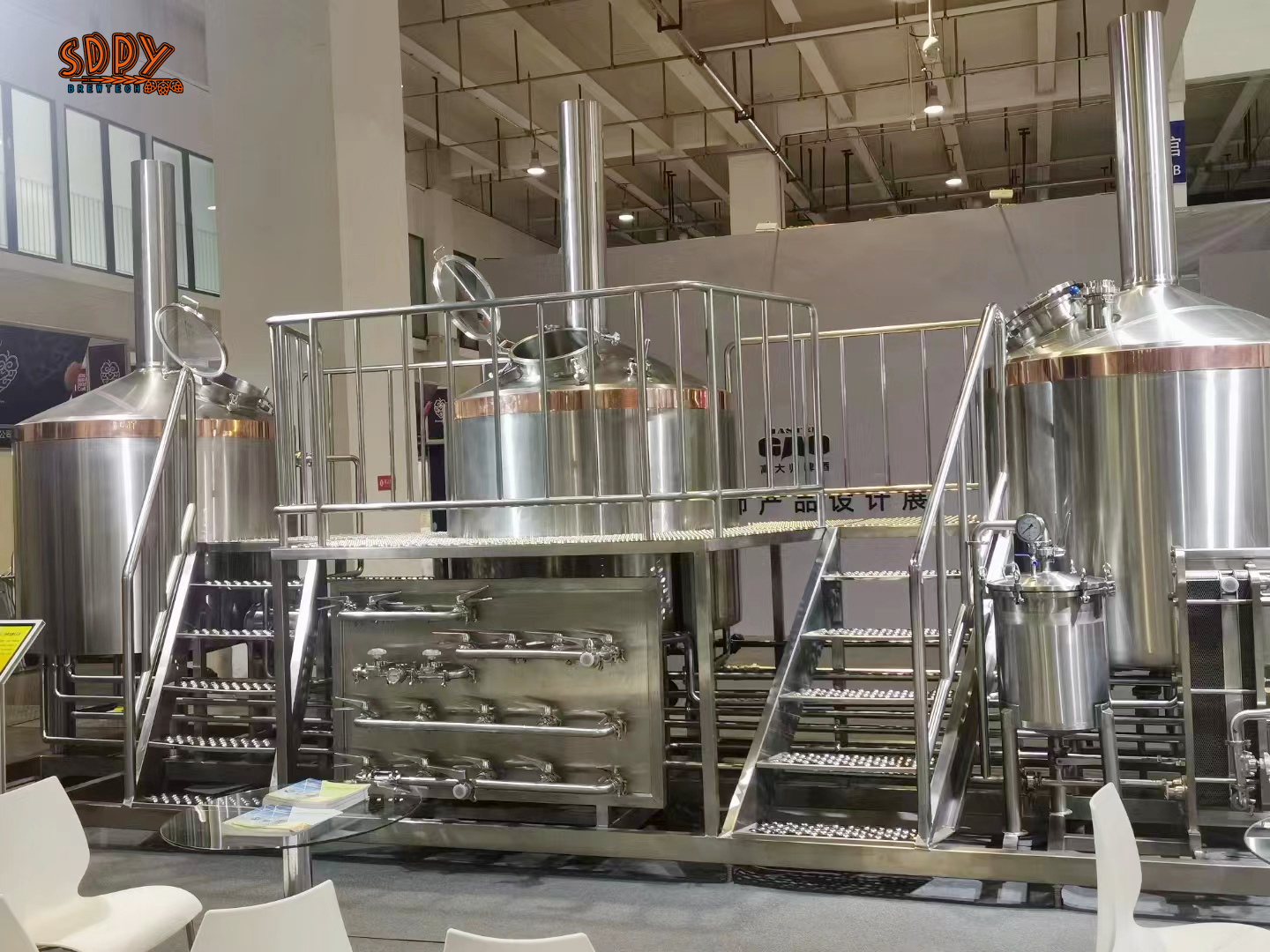

1000L Mash system (MASH TUN, LAUTER TUN, KETTLE, WHIRLPOOL), brewhouse equipment, 2-3-4 vessels system can be ordered, with 304 material, steam heating, equipped with quality plate heat exchange, platform, piping’s.

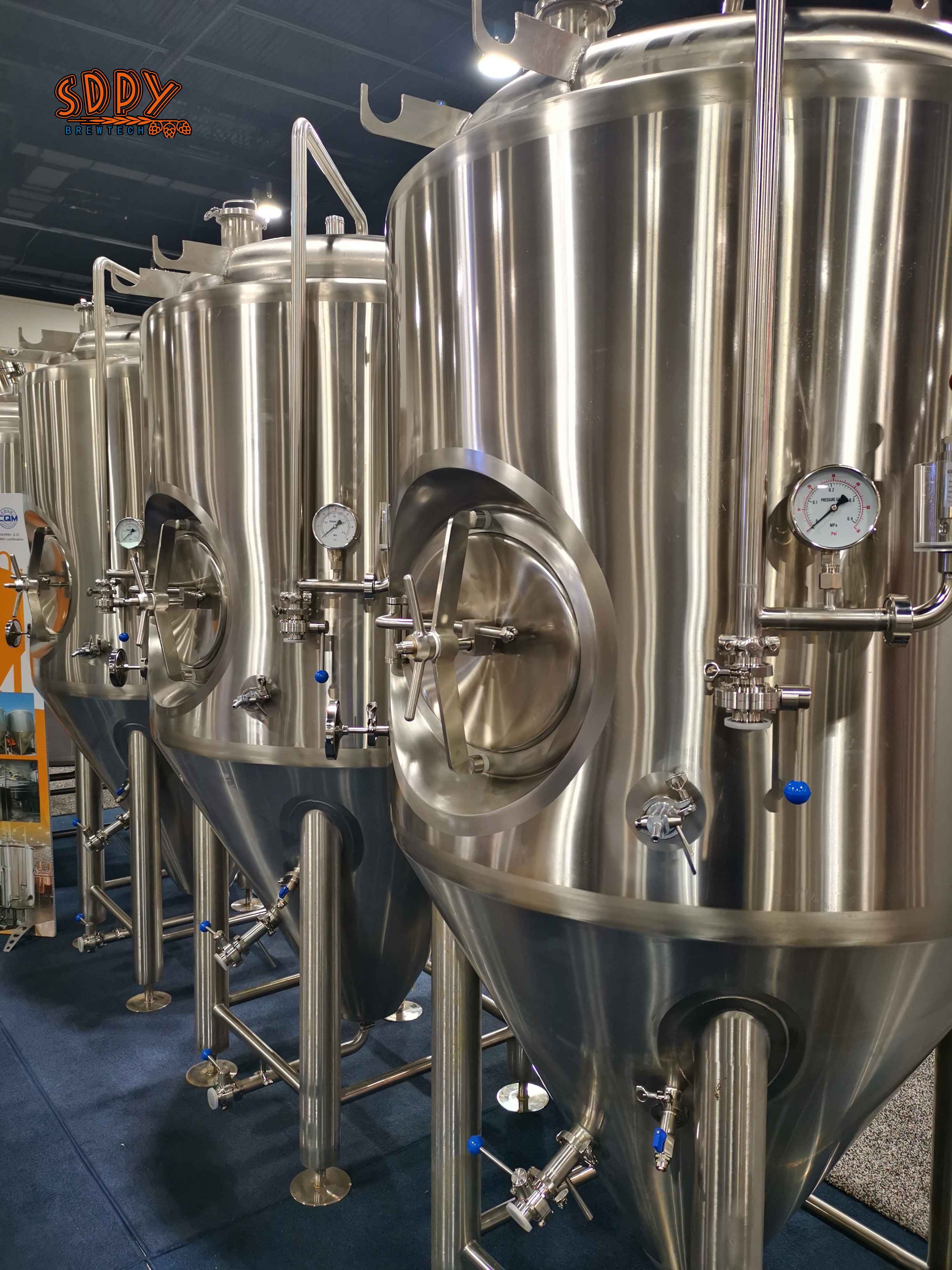

Fermentation system mainly consist of fermentations tanks/fermenters, Brite beer tanks, control panel, yeast dosing tank, beer hose, transfer pumps and matched piping, valves and fittings, it can used for different kinds of strains and raw material brewing, wort fermenting and yeast metabolism controlling in the whole process. Based on fermentation period and production request, you can decide the fermenters quantity you prefer.

All the fermenting tanks adopt dimple plate, arch channels and fluting channel etc. to exchange heat. There are many pipe lines between the fermentation tanks, such as washing pipelines, material pipelines, cooling medium circumfluence pipelines and CO2 pipeline.

With the help of PLC auto-control system, the equipment can reach to automatic and semi-automatic control. This guarantees the accuracy of the process parameters and good brew result.

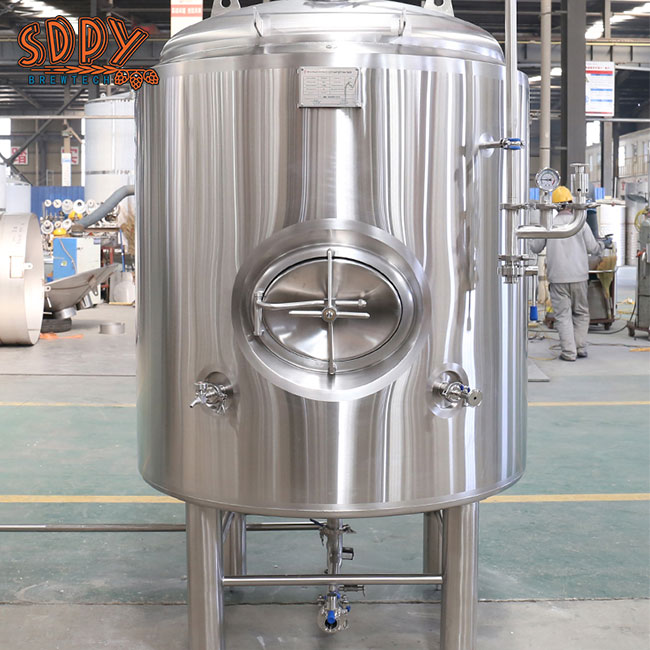

Bright beer tanks deign mostly same with fermenters, beside cone bottom, high request pressure, carbonation stone, or sometimes different shape request like horizontal or stacked design.

Beside the standard design, we can custom all your tanks volume or shape, if you have some idea, no hesitate note us.

Tanks design and features for Fermenters and Brighter beer tanks:

● Capacity:1000L

● Double layer tanks with insulation, or single tanks as request;

● Shape: normal designed vertical tank, stacked tanks, horizontal tanks (BBT) available;

● Material: ss304, ss316, ss316L

● Head space minimums 25%;

● Interior shell thickness: 3mm;

● exterior shell thickness: 2mm;

● Cooling way: dimple plate cooling jacket on tank body and cone.

● Polish: shell cladding 2B brush finished; Interior shell polish to <=0.6um or pickled and passivated; or mirror plate as request;

● Insulation material: high density polyurethane foam;

● Insulation thickness: 100mm depends on tank volume and local temperature

Shape: vertical tank with dish head and 60-degree conical bottom.

● With CIP arm and 360 °coverage CIP spraying ball;

● Manhole: top or side manway;

● Co2 blow-off arm with butterfly valves;

● Carbonation stone (based on request for fermenters)

● With beer outlet and drain outlet; racking arm beer outlet or bottom beer outlet depends on request.

● Tank feet adjustable

● Package: iron frame or iron box based on transport way

● Control: PLC or PID control

● Temperature measure: thermowell for high accuracy temperature sensor, PT 100 Probe

● Other: with matched valves like breather valve, sample valve, pressure regulator, pressure and anti-vacuum valve etc.;

● Sanitary level tube and butterfly valves;

● Suitable for such fields as foods, dairy, beer, fruit wine, beverage, medicine chemical or bio-engineering project, etc.

● ISO9001 and CE certified

● Fully welded for interior shell and exterior shell;

● 100% TIG weld and sanitary polishing
