4000L&40HL&40BBL Fermentation tanks

Vertical jacket stainless steel fermenter, conical tanks, total volume: 4888L, effective volume: 4000L, dimension Φ1800×H3906mm, with ultra-precise welding and polishing, complete traceability, validated material quality and all international sanitary standard.

Availability:

Quantity:



Inquire Add to Basket

Model:
4000L 40BBL 40HL
Brand:
SDPY Brewtech

Product Description

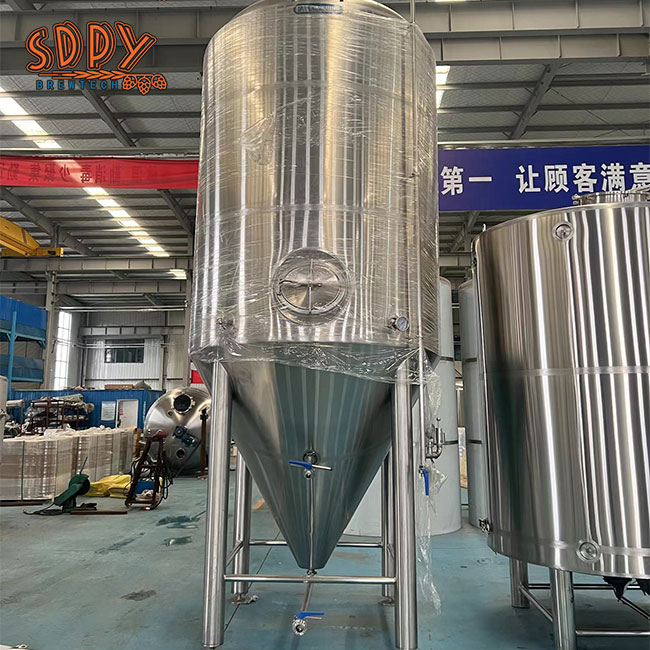

4000L&40HL&40BBL beer fermentation tanks, Vertical jacket stainless steel fermenter, 4000l conical tanks, total volume: 4888L, effective volume: 4000L, dimension Φ1800×H3906mm, can also produce and design based on request, CE& ISO approved

More Technical details for 4000l beer fermentation tanks

No

Name

Size

Quantity

Material

Technical Parameters

01

Fermentation tanks

4000L

1 piece

Stainless steel SUS304

1. Stand type
2. Total volume: 4888L, effective volume: 4000L,
3. Size: Φ1800×H3906mm

(we can adjust based on brewery place height)
4. Double wall, with dimple plate cooling jacket; cooling area 3.3 m2,
5. Insulation thickness: 100mm
6. Inner container thickness: 3mm, tank cladding 2mm.
7. Tank cladding surface brush finished, inner container plate polish to ≤0.6um

8. With pressure gauge, liquid meter, with Perlick type sample valve, breather valve, and matched valves, fittings. food sanitary grade

9. With mechanical type pressure regulator, Germany Kieselmann brand.

10. With hops dosing inlet

11. With racking arm on tank under cone side part

12. with drain outlet on tank bottom, with a clamp for install the drain outlet freely.

13. With apple type spray ball
14. Conical bottom, domed top

15. With side manhole in front of tanks

16. With all valves matched

17. With 60degree under cone angle

18. with a carbonation stone on the fermenter.

19. with 4 support legs, with adjust bolt unit for feet.

20.with hang hook and lift hook
