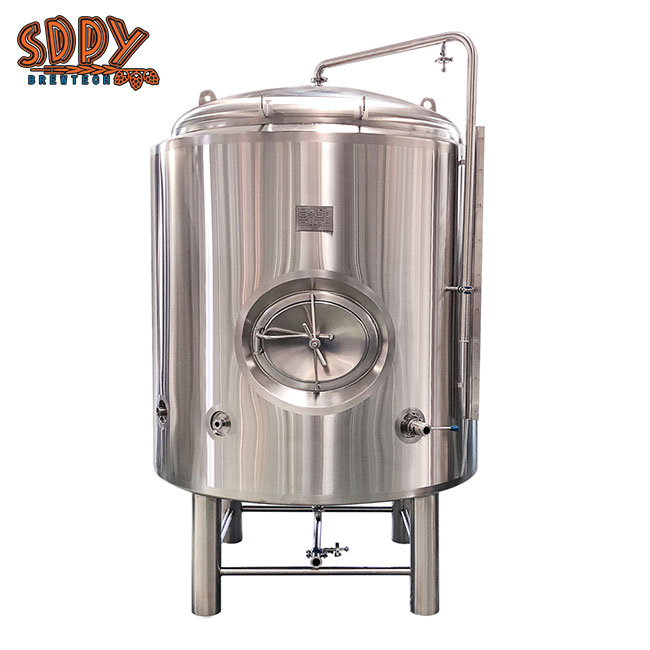

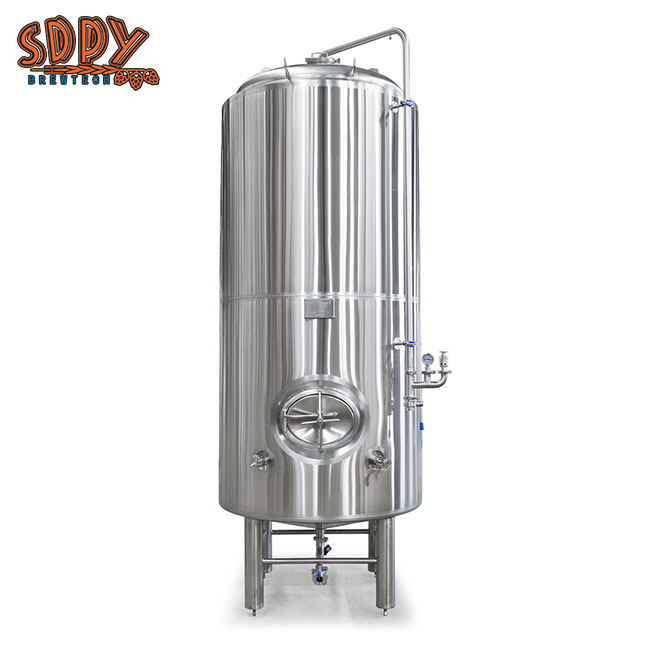

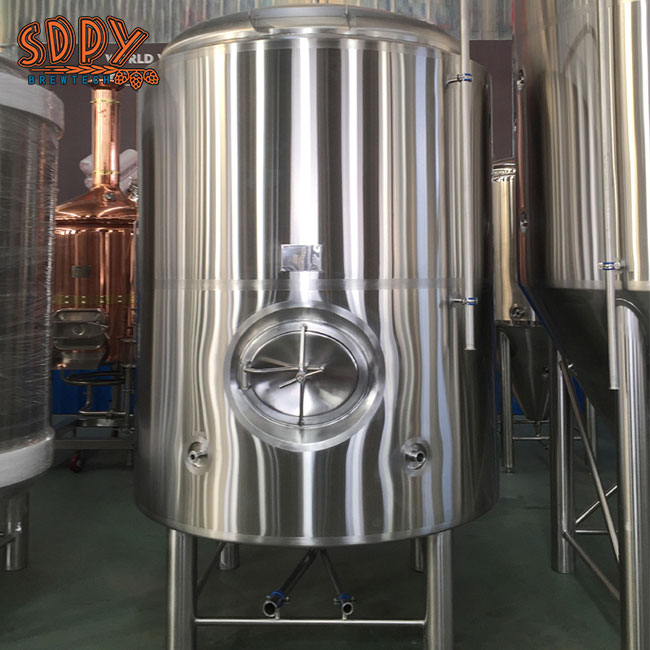

2000L Brighter beer tanks, Brite beer tanks

Stainless steel Tanks design and features for 2000liter Brighter beer tanks:

1. Material stainless steel 304

2. Dimple Jacketed Cooling;

3. Carbonation stone;

4. Total volume: 2500l; Working volume 2000l;

5. Size Φ1600*2400mm(out diameter 1600mm)

6. Heat area 2.6m2

7. Thickness of insulating layer: 100mm; Inner Body Thickness:3mm; outer shell thickness: 2 mm; domed top and bottom thickness:3mm

8. 360 degree CIP rotary spray ball; manway; Pressure gauge;

9. Sampling valve, breather valve, etc.

10. Beer outlet

11. Inside mechanical polishing ≦0.6μm; Working pressure 3 bar.

12. Brushed outer shell, ribbon polished on welds.

13. With valves and accessories matched.

14. bottom cone angle 140°

15. Welding way: Perfect argon arc welding, Welds are smooth and flat and the arrangements of welds have to be not more than Ra 0.6 μm. Inside and outside polishing processing, No welding dead corner.

16. Single control for each tank, PLC or PID control

17. Temperature Measurement ways: Temperature sensor PT100,  temperature display by intelligent data meter

18. Pressure control ways: automatic control, with bunging valve/mechanical type pressure adjust valves

19. Side manhole, 4 support legs with adjustable bolt unit

Bright beer tanks deign mostly same with fermenters, beside cone bottom, high request pressure, carbonation stone, or sometimes different shape request like horizontal or stacked design.

Beside the standard design, we can custom all your tanks volume or shape, if you have some idea, no hesitate note us.

OTHERS:

● Package: iron frame or iron box based on transport way

● Sanitary level tube and butterfly valves;

● Suitable for such fields as foods, dairy, beer, fruit wine, beverage, medicine chemical or bio-engineering project, etc.

● ISO9001 and CE certified

● Fully welded for interior shell and exterior shell;

● 100% TIG weld and sanitary polishing
