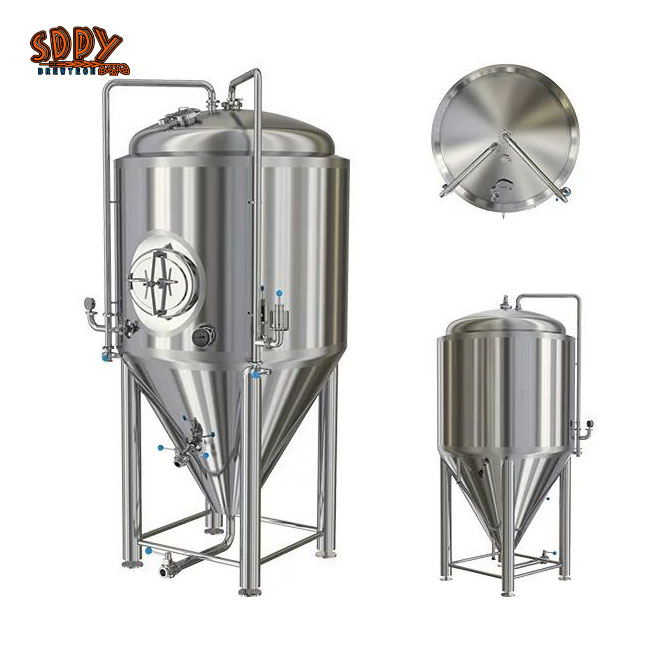

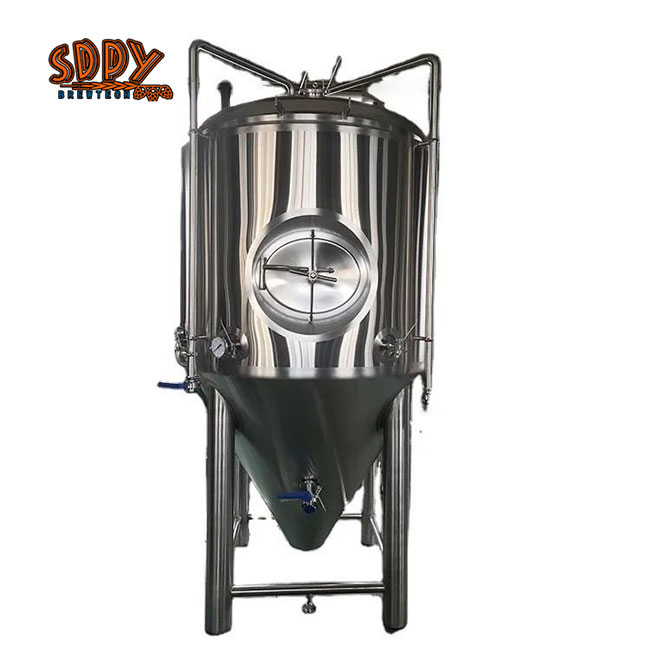

1000&10BBL cylinder fermentation tanks

Tanks design and features for 1000liter beer Fermenters:

● Effective Capacity:10HL 1000liter, total volume 1320liter

Tank dimension φ1260×2520mm height (adjustable)

Cooling area 2.2m2

● Double layer tanks with insulation, or single tanks as request;

● Shape: normal designed vertical tank, stacked tanks, horizontal tanks (BBT) available;

● Material: ss304, ss316, ss316L

● Head space minimums 25%;

● Interior shell thickness: 3mm-6mm;

● exterior shell thickness: 2mm-4mm;

● Cooling way: dimple plate cooling jacket on tank body and cone.

● Polish: shell cladding 2B brush finished; Interior shell polish to <=0.6um or pickled and passivated;

● Insulation material: high density polyurethane foam;

● Insulation thickness: 80-150mm depends on tank volume and local temperature

Shape: vertical tank with dish head and 60-degree conical bottom.

● With CIP arm and 360 °coverage CIP spraying ball;

● Manhole: top or side manway;

● Co2 blow-off arm with butterfly valves;

● Carbonation stone (based on request for fermenters)

● With beer outlet and drain outlet; racking arm beer outlet or bottom beer outlet depends on request.

● Tank feet adjustable

● Package: iron frame or iron box based on transport way

● Control: PLC or PID control

● Temperature measure: thermowell for high accuracy temperature sensor, PT 100 Probe

● Other: with matched valves like breather valve, sample valve, pressure regulator, pressure and anti-vacuum valve etc.;

● Sanitary level tube and butterfly valves;

● Suitable for such fields as foods, dairy, beer, fruit wine, beverage, medicine chemical or bio-engineering project, etc.

● ISO9001 and CE certified

● Fully welded for interior shell and exterior shell;

● 100% TIG weld and sanitary polishing
