300L 500L 600L 700L 1000L
SDPY Brewtech
We can design the Stacked Fermenters and Brighter beer tanks based on your room size, Fermenters and BBTs design very beautiful and convenient to operate.

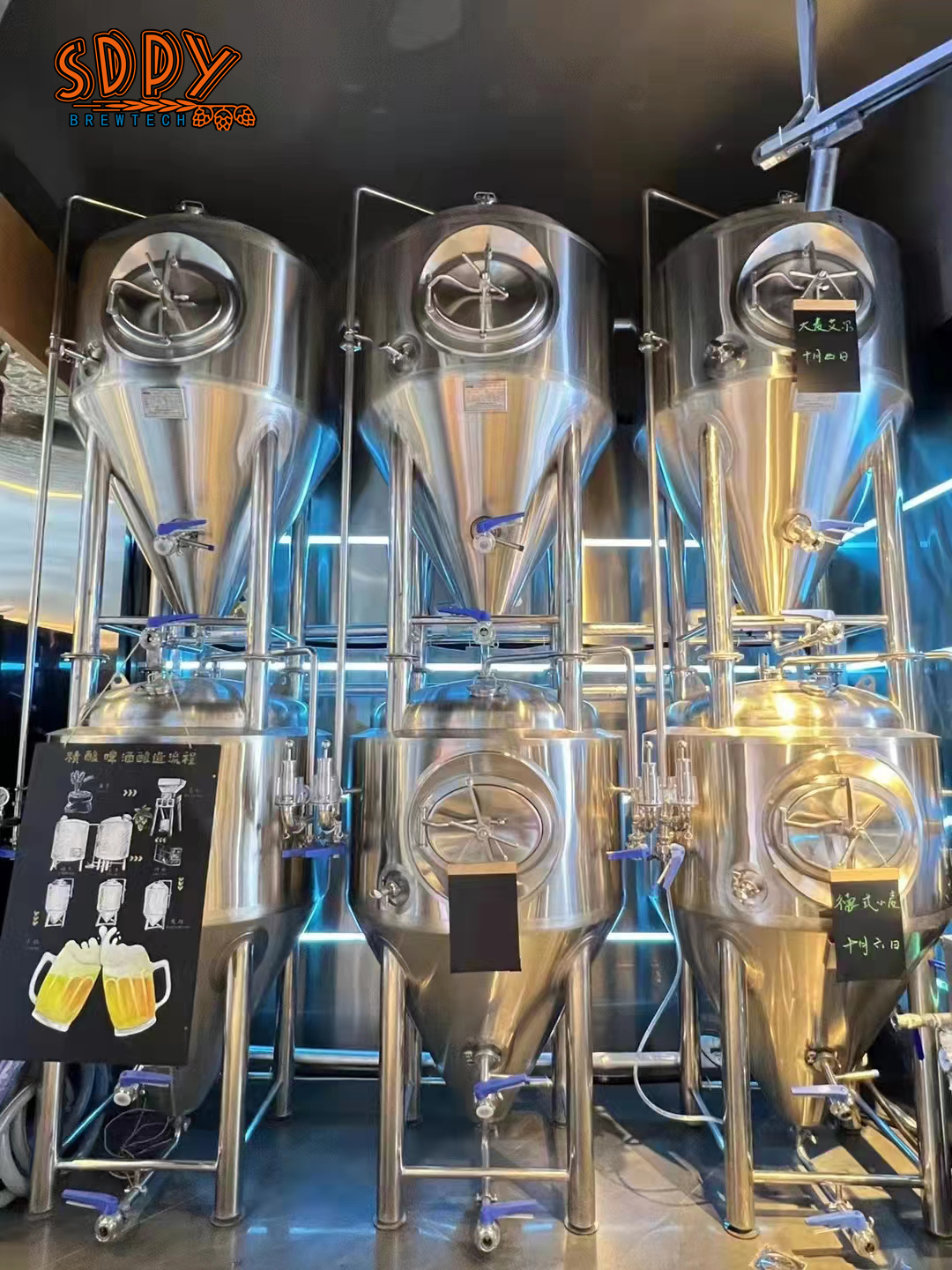

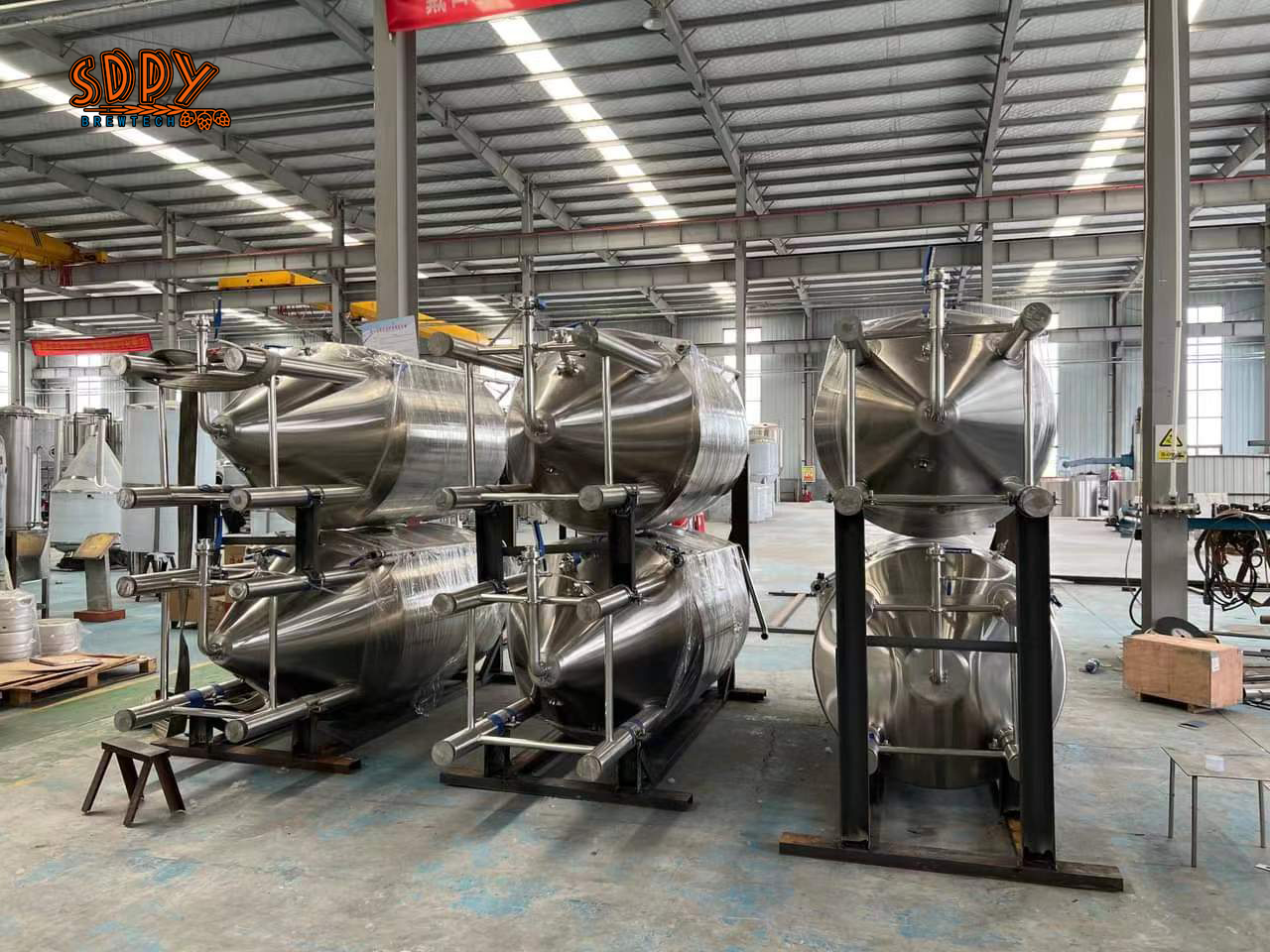

"Stacked tanks" typically refer to a configuration where multiple tanks are placed one on top of another. This arrangement can have several purposes and benefits - SDPY Brewtech provide a wide range of stacked fermenters and stacked BBTs, pretty shape design with vertical stacked or horizontal tanks stacked type.
Stacked Tanks design and features for Fermenters and Brighter beer tanks:
● Capacity:1HL-1000L
● Double layer tanks with insulation, or single tanks as request;

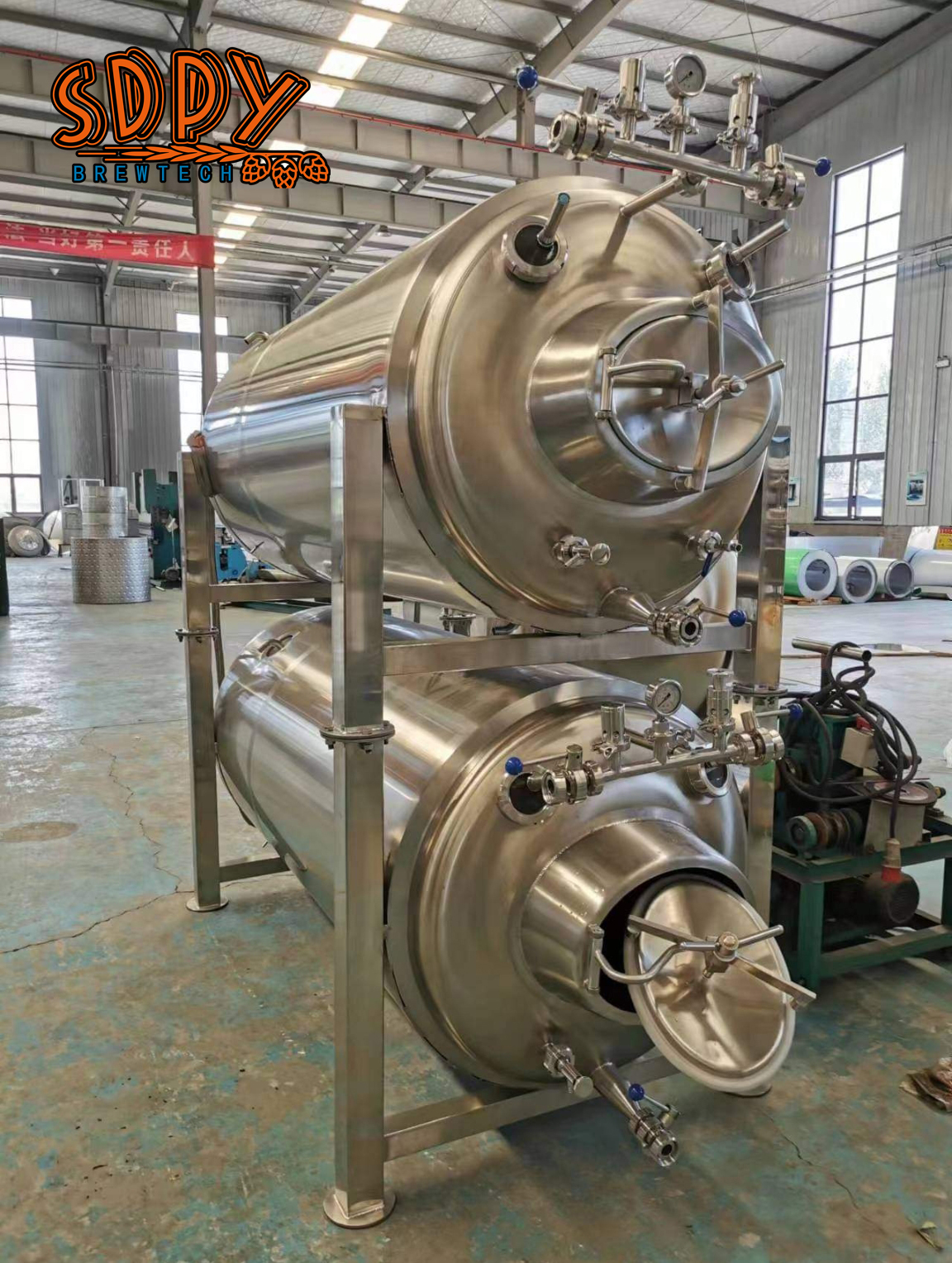

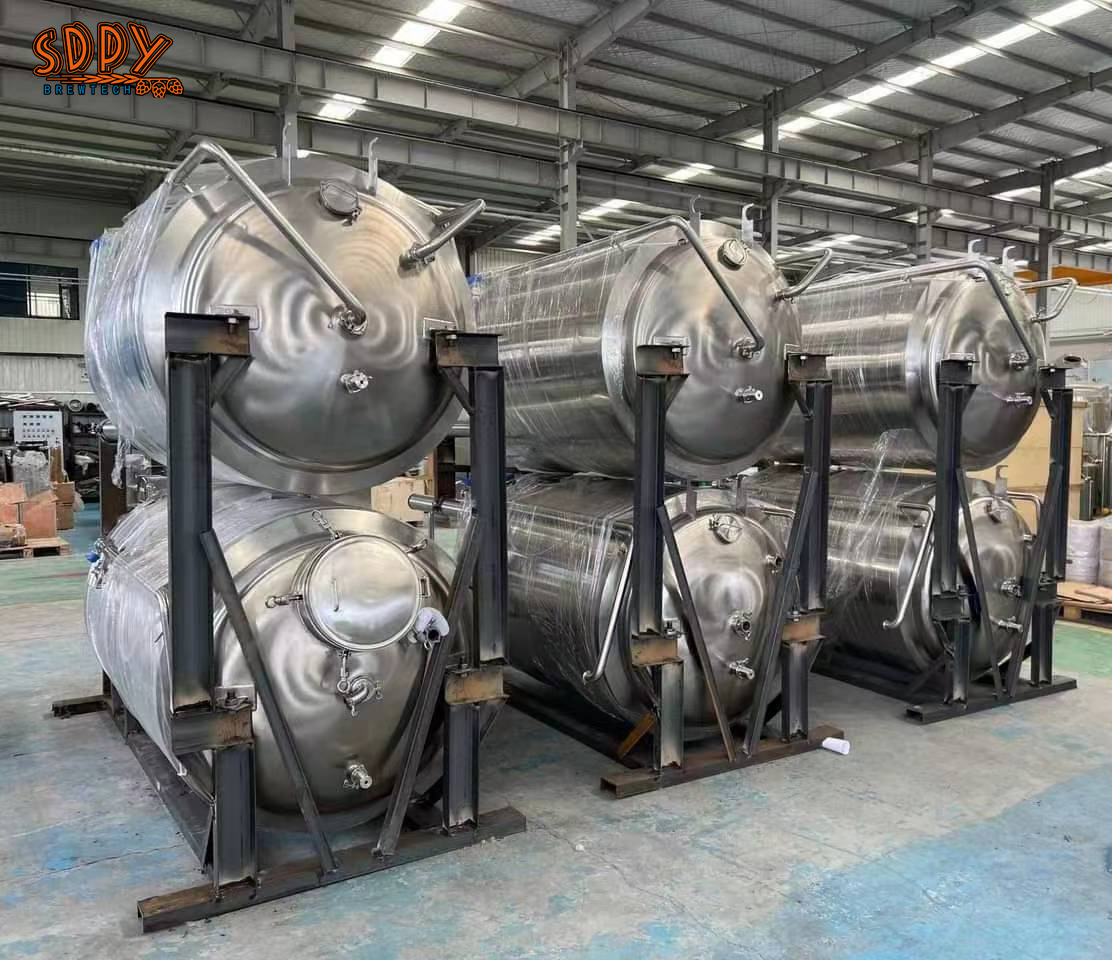

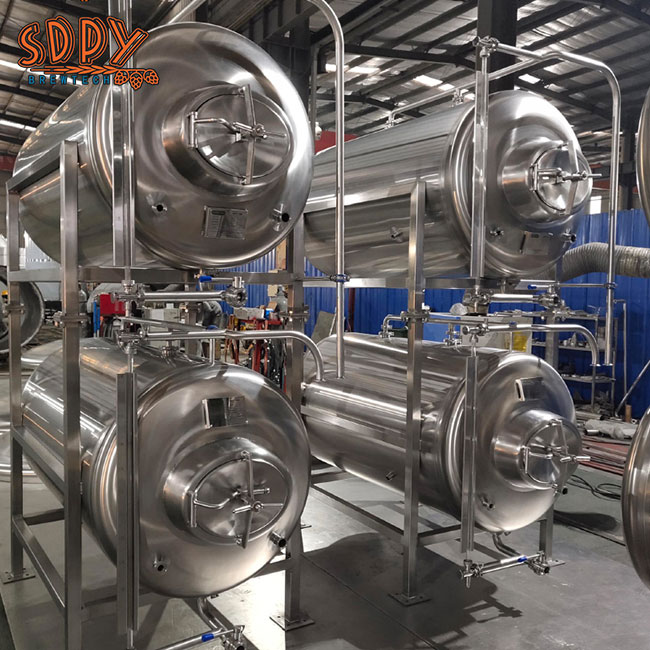

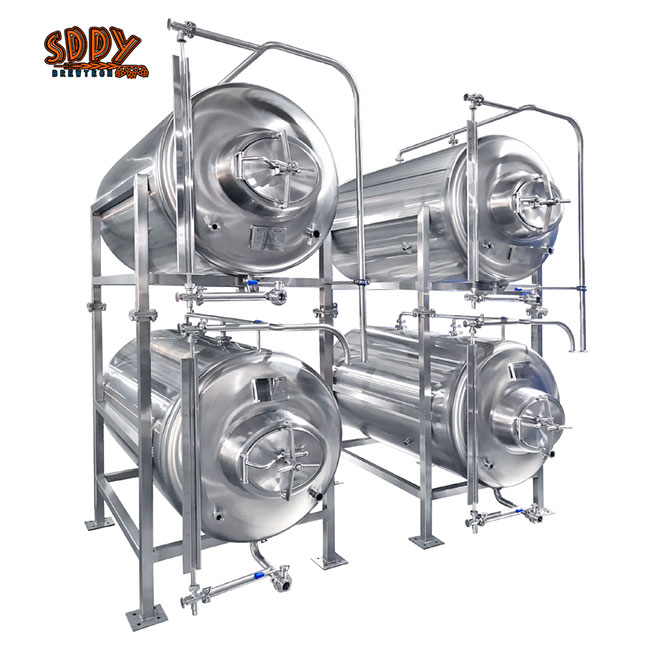

● Shape: normal designed vertical tank, stacked tanks, horizontal tanks (BBT) available;
● Material: ss304, ss316, ss316L
● Head space minimums 25%;
● Interior shell thickness: 3mm-6mm;
● exterior shell thickness: 2mm-4mm;
● Cooling way: dimple plate cooling jacket on tank body and cone.
● Polish: shell cladding 2B brush finished; Interior shell polish to <=0.6um or pickled and passivated; or mirror plate as request;
● Insulation material: high density polyurethane foam;
● Insulation thickness: 80-100mm depends on tank volume and local temperature
Shape: vertical tank with dish head and 60-degree conical bottom.
● With CIP arm and 360 °coverage CIP spraying ball;
● Manhole: top or side manway;
● Co2 blow-off arm with butterfly valves;
● Carbonation stone (based on request for fermenters)
● With beer outlet and drain outlet; racking arm beer outlet or bottom beer outlet depends on request.
● Tank feet adjustable
● Package: iron frame or iron box based on transport way
● Control: PLC or PID control
● Temperature measure: thermowell for high accuracy temperature sensor, PT 100 Probe
● Other: with matched valves like breather valve, sample valve, pressure regulator, pressure and anti-vacuum valve etc.;
● Sanitary level tube and butterfly valves;
● Suitable for such fields as foods, dairy, beer, fruit wine, beverage, medicine chemical or bio-engineering project, etc.
● ISO9001 and CE certified
● Fully welded for interior shell and exterior shell;
● 100% TIG weld and sanitary polishing
