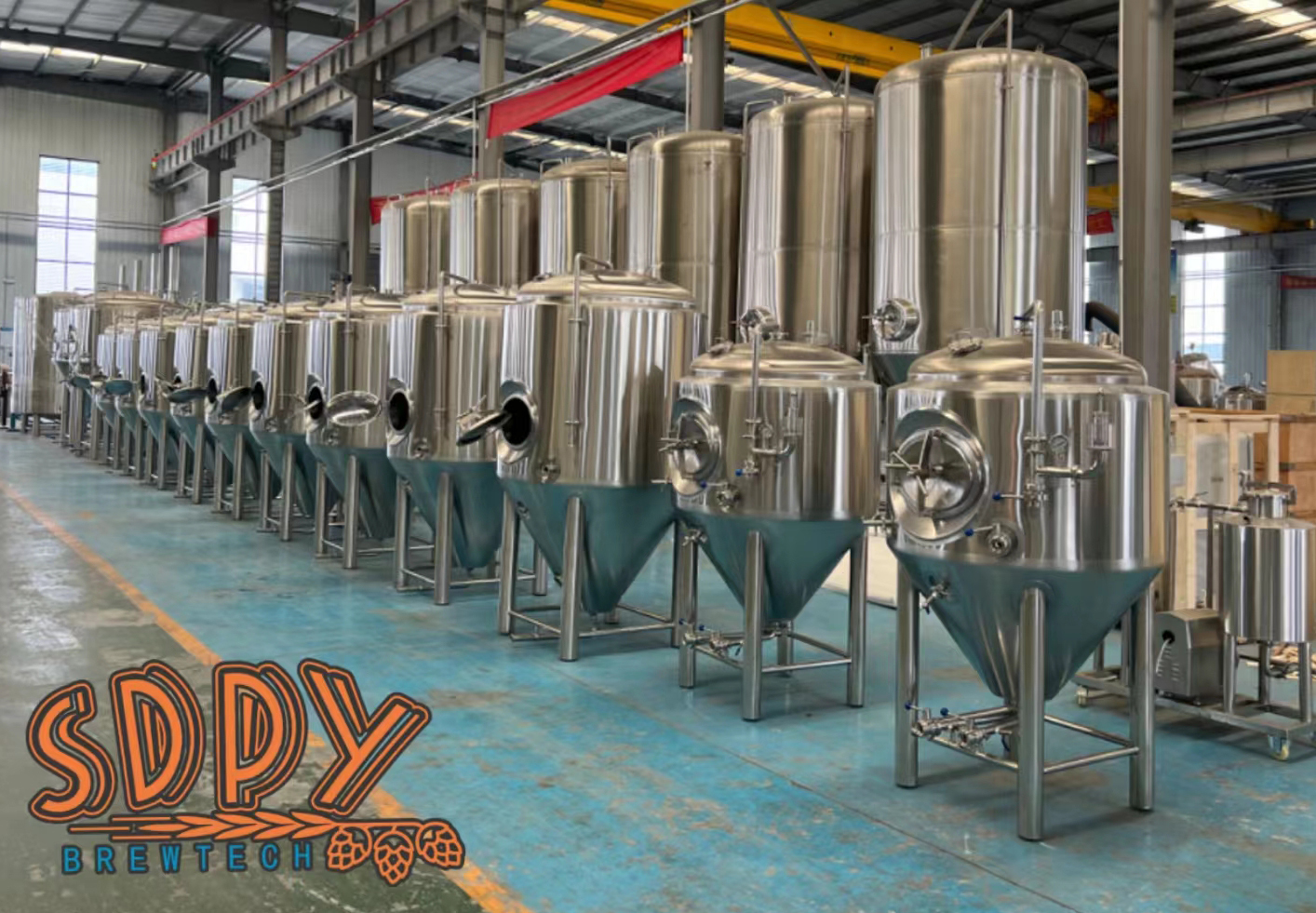

7BBL Fermenters and 7BBL Unitanks

1. Stand type

2.  total volume: 10BBL, effective volume:7BBL,

3.  standard size: φ1200×2548mm (φ1060×2750mm)

4. double wall, with dimple plate cooling jacket; cooling area 2.6m2,

5. insulation thickness: 100mm

6. inner container thickness: 3mm

7. Tank cladding surface brush finished, inner container plate polish to ≤0.6um

8. with mechanical pressure regulator, pressure gauge, liquid meter, sample valves and matched valves, fittings. food sanitary grade

9. conical bottom, domed top

We can design the 7BBL stainless steel Fermenters and Brighter beer tanks (brite beer tanks) based on your room size and technical requirement, our 7bbl conical jacked beer fermenters with good looking design and convenient to operate.

SDPY Brewtech standard design and configuration for 7BBL Cylinder Fermentation Tanks

• Capacity:7BBL (net volume), Total Capacity: 10BBL;

• Dimension: D1200*2548mm

● Double layer tanks with insulation, or single tanks as request;

● Shape: normal designed vertical tank, stacked tanks, horizontal tanks (BBT) available;

● Material: ss304, ss316, ss316L

● Head space minimums 25%;

● Interior shell thickness: 3mm-6mm;

● exterior shell thickness: 2mm-4mm;

● Cooling way: dimple plate cooling jacket on tank body and cone.

● Polish: shell cladding 2B brush finished; Interior shell polish to <=0.6um or pickled and passivated; or mirror plate as request;

● Insulation material: high density polyurethane foam;

● Insulation thickness: 80-100mm depends on tank volume and local temperature

Shape: vertical tank with dish head and 60-degree conical bottom.

● With CIP arm and 360 °coverage CIP spraying ball;

● Manhole: top or side manway;

● Co2 blow-off arm with butterfly valves;

● Carbonation stone (based on request for fermenters)

● With beer outlet and drain outlet; racking arm beer outlet or bottom beer outlet depends on request.

● Tank feet adjustable

● Package: iron frame or iron box based on transport way

● Control: PLC or PID control

● Temperature measure: thermowell for high accuracy temperature sensor, PT 100 Probe

● Other: with matched valves like breather valve, sample valve, pressure regulator, pressure and anti-vacuum valve etc.;

● Sanitary level tube and butterfly valves;

● Suitable for such fields as foods, dairy, beer, fruit wine, beverage, medicine chemical or bio-engineering project, etc.

● ISO9001 and CE certified

● Fully welded for interior shell and exterior shell;

● 100% TIG weld and sanitary polishing
