500l
SDPY Brewtech

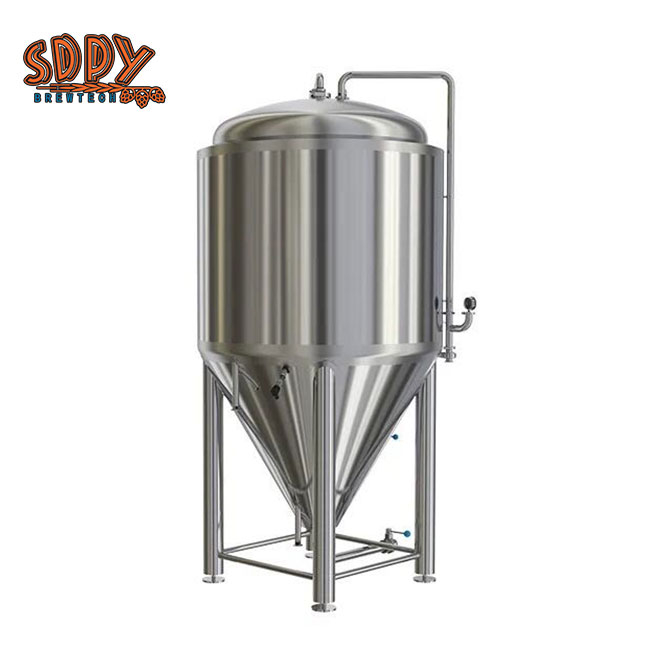

Technical details and features for 600L Fermenters/Unitanks:
● Capacity: 600L, total capacity 863L;
● Double layer tanks with insulation, or single tanks as request;
● Shape: normal designed vertical tank, stacked tanks, available;
● Material: ss304, ss316, ss316L
● Head space minimums 25%;
● Interior shell thickness: 3mm
● exterior shell thickness: 2mm
● Cooling way: dimple plate cooling jacket on tank body and cone.
● Polish: shell cladding brush finished; Interior shell polish to <=0.6um or pickled and passivated; or mirror plate as request;
● Insulation material: high density polyurethane foam;
● Insulation thickness: 80-150mm depends on tank volume and local temperature
Shape: vertical tank with dish head and 60-degree conical bottom.
● With CIP arm and 360 °coverage CIP spraying ball;
● Manhole: top or side manway;
● Co2 blow-off arm with butterfly valves;
● Carbonation stone (based on request for fermenters)
● With beer outlet and drain outlet; racking arm beer outlet or bottom beer outlet depends on request.
● Tank feet adjustable
● Package: iron frame or iron box based on transport way
● Control: PLC or PID control
● Temperature measure: thermowell for high accuracy temperature sensor, PT 100 Probe
● Other: with matched valves like breather valve, sample valve, pressure regulator, pressure and anti-vacuum valve etc.;
● Sanitary level tube and butterfly valves;
● Suitable for such fields as foods, dairy, beer, fruit wine, beverage, medicine chemical or bio-engineering project, etc.
● ISO9001 and CE certified
● Fully welded for interior shell and exterior shell;
● 100% TIG weld and sanitary polishing
Technical details and features for 600L Fermenters/Unitanks:
● Capacity: 600L, total capacity 863L;
● Double layer tanks with insulation, or single tanks as request;
● Shape: normal designed vertical tank, stacked tanks, available;
● Material: ss304, ss316, ss316L
● Head space minimums 25%;
● Interior shell thickness: 3mm
● exterior shell thickness: 2mm
● Cooling way: dimple plate cooling jacket on tank body and cone.
● Polish: shell cladding brush finished; Interior shell polish to <=0.6um or pickled and passivated; or mirror plate as request;
● Insulation material: high density polyurethane foam;
● Insulation thickness: 80-150mm depends on tank volume and local temperature
Shape: vertical tank with dish head and 60-degree conical bottom.
● With CIP arm and 360 °coverage CIP spraying ball;
● Manhole: top or side manway;
● Co2 blow-off arm with butterfly valves;
● Carbonation stone (based on request for fermenters)
● With beer outlet and drain outlet; racking arm beer outlet or bottom beer outlet depends on request.
● Tank feet adjustable
● Package: iron frame or iron box based on transport way
● Control: PLC or PID control
● Temperature measure: thermowell for high accuracy temperature sensor, PT 100 Probe
● Other: with matched valves like breather valve, sample valve, pressure regulator, pressure and anti-vacuum valve etc.;
● Sanitary level tube and butterfly valves;
● Suitable for such fields as foods, dairy, beer, fruit wine, beverage, medicine chemical or bio-engineering project, etc.
● ISO9001 and CE certified
● Fully welded for interior shell and exterior shell;
● 100% TIG weld and sanitary polishing
