250Liter Fermentation tanks

1.Total volume: 310L, Effective volume:250L；
2. Dimension: φ600×1825mm
3. Thickness of insulating layer:80mm;
Inner Body Thickness: 2.5mm.
4. Dimple plate cooling jacket
5. Heat exchange area: 0.86㎡;
6. Insulation thickness: 80mm; Inner tank thickness: 2.5mm;
7.CIP arm and spray ball
6.Release and breath valves
7.Pressure gauge Thermometer & Sample valve.
9. Interior of tank is mechanical polished, inner body polishing ratio ≦0.6μm. Out plate surface Sander Polished.
10.With valves and accessories matched

Availability:

Quantity:



Inquire Add to Basket

Model:
250l
Brand:
SDPY Brewtech

Product Description

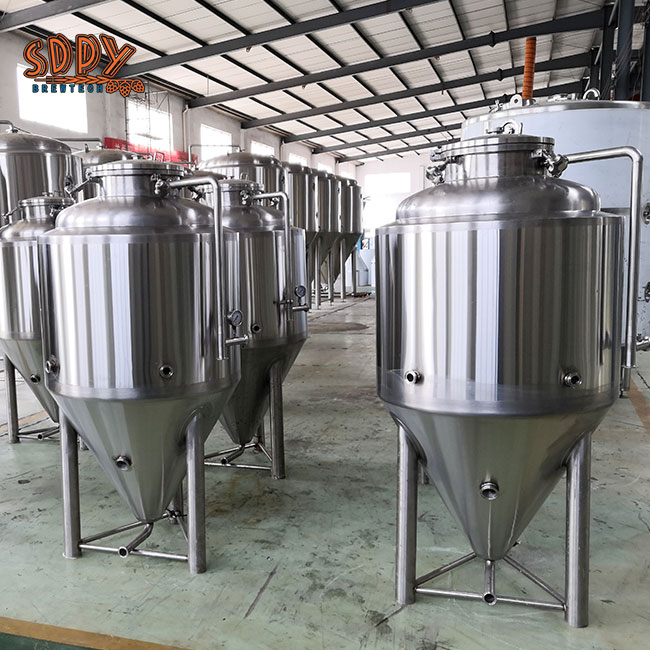

250liter stainless steel beer fermenters, with effective volume 250liters, total volume310liter, double layer with insulation material PUF.

SDPY Brewtech provide 250L fermentation tanks with dish head, conical bottom, top man way, with dimple plate cooling jacket, cooling area is 0.86m2. The 250liter conical fermenter is our popular standard size CCT for nano brewery, microbrewery, brewpubs and pilot brewery system.

The small jacked 200l beer fermenter, equipped with breather valve, pressure regulator valve, sample valve, CIP spray ball, pressure gauge etc.,

with all matched valves and fittings.

200L stainless steel fermenter with automatically control, it is a specialized fermenting vessel for nano and microbrewery use, prescribable, jacketed, which has been designed to cool, it is good for mini breweries.

NO.	Item	250l fermentation tank
1	Outer size	φ760×1825mm
2	Type	standard
3	Test pressure	2 bars
4	Top	dish head
5	layer	double (can do single if need)
6	Effective capacity	250 Liter
7	Body	cylinder
8	Bottom	Conical bottom
9	Manhole	top
10	Cooling way	cooling jacket
11	Supporting leg	adjustable
12	Material	stainless steel 304, 316
13	Insulation	polyurethane
14	Insulation thickness	80mm
15	tank surface	brush finished
16	Inner tank thickness	3mm
