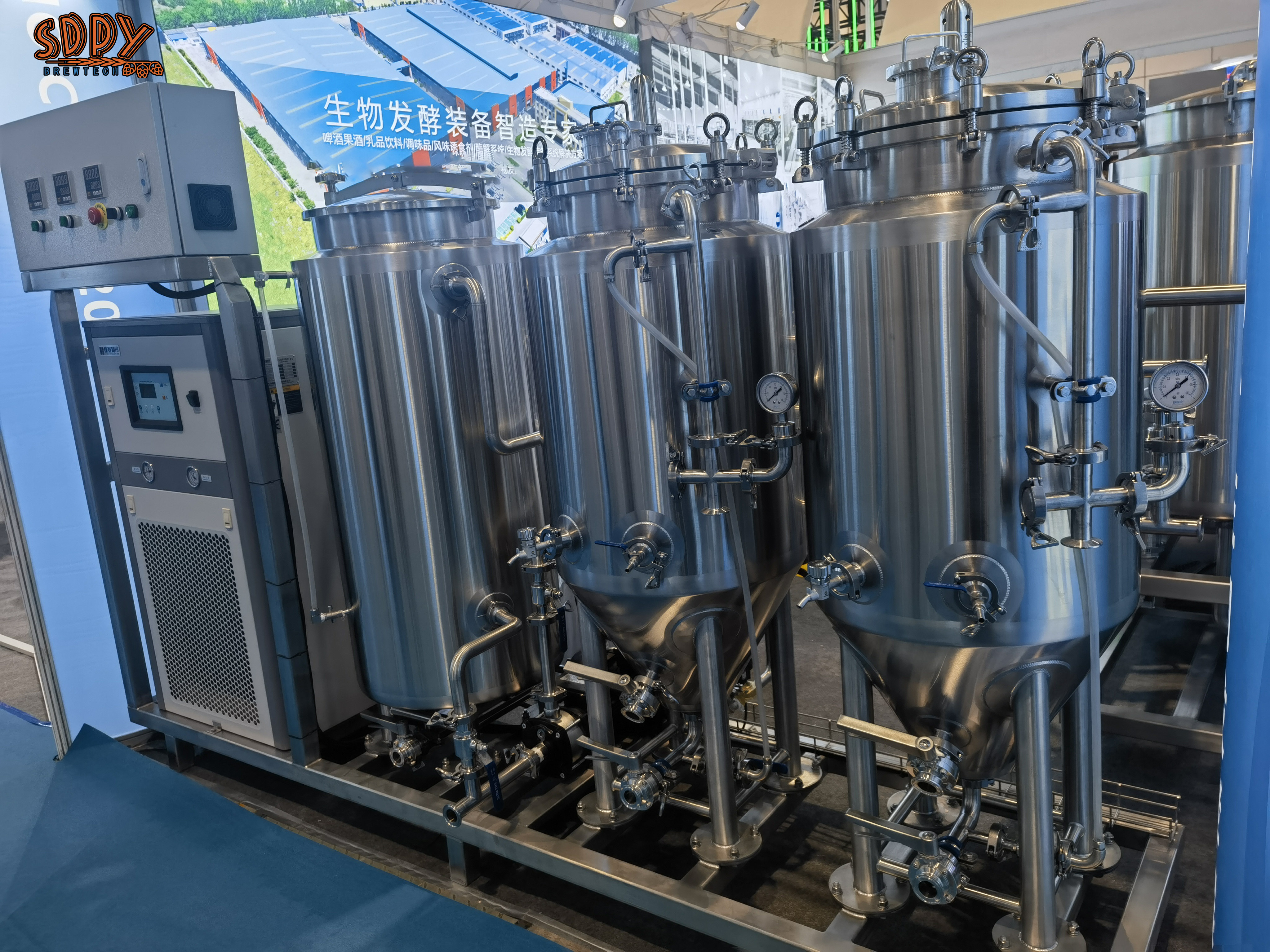

100L-200KL
SDPY Brewtech
All tanks made of stainless steel 304 or 316 if needed, we can produce single layer tanks or double layer tanks in or without insulation. Based on request can design with temperature control, heated or cooled, as well as when you need add mixer inside or ventilate, normal pressure tank or pressure tanks.
Beside the standard design, we can custom all your tanks volume or shape, if you have some idea, no hesitate note us.
Tanks design and features for Fermenters and storage tanks:
● Capacity:1HL-100KL
● Double layer tanks with insulation, or single tanks as request;
● Shape: normal designed vertical tank, stacked tanks, horizontal tanks (BBT) available;
● Material: ss304, ss316, ss316L
● Head space minimums 25%;
● Interior shell thickness: 3mm-6mm;
● exterior shell thickness: 2mm-4mm;
● Cooling way: dimple plate cooling jacket on tank body and cone.
● Polish: shell cladding 2B brush finished; Interior shell polish to <=0.6um or pickled and passivated; or mirror plate as request;
● Insulation material: high density polyurethane foam;
● Insulation thickness: 80-150mm depends on tank volume and local temperature
Shape: vertical tank with dish head and 60-degree conical bottom.
● With CIP arm and 360 °coverage CIP spraying ball;
● Manhole: top or side manway;
● Co2 blow-off arm with butterfly valves;
● Carbonation stone (based on request for fermenters)
● With beer/wine/cider outlet and drain outlet; racking arm outlet or bottom beer outlet depends on request.
Tank feet adjustable
● Package: iron frame or iron box based on transport way
● Control: PLC or PID control
● Temperature measure: thermowell for high accuracy temperature sensor, PT 100 Probe
● Other: with matched valves like breather valve, sample valve, pressure regulator, pressure and anti-vacuum valve etc.;
● Sanitary level tube and butterfly valves;
● Suitable for such fields as foods, dairy, beer, fruit wine, beverage, medicine chemical or bio-engineering project, etc.
● ISO9001 and CE certified
● Fully welded for interior shell and exterior shell;
● 100% TIG weld and sanitary polishing
100L

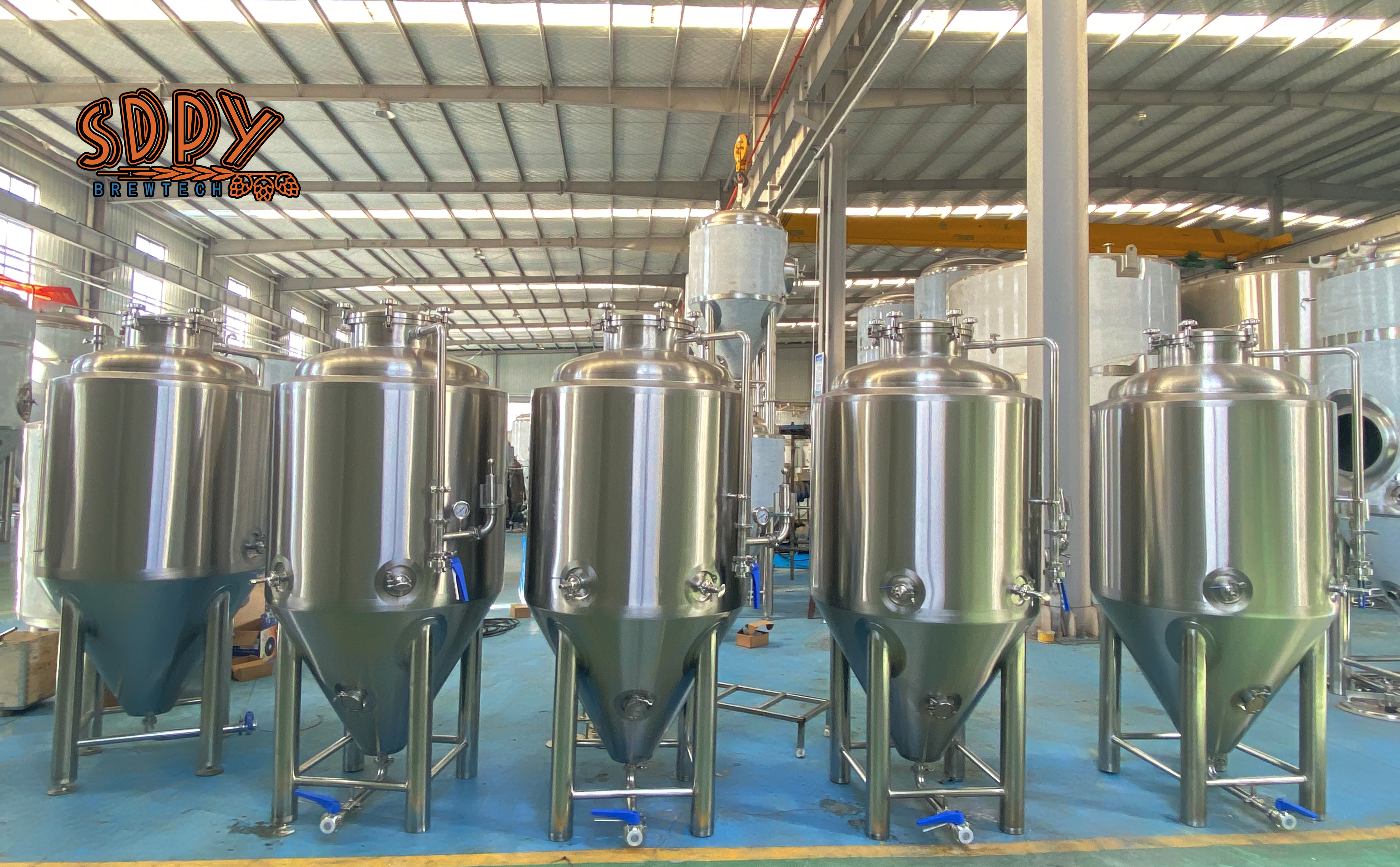

300L

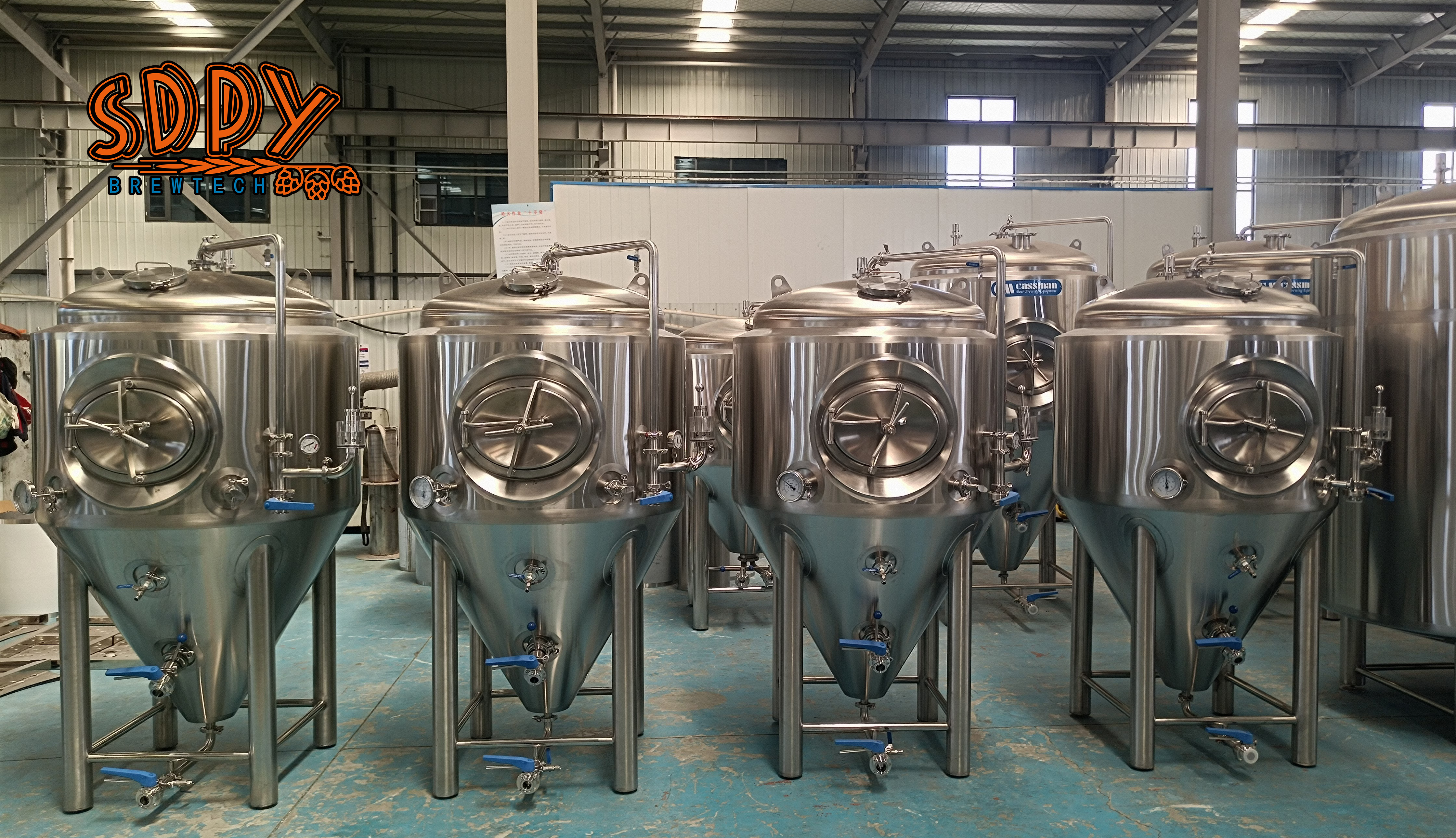

500L

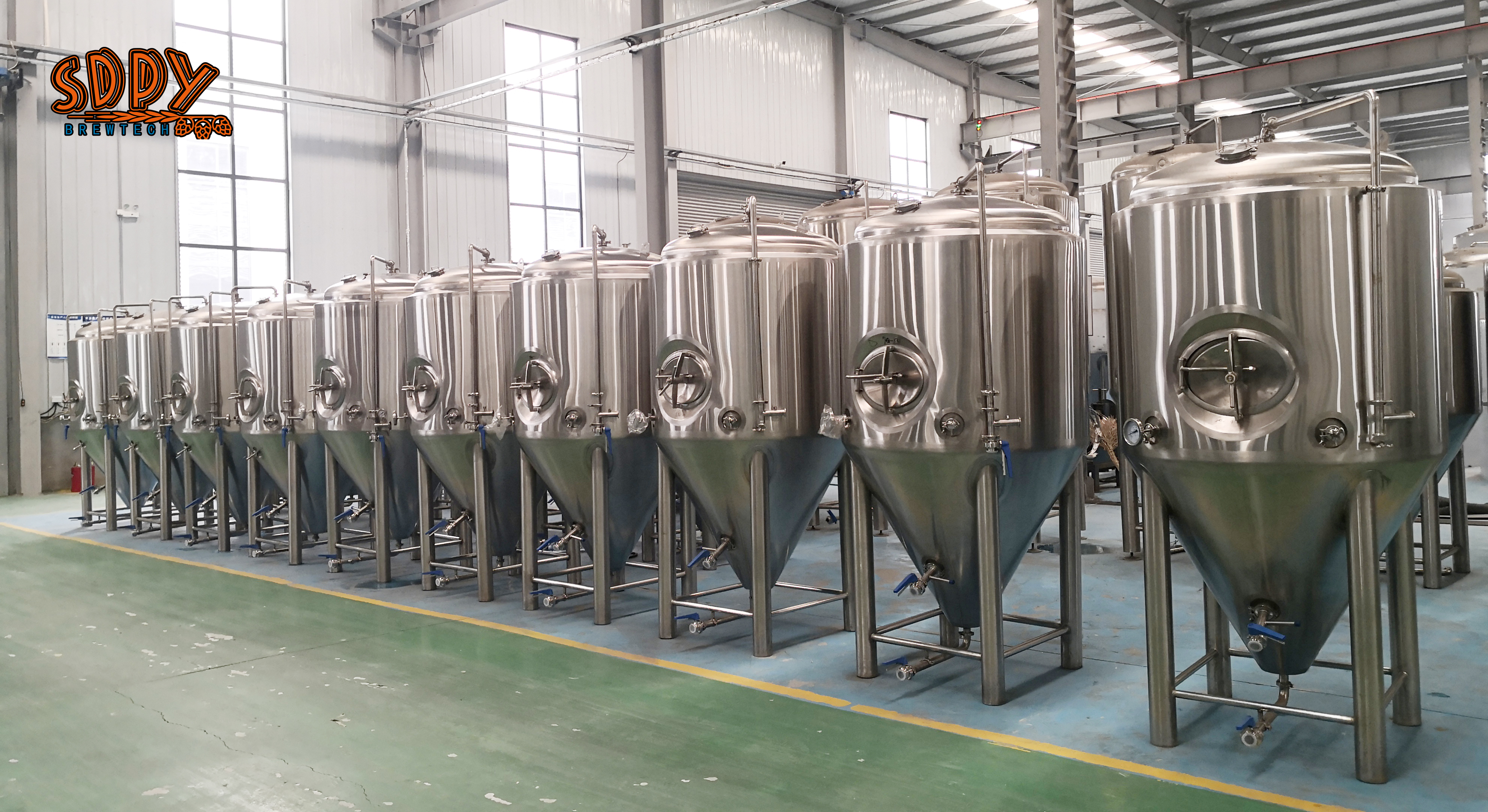

1T

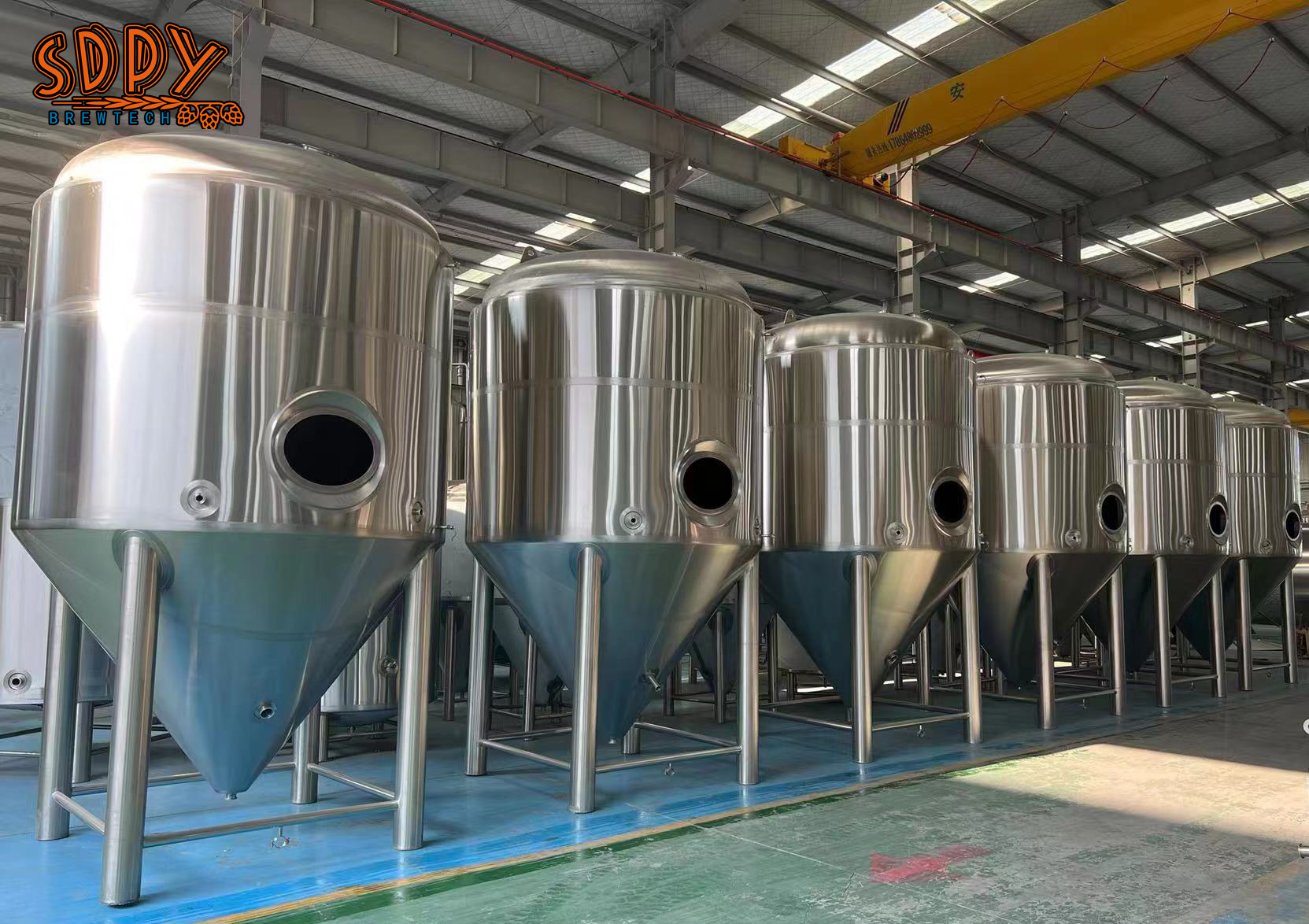

2T

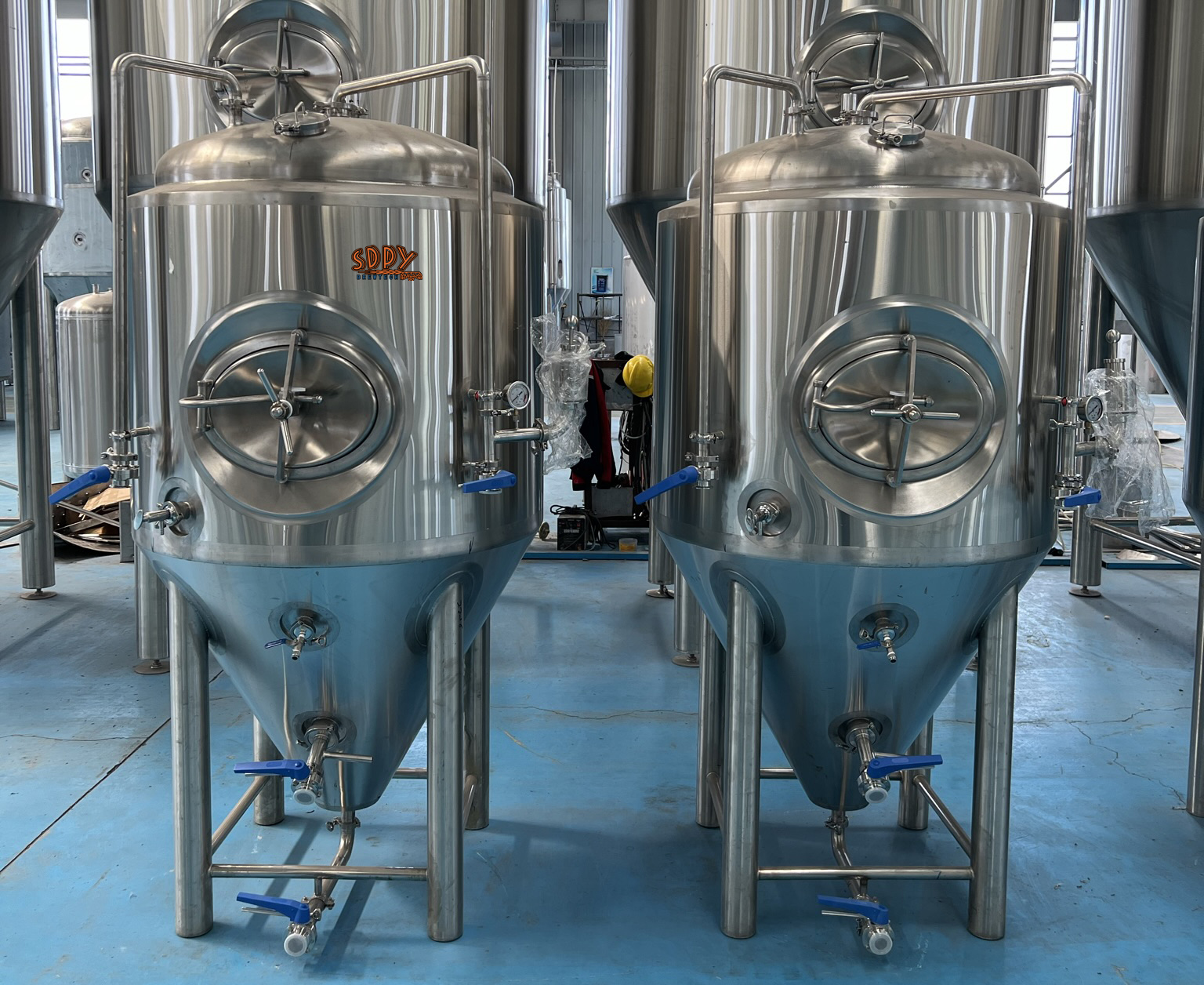

3.5BBL
3T

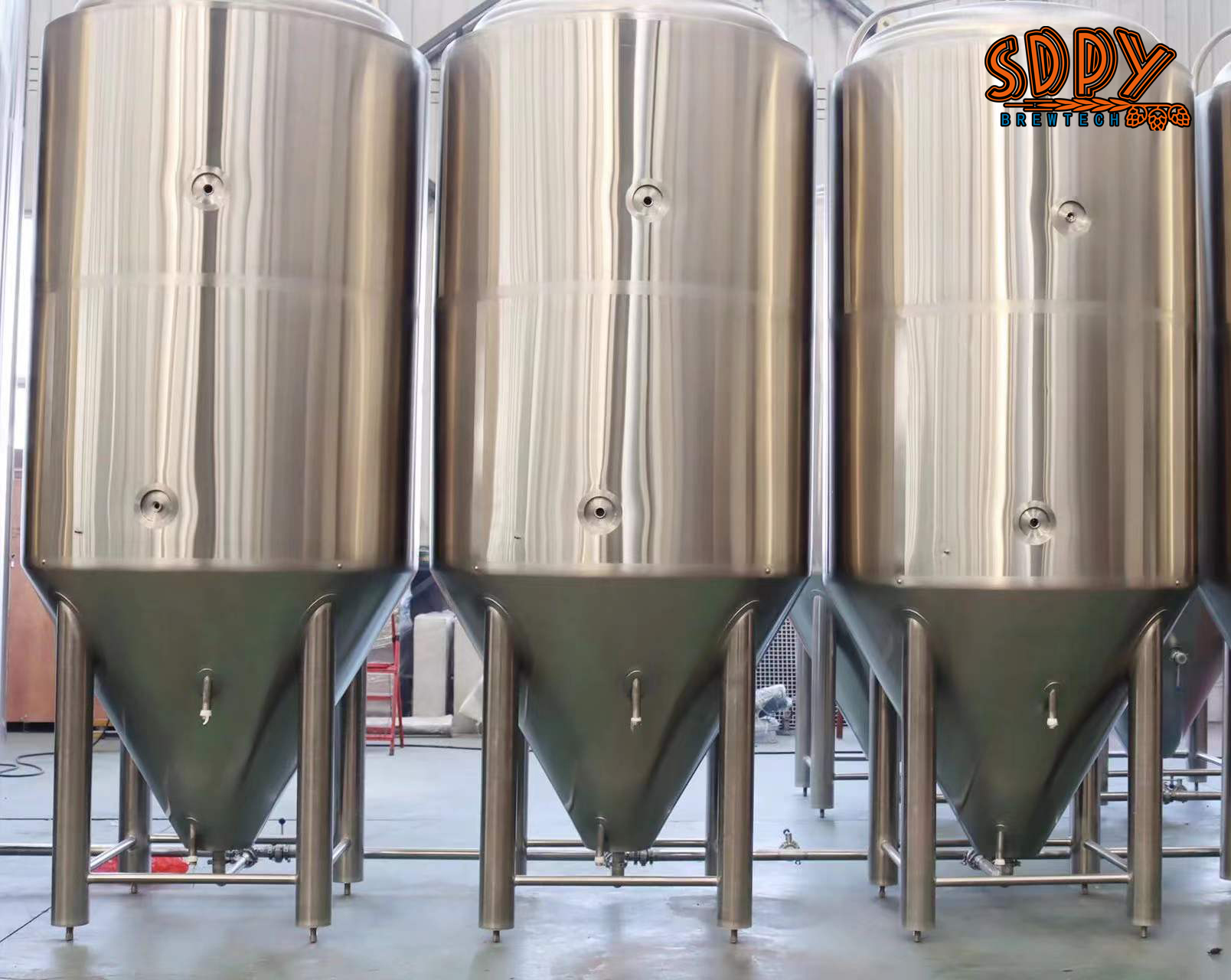

4T

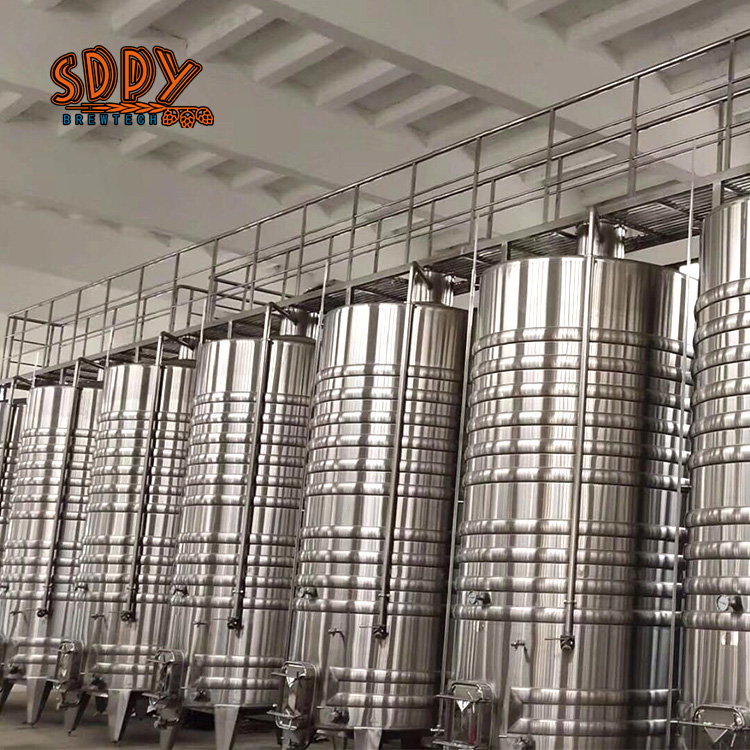

5T

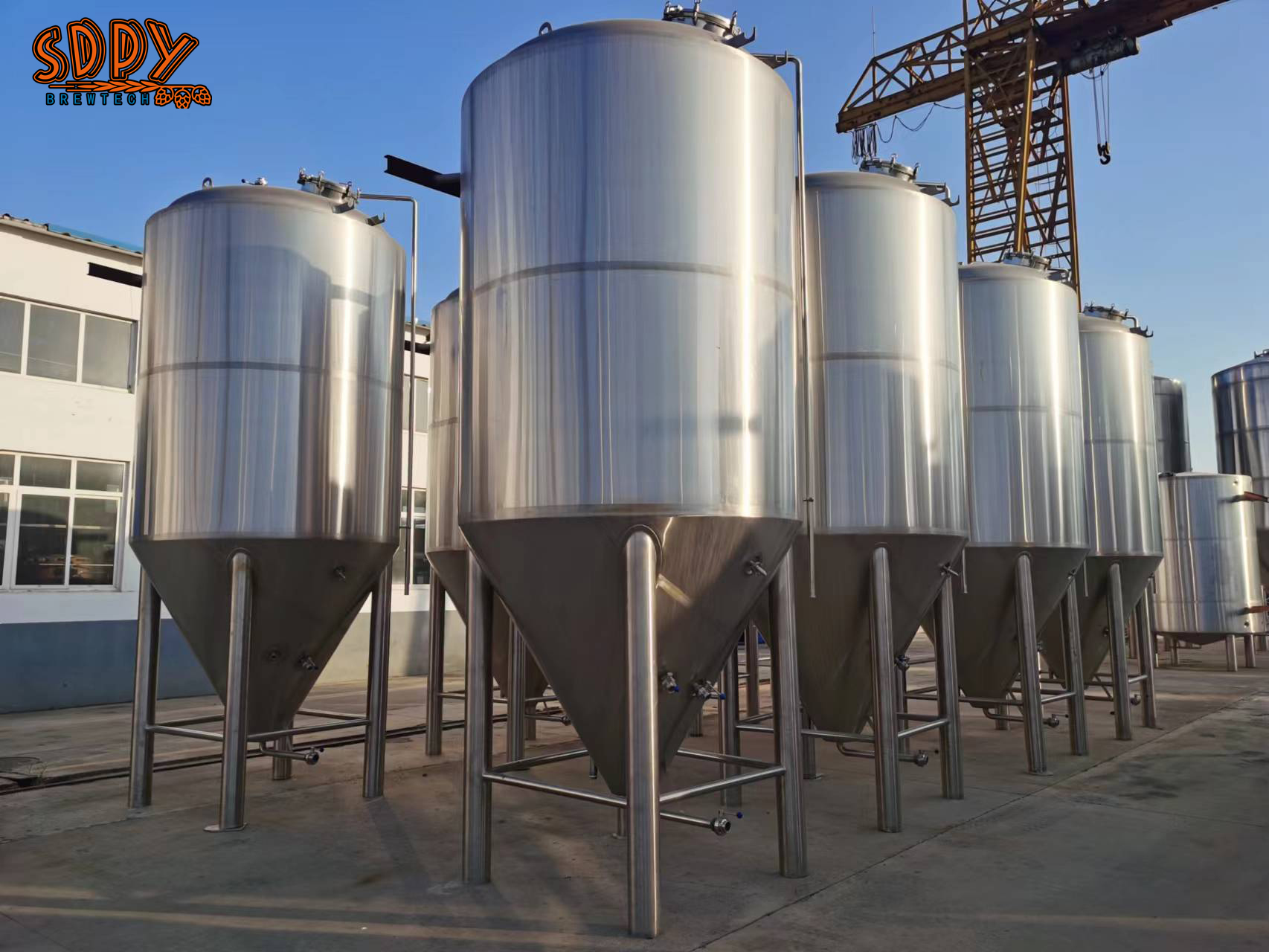

6T

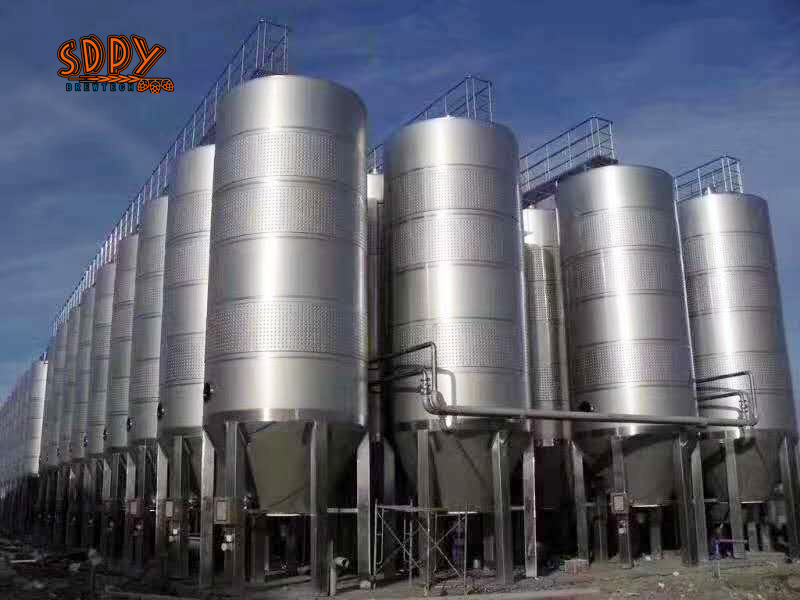

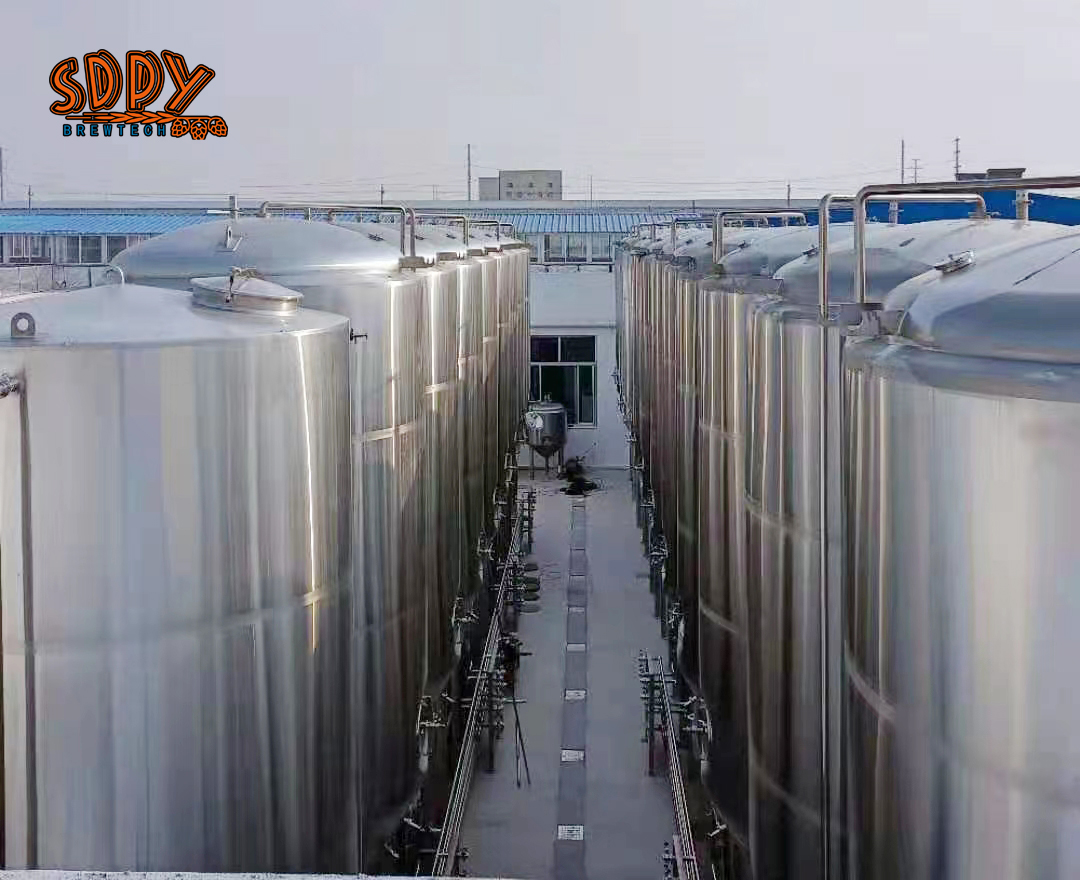

10T
15T
Yeast Adding Tank

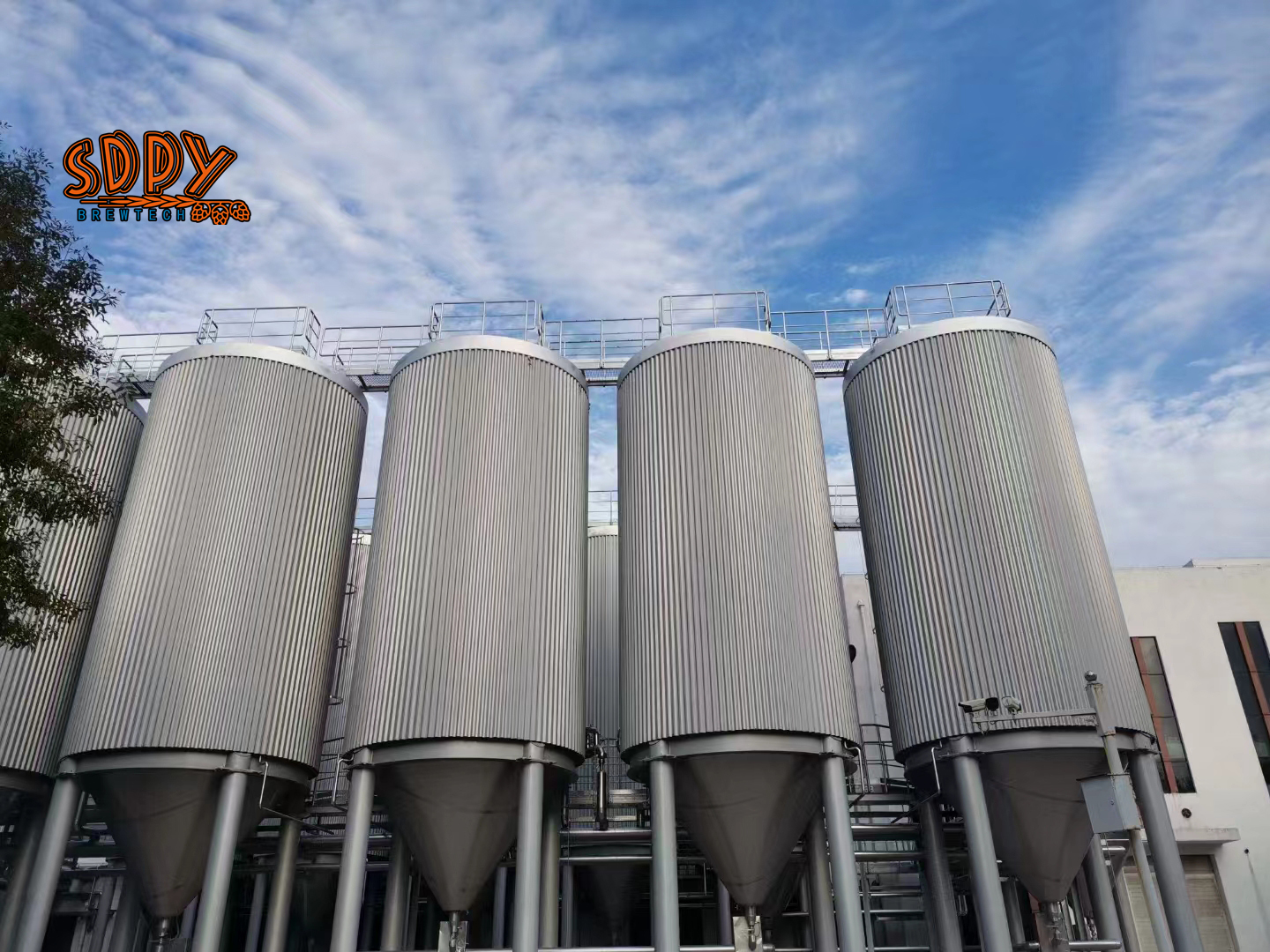

Large Fermentation Tank
