| Quantity: | |
|---|---|
1000-2000kgs/h
SDPY Brewtech
Technical details for 4-rolls malt mill
Capacity 2000kg/h
Whole machine material stainless steel 304
Machine weight 950kgs
Four pole motor, motor power 7.5kw
Motor speed 1450r/min
Roller rotary speed 400&600r/min

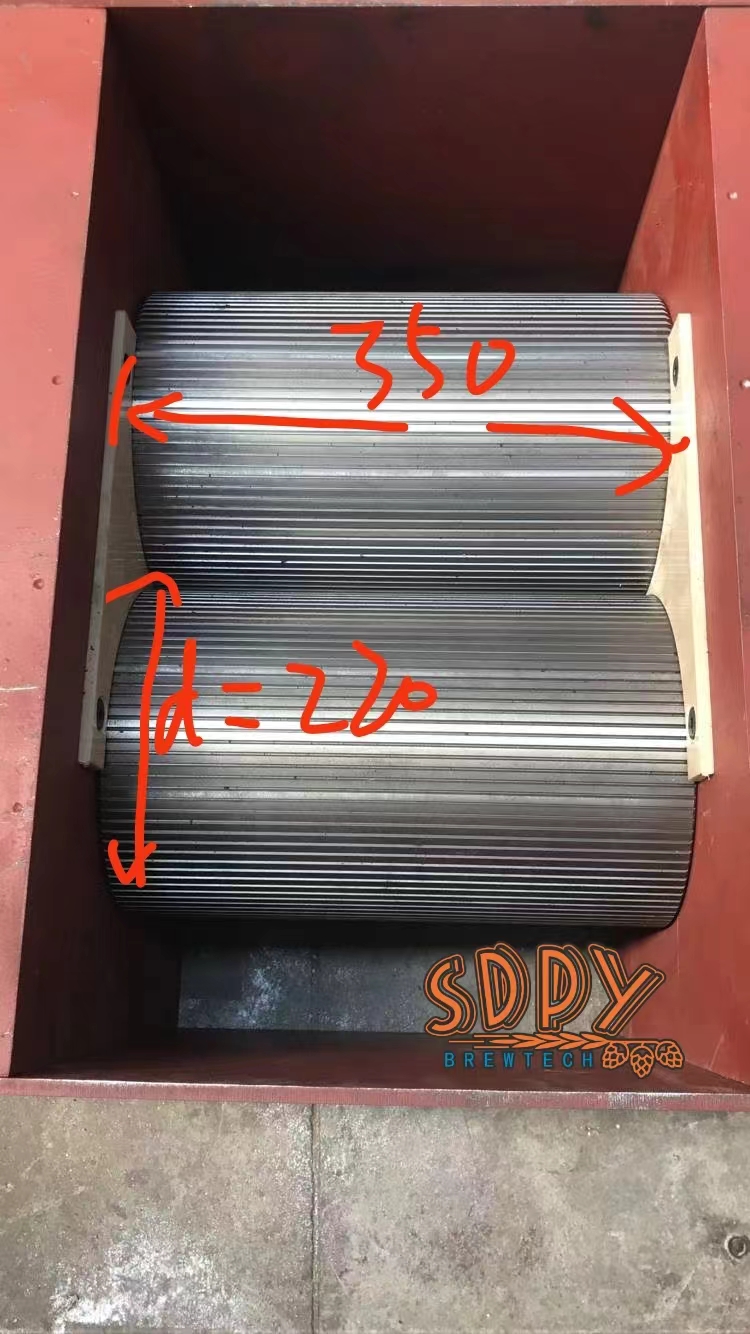

Roller diameter 220mm
Roller work length 350mm
machine work vedio: 4 rolls malt mill machine work vedio (youtube.com)
https://youtu.be/KTrfQzyJiPM?si=5i5uPopengm0Prwn
Machine future
1)The product adopts high-precision linear guide rails, and the product operates with higher precision; the product adopts a new composite gear with self-lubricating function (which has obtained a national patent) for transmission, which makes the transmission more stable, lower noise, stronger impact resistance, and high wear resistance.
2) The new grinding roller (obtained national patent) adopts high-quality steel shaft head and new grinding roller material, both of which are dynamically balanced. The particle size of the processed materials is more uniform, the efficiency is higher, and the service life of the parts is longer.
3) The grinding roller gap adjustment structure is simple, labor-saving and more accurate.
4）Adopting U-shaped motor base adjustment mechanism, adjustment is easier
5）The whole machine has a fully enclosed structure, making it easier to ensure material cleanliness;
6） the material feeding adjustment mechanism is designed to make the material feeding more uniform
