1000L Per Batch Beer Brewing System Complete Plant

1000l per batch beer brewing equipment is a widely ordered craft beer brewing system size, which is widely used in brewpubs, BBQs, Restaurants, craft brewery plant etc, we have many options to choose, we have one set standard configuration 1000l per batch brewery system with full automatic control now has great promotion price.

Main configuration for 1000l beer brewing system mainly includes:

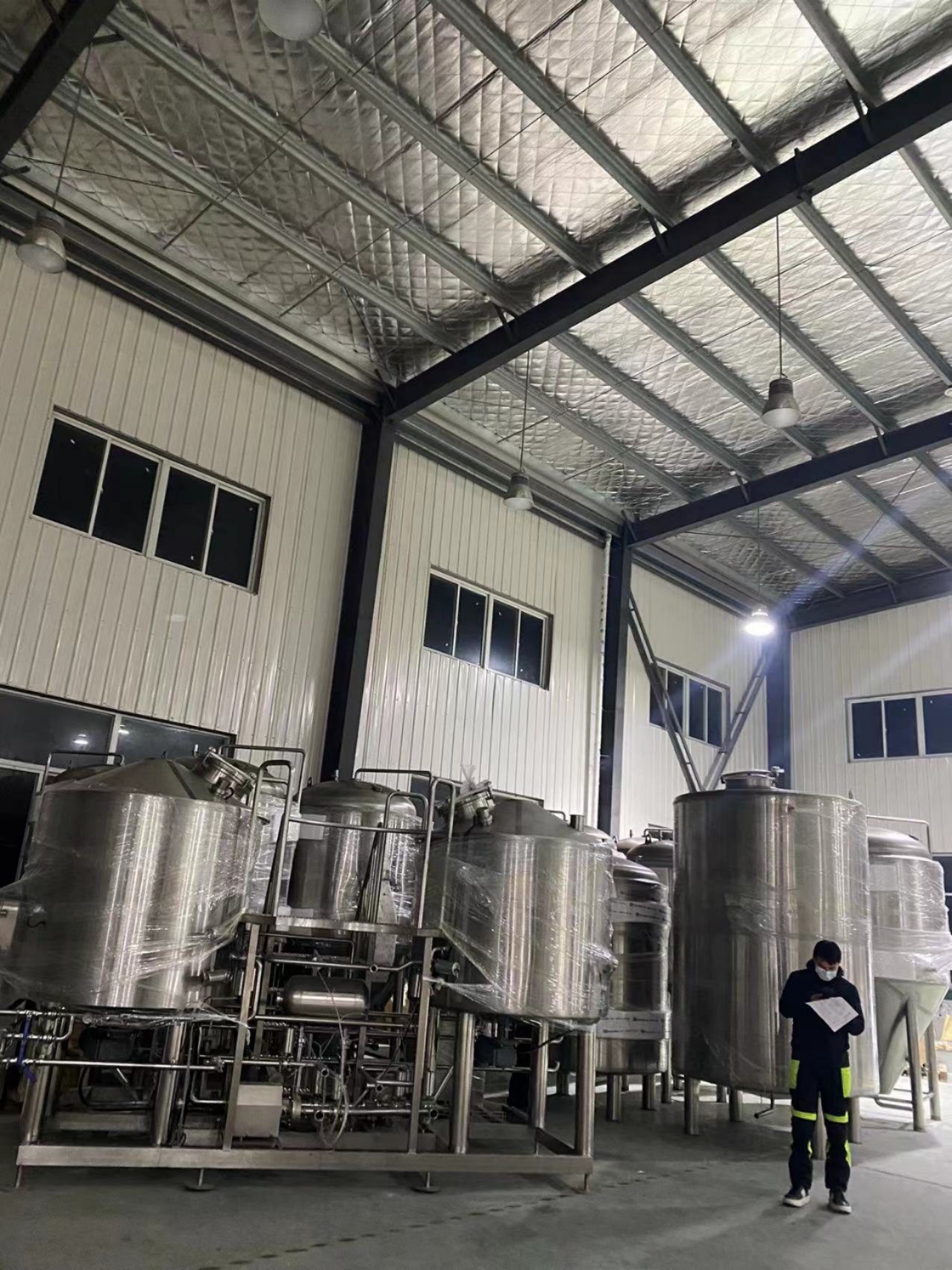

1.1000liter brewhouse system + 2000L hot water tank

 Stainless steel 304 brewhouse,  full automatic control with pneumatic valves

we can design the steam heated brewhouse with 2/3/4 vessels system, you can freely choose based on request, main tanks including mash tun, lauter tun, kettle, whirlpool, 2000L Hot water tank, PHE (plate heat exchanger)/wort cooler, PID brewhouse control cabinet, platform, pumps, piping, valves & fittings.

Technical details

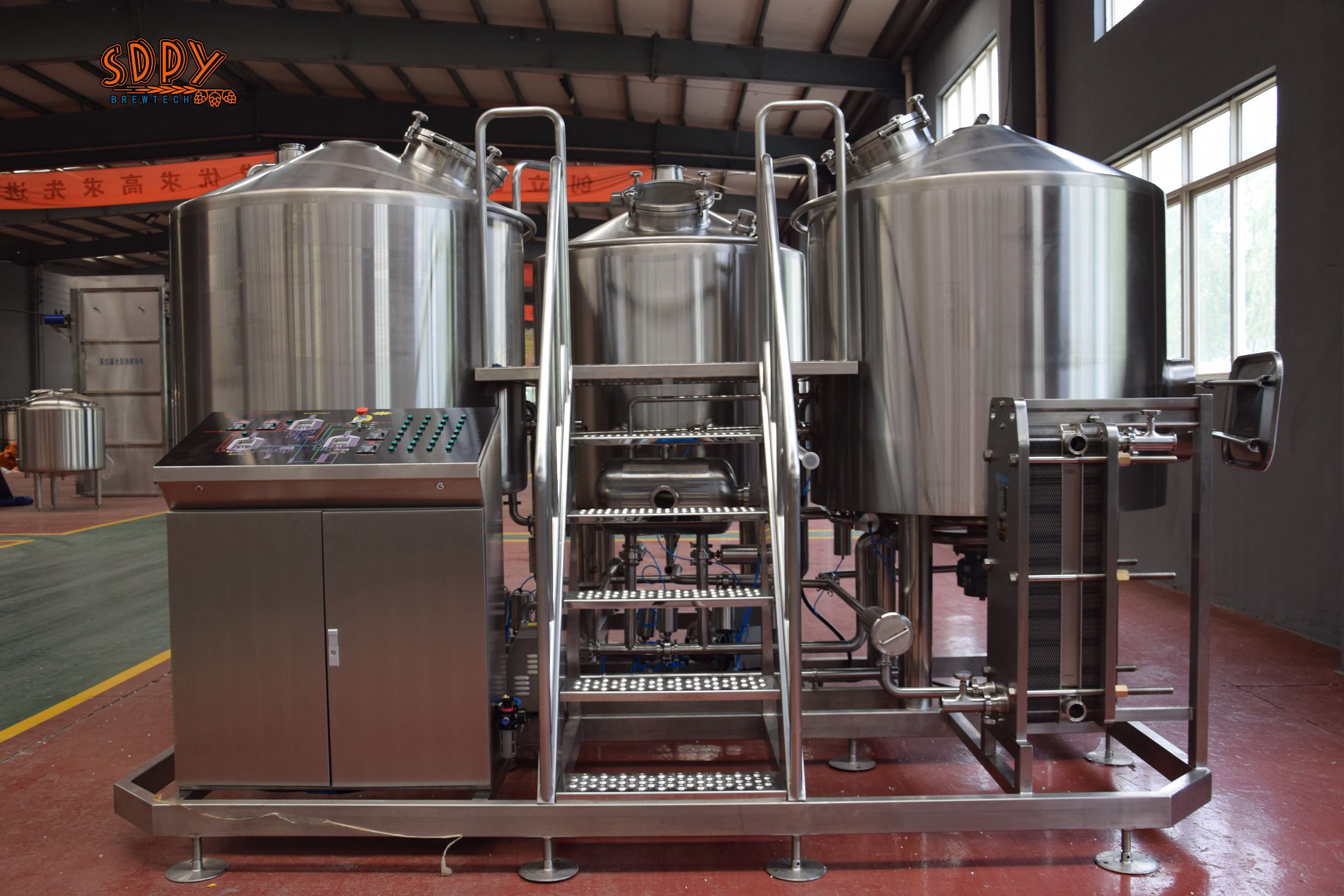

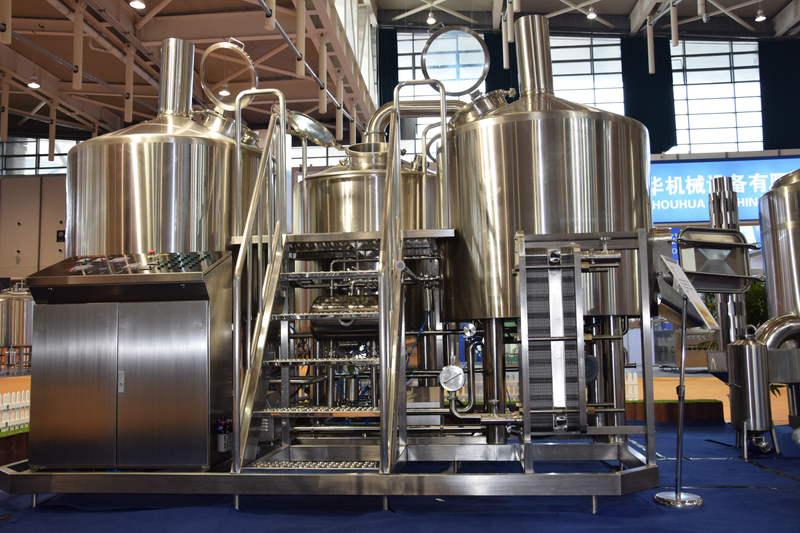

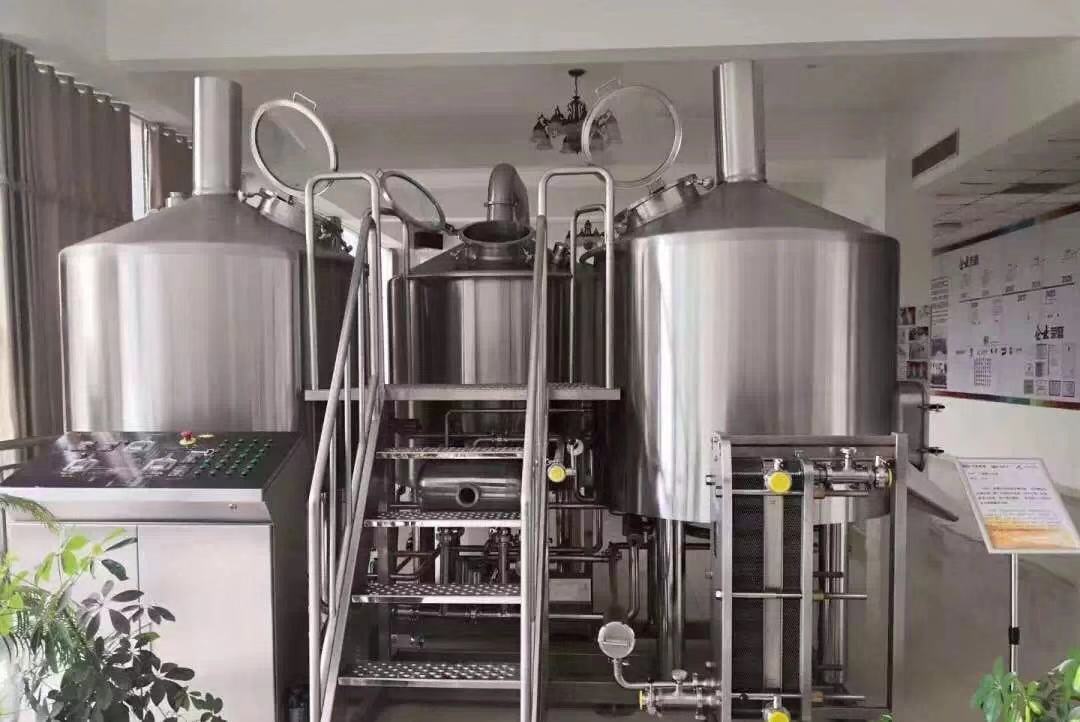

1) Brew Hose -1000l steam heated brewhouse, 3 vessels brewhouse, automatic control

1000l Lauter tun

1.     Dimension:φ1360×2600mm

2.     Total volume: 1300L, effective volume:1000L；

3.     Thickness of insulating layer: 80mm;

4.     Inner Body Thickness: 3mm. tank cladding 2mm;

5.     With steam heating jacket, heat area 1.46m2;

6.     With 360degree rotary CIP spray ball.

7.     with agitator: cyclical reducer, speed ratio 1:29; power 0.75kw;

8.     With full glass manhole with sight glass;

9.     Brush finished;

10.   with decoration chimney 600mm;

11.   Condensate water pipe

12.   With support legs;

1000l lauter tun

1.     Dimension:φ1360×2500mm

2.     Total volume: 1400L,effective volume:1000L；

3.     Thickness of insulating layer: 80mm;

4.     Inner Body Thickness: 3mm. tank cladding 2mm;

5.     With steam heating jacket; heat area 1.46m2;

6.     With Milled plate false bottom;

7.     With sparge ring in Lauter tun

8.     With 360degree rotary CIP spray ball

9.     Mechanical agitation: cyclical reducer, speed ratio 1:43; motor power 0.75kw; with variable speed control;

10.   With full glass manhole with sight glass;

11.   Brush finished;

12.   With decoration chimney 600mm;

13.   With Condensate water pipe

14.   Support legs with brace and adjustable bolt;

15. Necessary fittings and valves.

1000l Kettle/whirlpool

1.     Dimension: φ1360×2500mm

2.     Total volume: 1400L,effective volume:1000L；

3.     With steam heating jacket; heat area 1.46m2;

4.     Condensate water pipe

5.     Thickness of insulating layer: 80mm;

6.     Inner Body Thickness: 3mm.tank cladding 2mm;

7.     With CIP rotary spray ball

8.     Tank cladding brushed finished

9.     with full sight manhole;

10.   Level gauge with stainless steel shell

11.   With support legs;

12.   With tangent whirlpool inlet

13.   with decoration chimney 600mm;

14. Condensate water pipe

15. With support legs;

16. Necessary fittings and valves.

2000l Hot water tank, Hot liquor tank

1. Dimension: φ1400×2760mm

2. Total volume: 2200L,effective volume:2000L

3. electric heating

4. Thickness of insulating layer: 80mm;

5. Inner Body Thickness: 3mm.

6. Tank cladding brushed finished

7.Thermowell tube with PT 100 temperature probe;

8.With full sight manhole;

9. with PT100 temperature probe;

10. With CIP rotary spray ball

11. with liquid meter

12. with over flow pipe;

13. with four legs and adjustable bolt;

14. Necessary valve and fittings.

2). Beer Fermentation System

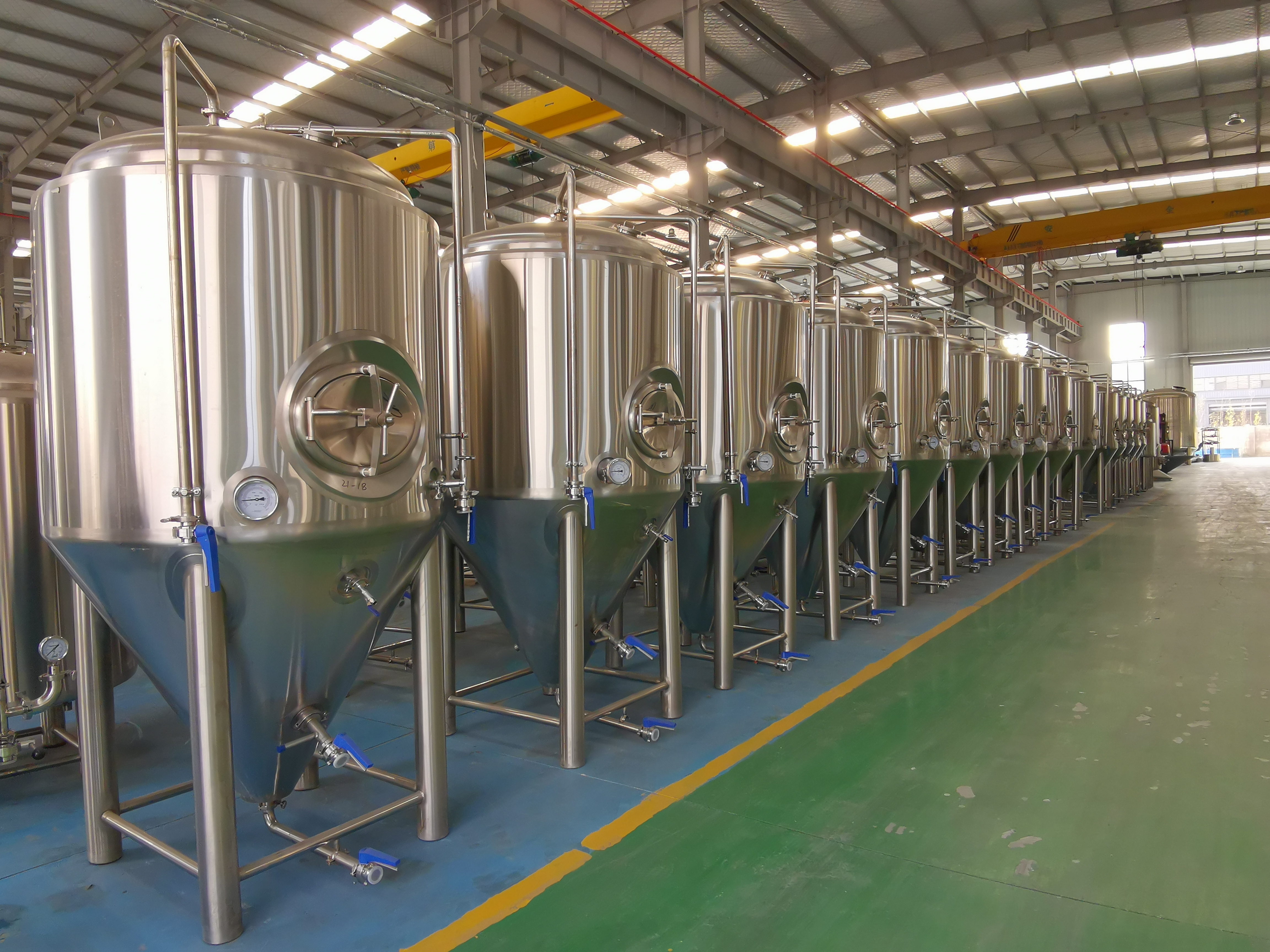

1000l fermentation tanks -2 pcs

2000l fermentation tanks -8 pcs

Matched piping, valves, fitting etc

3) Cooling system

Glycol tank- 4000L

Chiller- 8P- 2 sets

pumps, piping, fittings and valves etc.

4. CIP system (Clean in station):

100l CIP trolley, 2 vessels with control panel, pumps, valves.

4.Control system:

PLC control panel,  full automatic control system

5. Other system:

keg filling equipment and keg cleaning equipment

Our Craft brewery equipment made of quality sanitary grade stainless steel 304 with the most modern advanced beer production and testing technology in the world, all pipes and valves among the whole equipment are connected by sanitary fast connection joint for easy connection, installation, disassemble, move.

If you want offer of the 1000l craft breweries, we'll happy to share with you our configuration list for your reference, we can customize many details design based on your idea, and we have strong ability for arrange the complete brewery transportation to your brewery site, send engineer to guide installation, test equipment and even teach you how to brew, with us, you can get a one top turnkey solution, with short produce time, timely delivery and quality after sales service. Because we're produce factory, you can get a direct factory price and best profession service.
