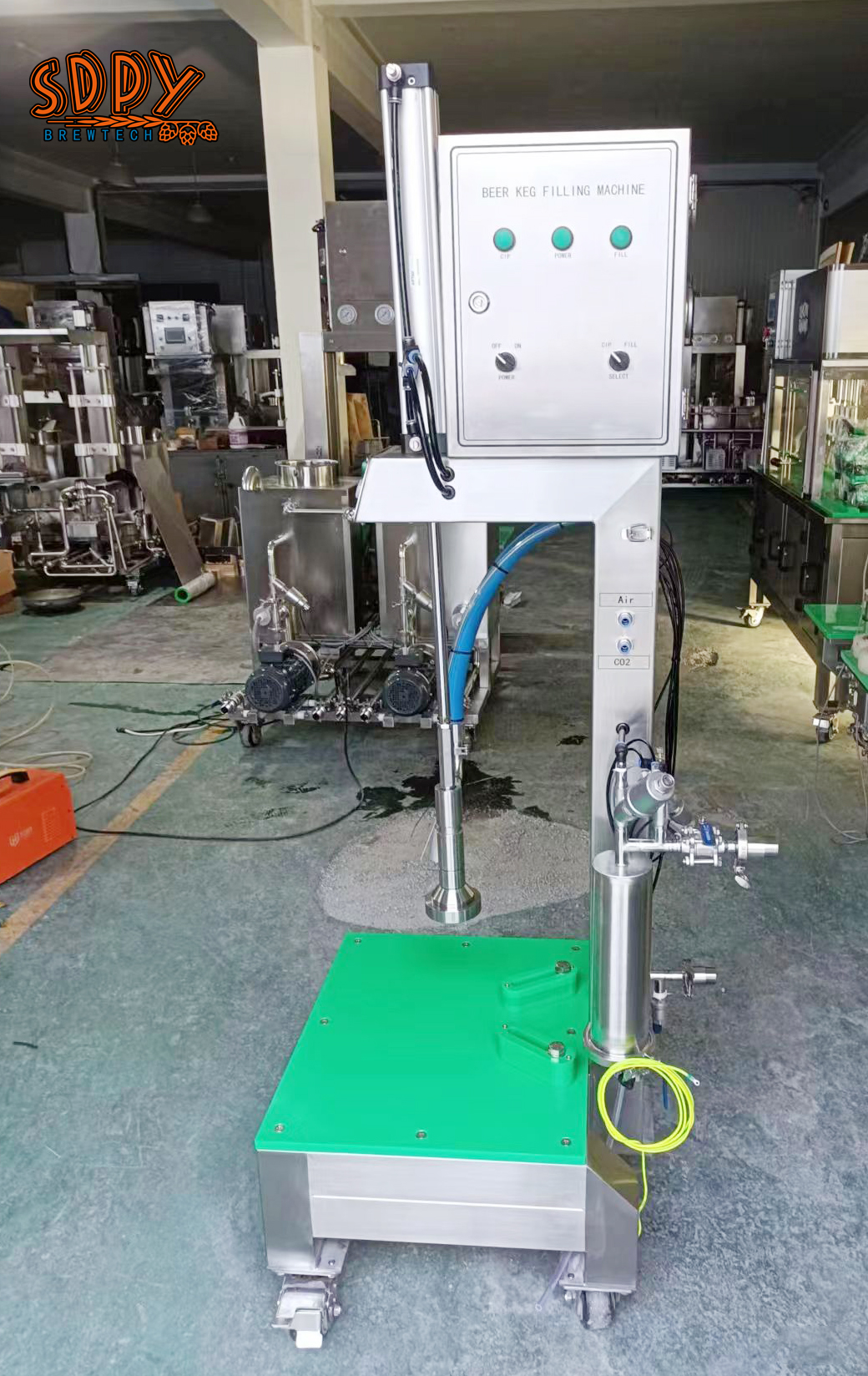

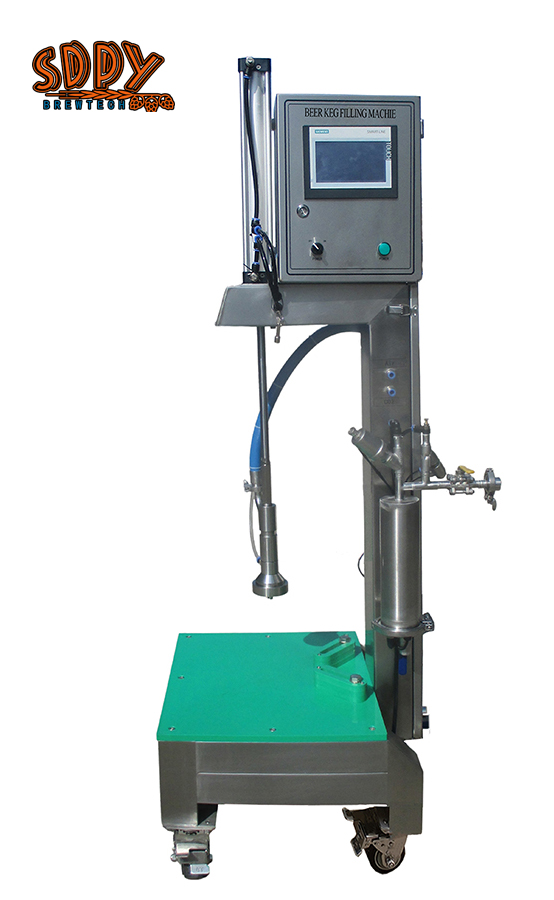

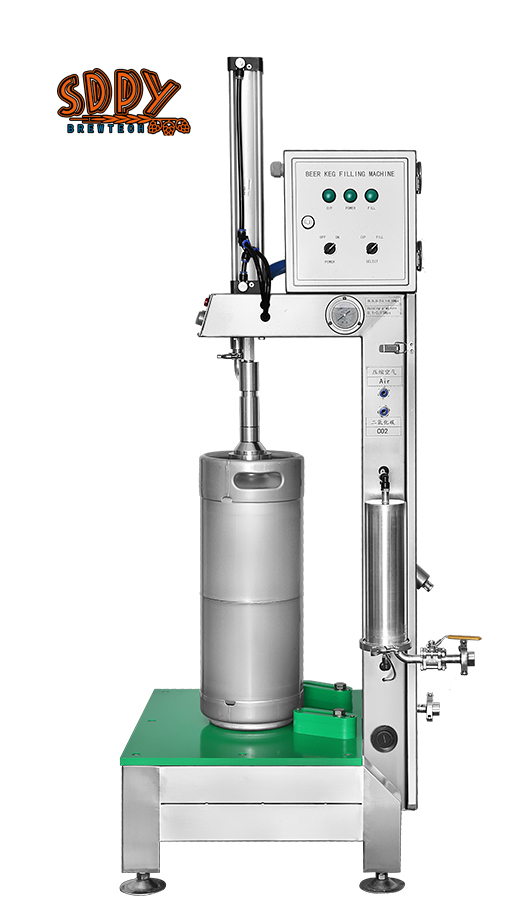

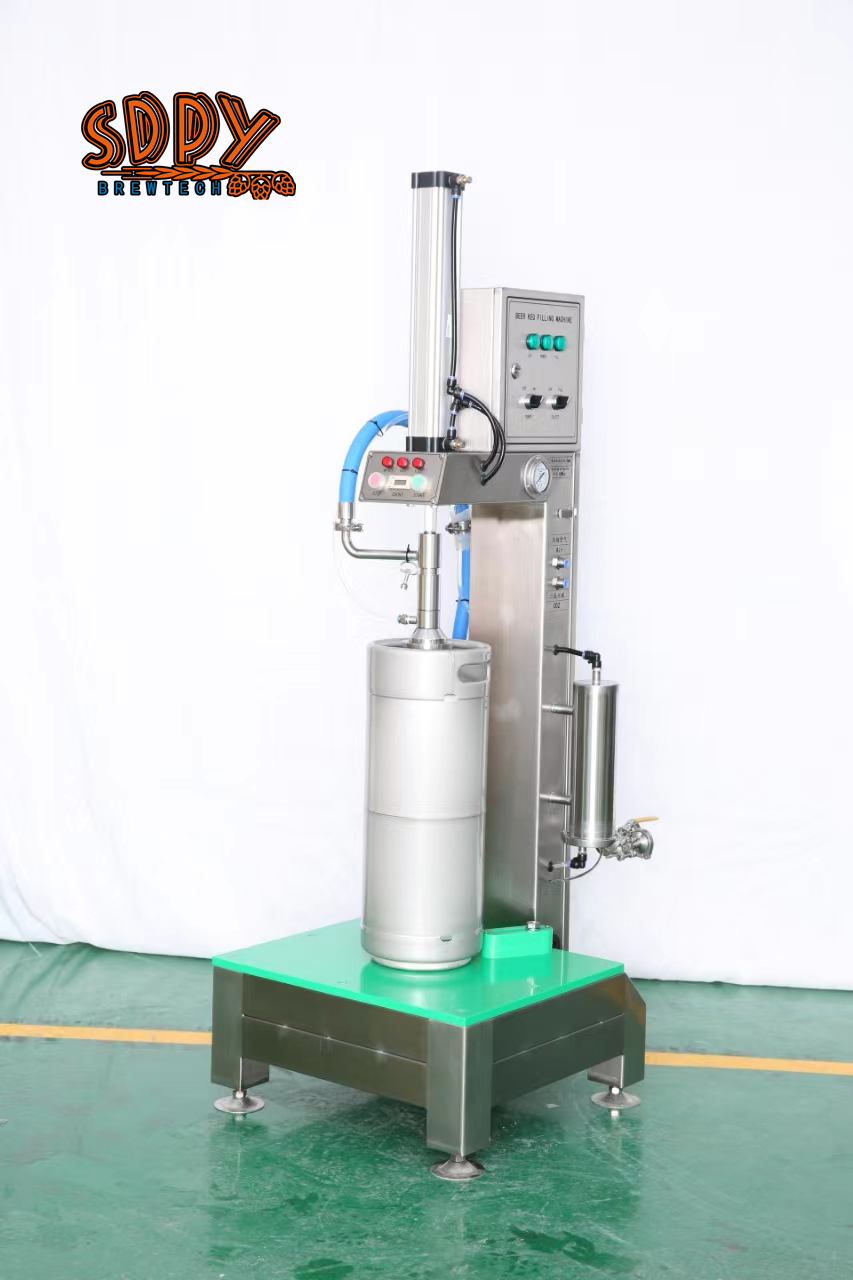

Single head type
SDPY Brewtech
The Single head keg filling machine is designed for the filling work of all kinds of beer kegs for nano and microbrewery, with capacity 30 - 40 kgs/hour.
Machine Feature of the Single Head Keg Filler
1. The whole filling process is controlled automatically by SIMENS programable controller. All parameters (time value) can be adjusted without stopping the machine.
2. Pressure remaining system performance is stable and reliable, to make sure the lowest beer loss compared to other similar products.
3. The keg filling equipment can fill the beer kegs with different volumes, EURO/US/DIN kegs 10lL/20L/30L/50L, don't need adjust any parameters.
4. The keg filler machine with CIP pipe for circulation, operate easy and high efficiency.
Working Process
Fix the kegs - Start - CO2 pressurization - Filling - Stop - Take the keg
Technical parameters for the one head keg filler
Machine dimension: 600mm* 850mm* 1550mm
Power supply: AC 220V50HZ (customize)
Capacity: 30-40kegs/H
Suitable for Keg size: diameter 250-500mm, height 360-600mm;
Power 30kw
Filling way: Upright filling
Weight 85kgs
