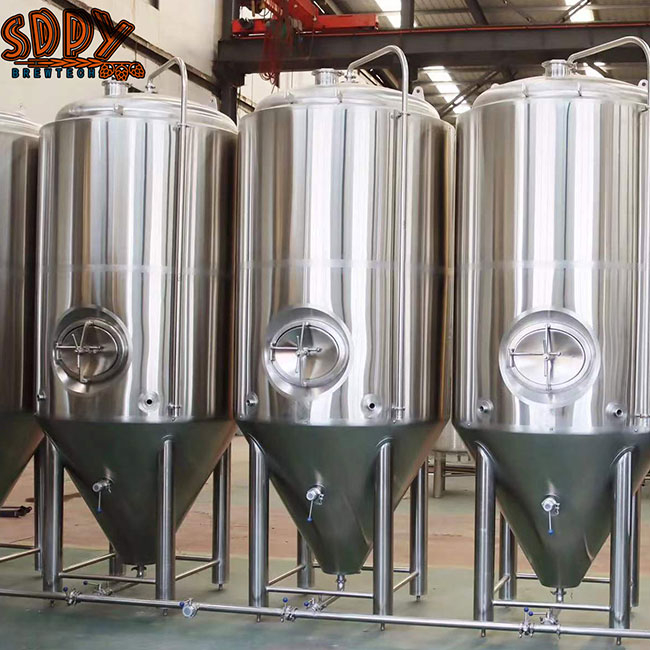

20BBL 304 Conical Fermentation tanks

20BBL fermentation tanks, use quality food sanitary grade SUS 304, double layer, insulated fermenters, with glycol cooling jacket, net volume 20BBL, total capacity 27bbl, (with at least 25% space), reference dimension dia 1660mm*3310mm, size can be customize. Dish head, cone bottom, 60 degree cone angle. Equip with all matched valves and fittings. Produce time 20-30days.

Availability:

Quantity:



Inquire Add to Basket

Model:
20BBL
Brand:
SDPY Brewtech

Product Description

Stainless steel SUS 304 20BBL Fermentation Tank 20bbl beer fermentation tanks mainly use for 20bbl craft brewery plant, for craft beer brewing and fermenting, it it is conical fermenter, stainless steel tanks, people usually name them as stainless steel fermenters, jacked fermenters, insulated fermenters, fermenting vessels, fementing/storage tanks, fementing/storage cellar fermentation and storage cellar etc. Beside the single 20BBL FV, we also provide complete 20BBL beer brewing system, from malt mill, to brewhouse, fermenting system, controlling system, cooling system, CIP system etc. Following jusy share with you detailed sepcification for 20BBL stainless steel 304 fermenters, if you have some idea on the specification, please kindly note us, we can customize yours tanks based on request.
No.	ITEMS	SPECIFICATION
1	Effective Volume	20BBL
2	Dimension	Φ1660×H3310mm(customize, can be design base on customer place height and door size)
3	Effective volume	20BBL
4	Total volume	27BBL
5	heating area	3.6m2
6	cooling way	with glycol cooling jacket, tank body and tank bottom part both have
7	washing way	Apple type CIP spray ball(rotary);In the center of the inside tank
8	beer out way	with beer outlet on cone side and drain valve on bottom
9	welding way	Perfect TIG argon arc welding, no welding dead corner.
10	control way	1.single control for unit tank, PID control 2. PLC control
11	temperature control ways	1. Displace the temperature directly on the tank, display temperature from intelligent data meter 2. Concentrate display, show temperature on touch screen of the control cabinet Prefer 1 or 2?
12	Temperature Measurement ways	Temperature sensor PT100, temperature display by intelligent data meter
13	Pressure control ways	Mechanical type pressure regular valve/ air lock
14	tank cladding material	Stainless Steel SUS304, brushed finished
15	Material of tank cladding	Stainless Steel SUS304
16	Material of inner container	Stainless Steel SUS304
17	surface of out cladding/surface treatment	surface brushed finish
18	surface of inner container	Polishing precision≤0.6µm
19	tank cladding Thickness	2mm(customize)
20	Inner tank material	3mm(customize)
21	top Seal head	domed top
22	head thickness	3mm
23	under cone	conical cone
24	cone angle	60 degree;
25	Insulation layer material	Protected by polyurethane
26	Insulation layer Thickness	100 mm(customize, based on local tempreature)
27	tank pressure
28	test pressure	0.2Mpa (customize,can design as per requirement)
29	work pressure	0.1-0.2Mpa((customize,can design as per requirement)
30	Manhole	side manhole ( top manway on request)
31	valves and fitting	Matched valves including： 1)breather valve 2)drain valves 4)sample valves 5)beer outlet valves
32	electric instruments	relief valve; intelligent data meter
33	Parts	Food grade;
34	Packaging Detail	export standard, maximum protection, including: Wooden case, plastic film, bubble film etc.
35	Certification:	EU CE TUV PED and ISO
