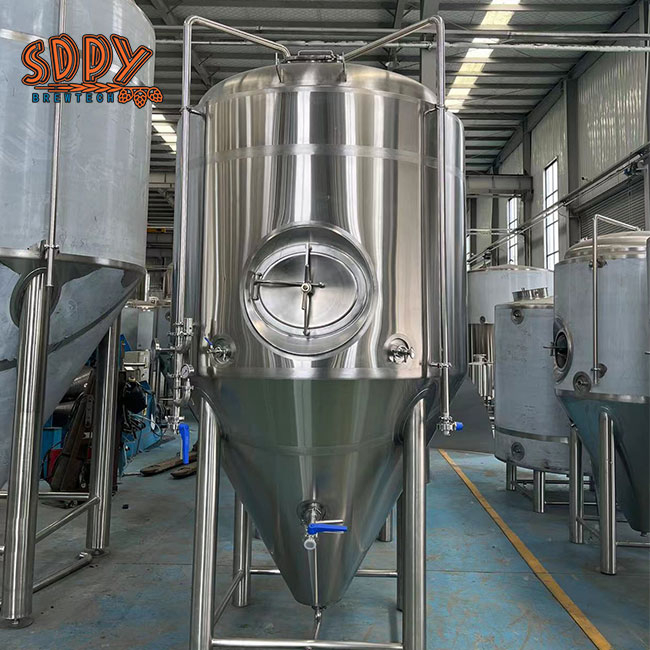

2000L/20HL Beer Fermentation Tank (side Manhole)

2000l fermentation tanks, material food sanitary grade SUS 304, double layer, insulated fermenters, with glycol cooling jacket, net volume 2000liter, total capacity with at least 25% space, reference dimension dia 1560mm*3020mm, size can be customize. Dish head, cone bottom, 60 degree cone angle. Equip with all matched valves and fittings. Produce time 20-30days.

Availability:

Quantity:



Inquire Add to Basket

Model:
2000L 20HL
Brand:
SDPY Brewtech

Product Description

Technical Details of stainless steel 2000-liter Fermentation Tank 2000l beer fermentation tanks mainly use for 2000l craft brewery plant, for craft beer brewing and fermenting, it is conical fermenter, stainless steel tanks, people usually name them as stainless-steel fermenters, jacked fermenters, insulated fermenters, fermenting vessels, fermenting/storage tanks, fermenting/storage cellar fermentation and storage cellar etc. Beside the single 2000l FV, we also provide complete 2000l beer brewing system, from malt mill, to brewhouse, fermenting system, controlling system, cooling system, CIP system etc. Following just shares with you detailed specification for 2000l stainless steel 304 fermenters, if you have some idea on the specification, please kindly note us, we can customize your tanks based on request.
No.	ITEMS	SPECIFICATION
1	Effective Volume	2000 lts
2	Dimension	Φ1560×H3020mm(customize, can be design base on customer place height and door size)
3	Effective volume	2000lts
4	Total volume	2220lts
5	heating area	3.6m2
6	cooling way	with glycol cooling jacket, tank body and tank bottom part both have
7	washing way	Apple type CIP spray ball(rotary);In the center of the inside tank
8	beer out way	with beer outlet on cone side and drain valve on bottom
9	welding way	Perfect TIG argon arc welding, no welding dead corner.
10	control way	1.single control for unit tank, PID control 2. PLC control
11	temperature control ways	1. Displace the temperature directly on the tank, display temperature from intelligent data meter 2. Concentrate display, show temperature on touch screen of the control cabinet Prefer 1 or 2?
12	Temperature Measurement ways	Temperature sensor PT100, temperature display by intelligent data meter
13	Pressure control ways	Mechanical type pressure regular valve/ air lock
14	tank cladding material	Stainless Steel SUS304, brushed finished
15	Material of tank cladding	Stainless Steel SUS304
16	Material of inner container	Stainless Steel SUS304
17	surface of out cladding/surface treatment	surface brushed finish
18	surface of inner container	Polishing precision≤0.6µm
19	tank cladding Thickness	2mm(customize)
20	Inner tank material	3mm(customize)
21	top Seal head	domed top
22	head thickness	3mm
23	under cone	conical cone
24	cone angle	60 degree;
25	Insulation layer material	Protected by polyurethane
26	Insulation layer Thickness	80 mm(customize, can design as per requirement)
27	tank pressure
28	test pressure	0.2Mpa(customize,can design as per requirement)
29	work pressure	0.1-0.2Mpa((customize,can design as per requirement)
30	Manhole	side manhole
31	valves and fitting	Matched valves including： 1)breather valve 2)drain valves 4)sample valves 5)beer outlet valves
32	electric instruments	relief valve; intelligent data meter
33	Parts	Food grade;
34	Packaging Detail	export standard, maximum protection, including: Wooden case, plastic film, bubble film etc.
35	Certification:	EU CE TUV PED and ISO
