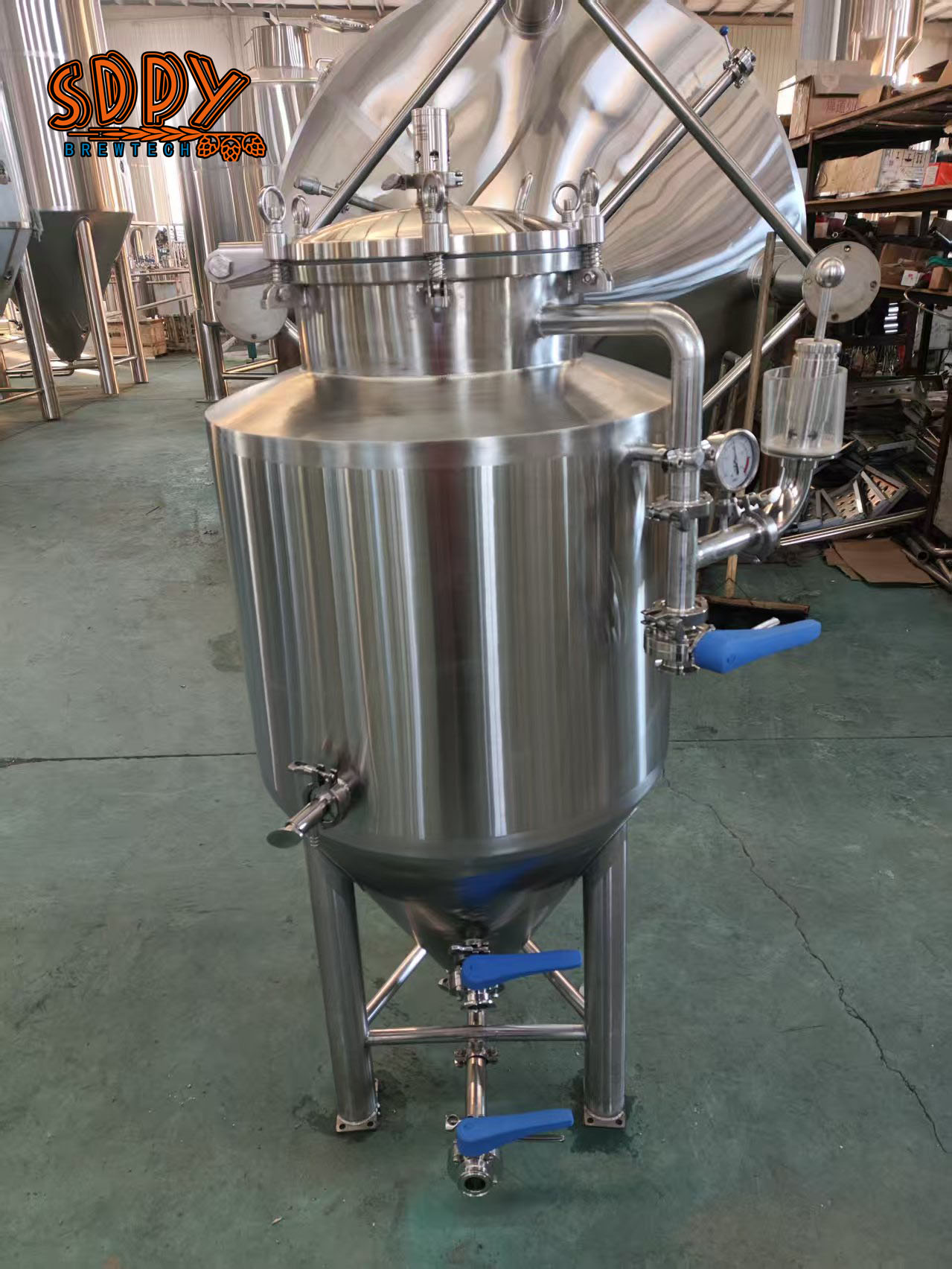

100L Fermentation Tank, 100L Conical fermenter

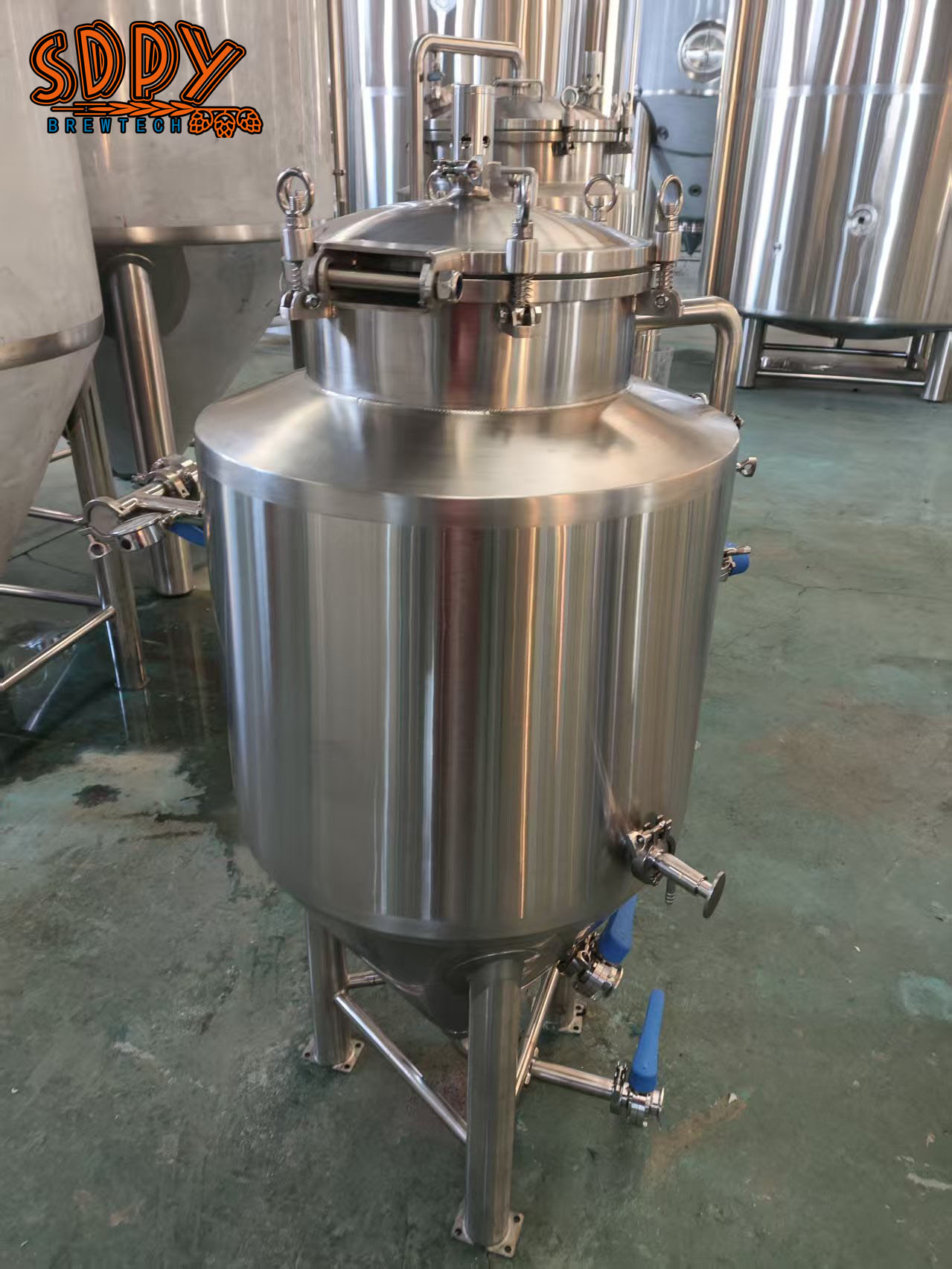

Technical Parameters for 100l Conical Fermenters/ 100L fermentation tank

1. Total volume: 130L, Effective volume 100L;

2. Size: Φ600× H1517mm, (reference, size adjustable)

3. Double layer, Inner tank thickness: 3mm, tank cladding 2mm.

4. with insulation layer, insulation material: PUF;insulation thickness: 50mm,

5. with dimple plate cooling jacket; cooling area 0.53m2,
6. Inner container thickness: 3mm, tank cladding 2mm.
7. Tank cladding surface brush finished, inner container plate polish to ≤0.6um

8. With thermo well and PT 100 temperature probe;

9. with pressure gauge

sample valves, breather valve, and matched valves, fittings. All food sanitary grade

10. with pressure regulator valve/ air lock;

11. with CIP arm and CIP washing ball;

12. with PT100 probe;

13.with beer outlet and drain outlet
14.Conical bottom, 60 degree cone angle;

15. with top manhole

16. with support legs and leg support

17.with wheels( based on request)

100L pilot system is a small scale set up microbrewery system, you can set up a small brewery as beer pilot system for home brew, testing your new beer products, beer flavor, beer taste, ingredients, experience different brewing process, technical before moving to larger-scale production, you can also do market research, consumer feedback collection, or taste testing to evaluate the potential or new beer offering, buy 100liter small-scale home brewery, nano brewery from SDPY Brewtech

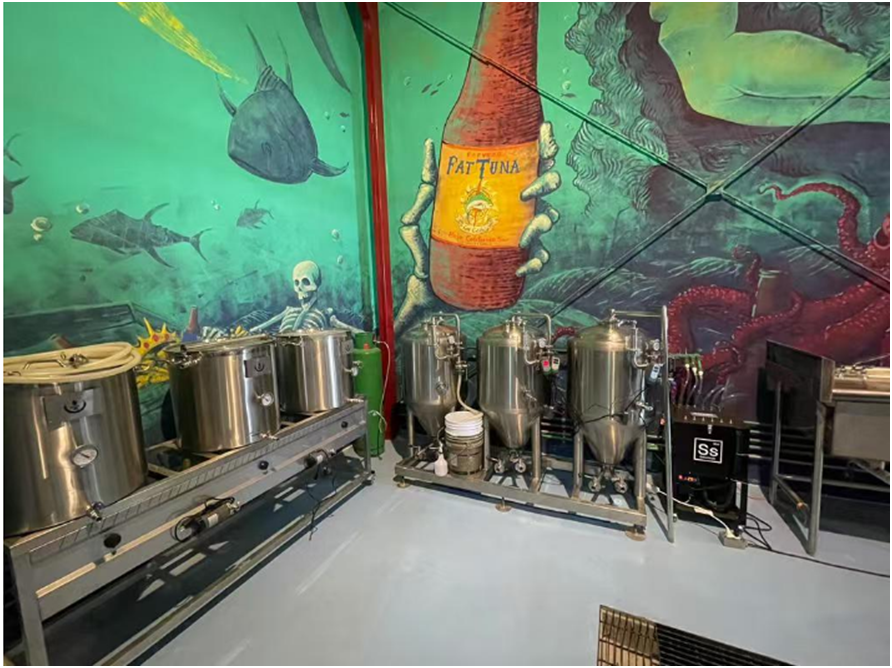

100L brewery is widely used for home brewery or use as a pilot system, you can choose for your first time brewery setup, it occupies little space and cost little amount, after order you can get complete system within 30days, fermenters, you use choose separate fermentation tanks connect with piping or all fermenters connect to a whole movable frame, or fermenters design to be stacked together based on your room site.

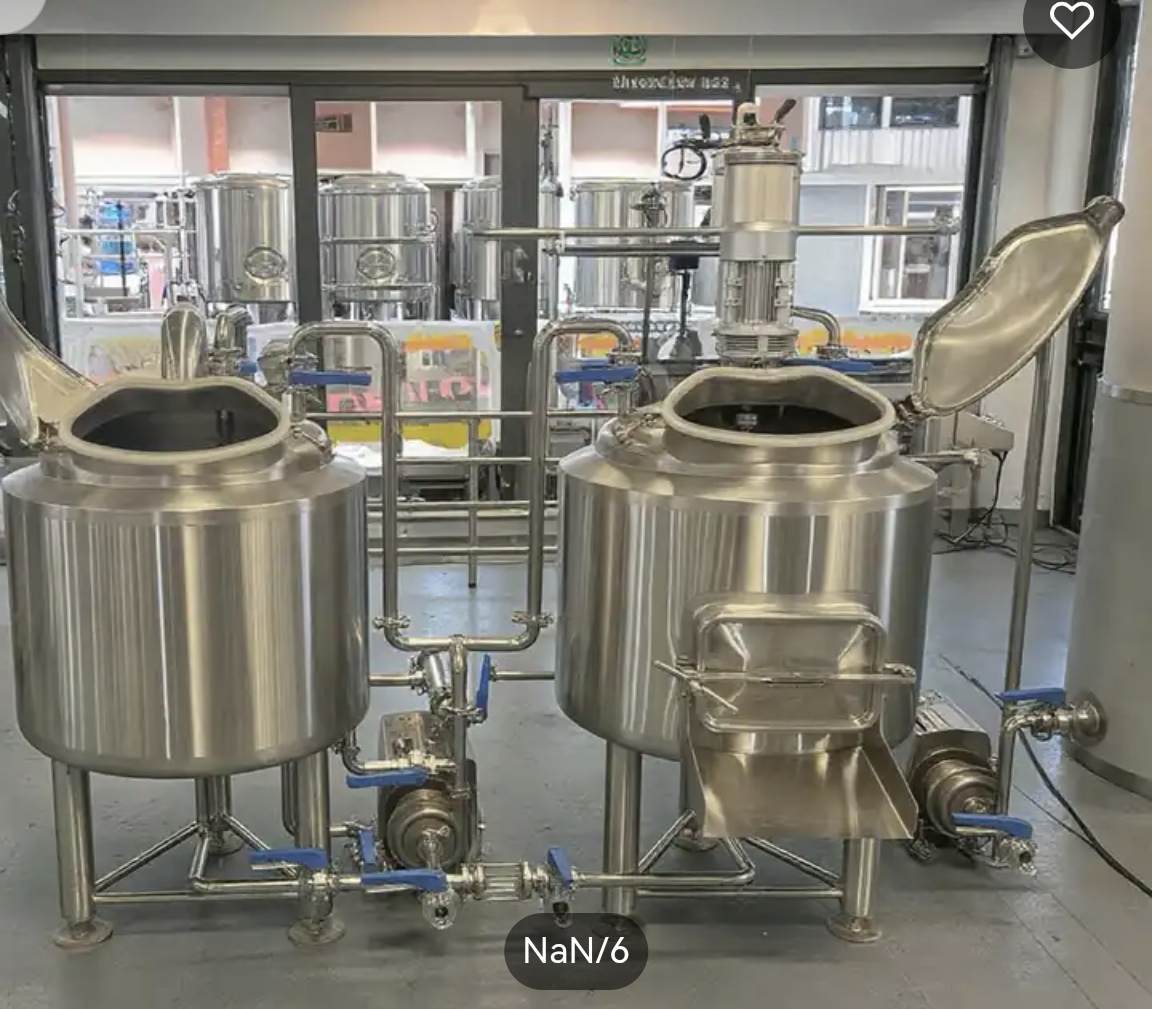

You can configuration your 100L brewhouse with the following options:

Cladding: Copper cladding/ stainless steel brewhouse

Heating: electrical, steam hearting jacket by natural gas

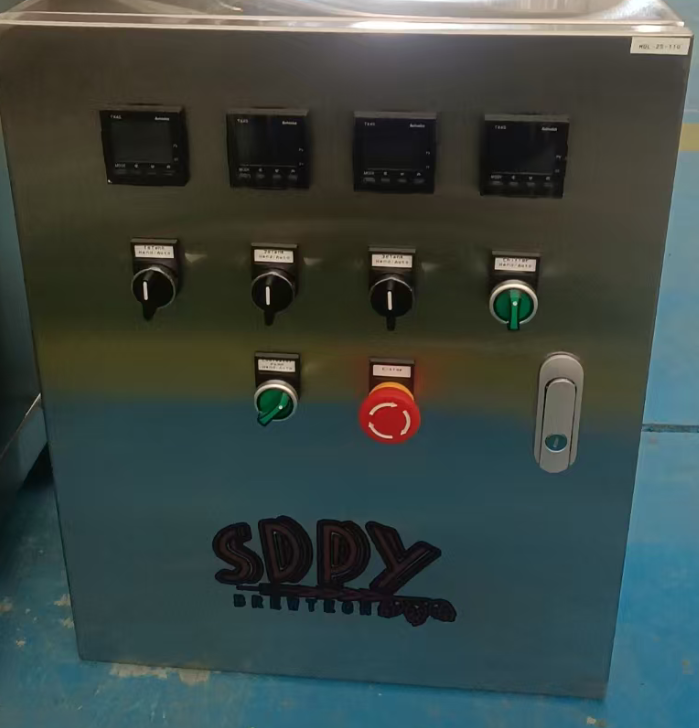

Automation: Semi and full automation

Vessel combination: 2 vessels, 3 vessels, 4 vessels, 5 vessels.

Auxiliaries: heat exchanger, pumps, platform, control panel, piping, valves and fittings.

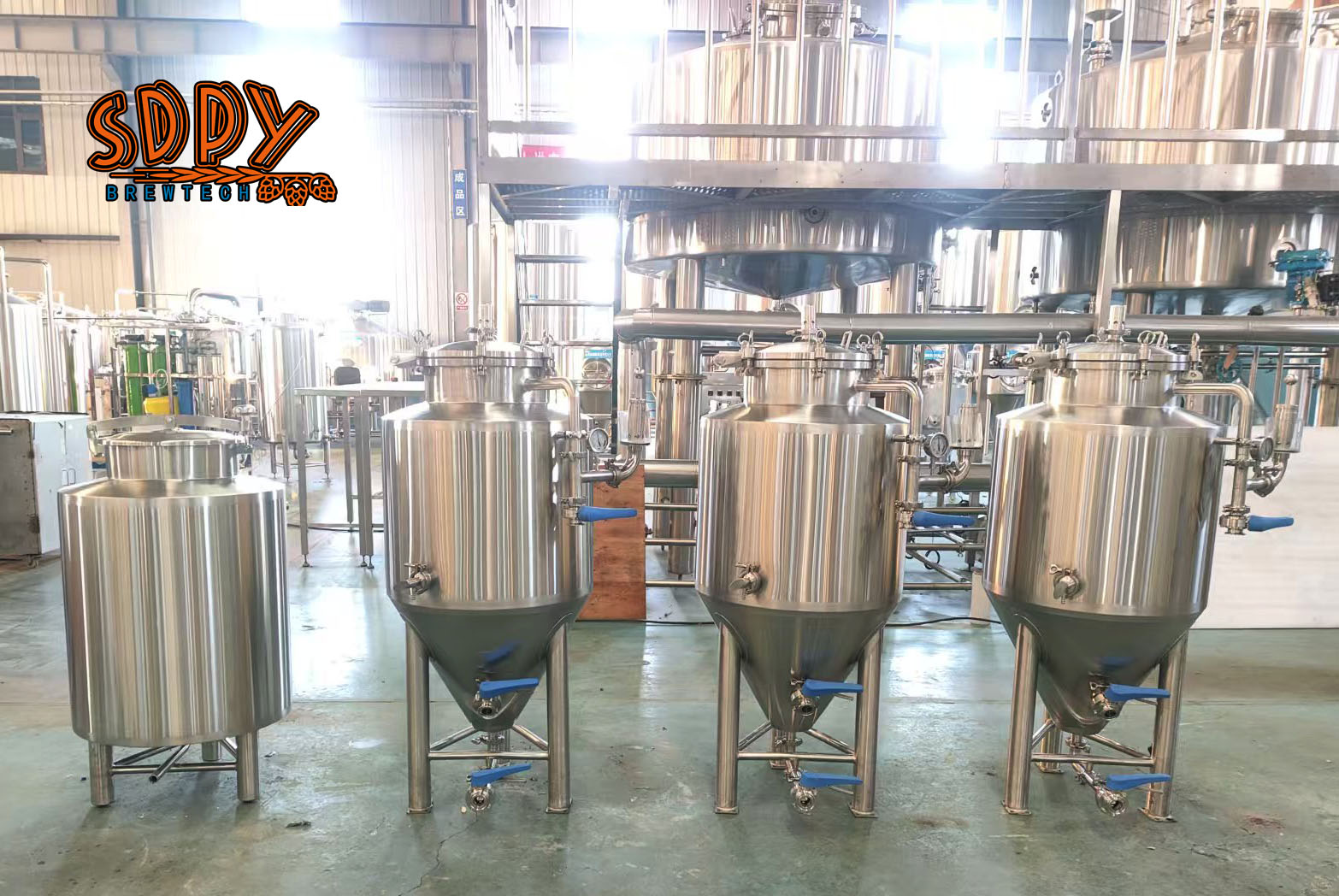

Introduce of 100L beer fermenting system, main including the following main beer equipment:

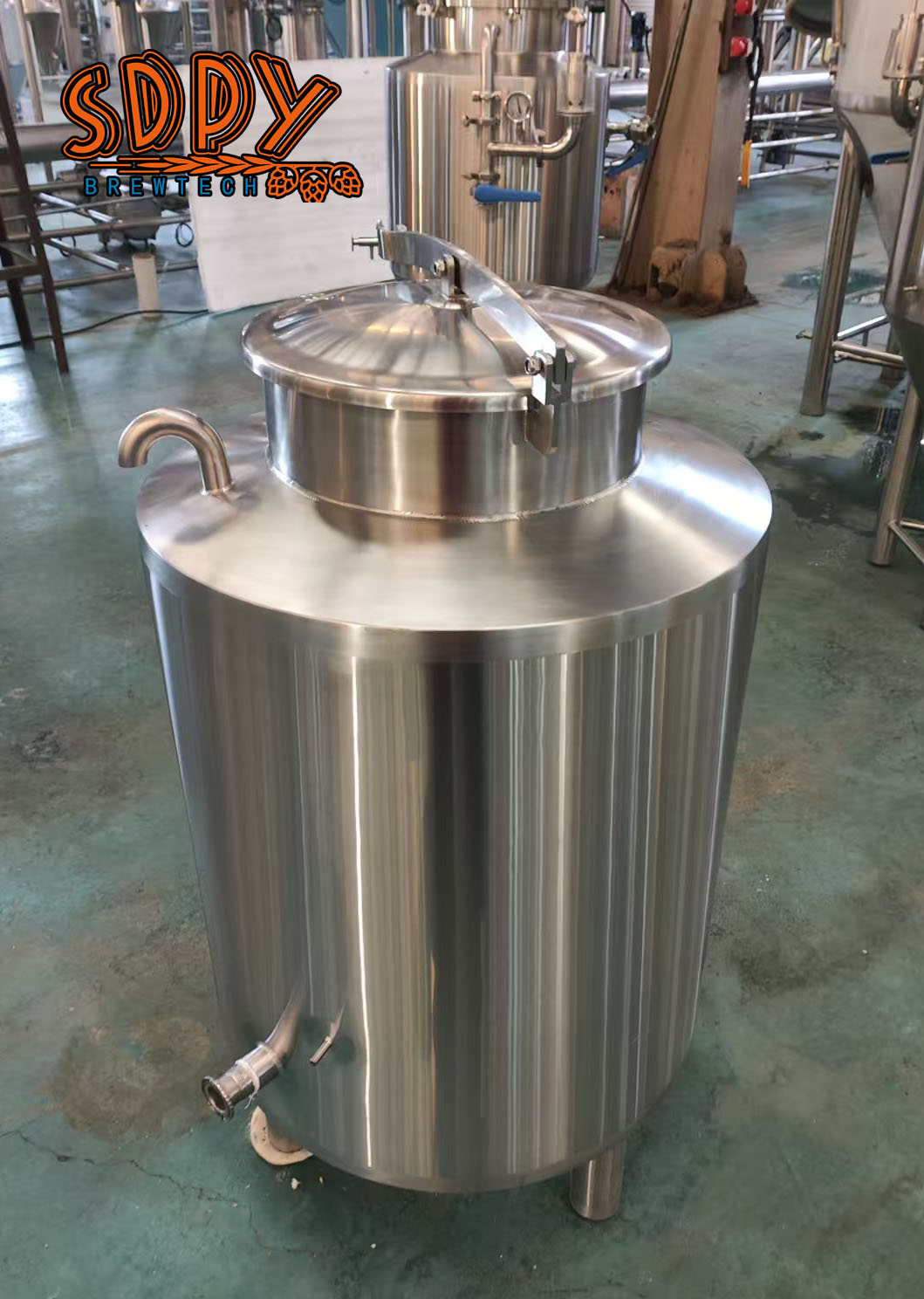

1.Fermenters: 100l conical fermenter; 2. cooling system: 100l glycol tank and chiller 2HP;

3.Piping, vales and fittings etc.

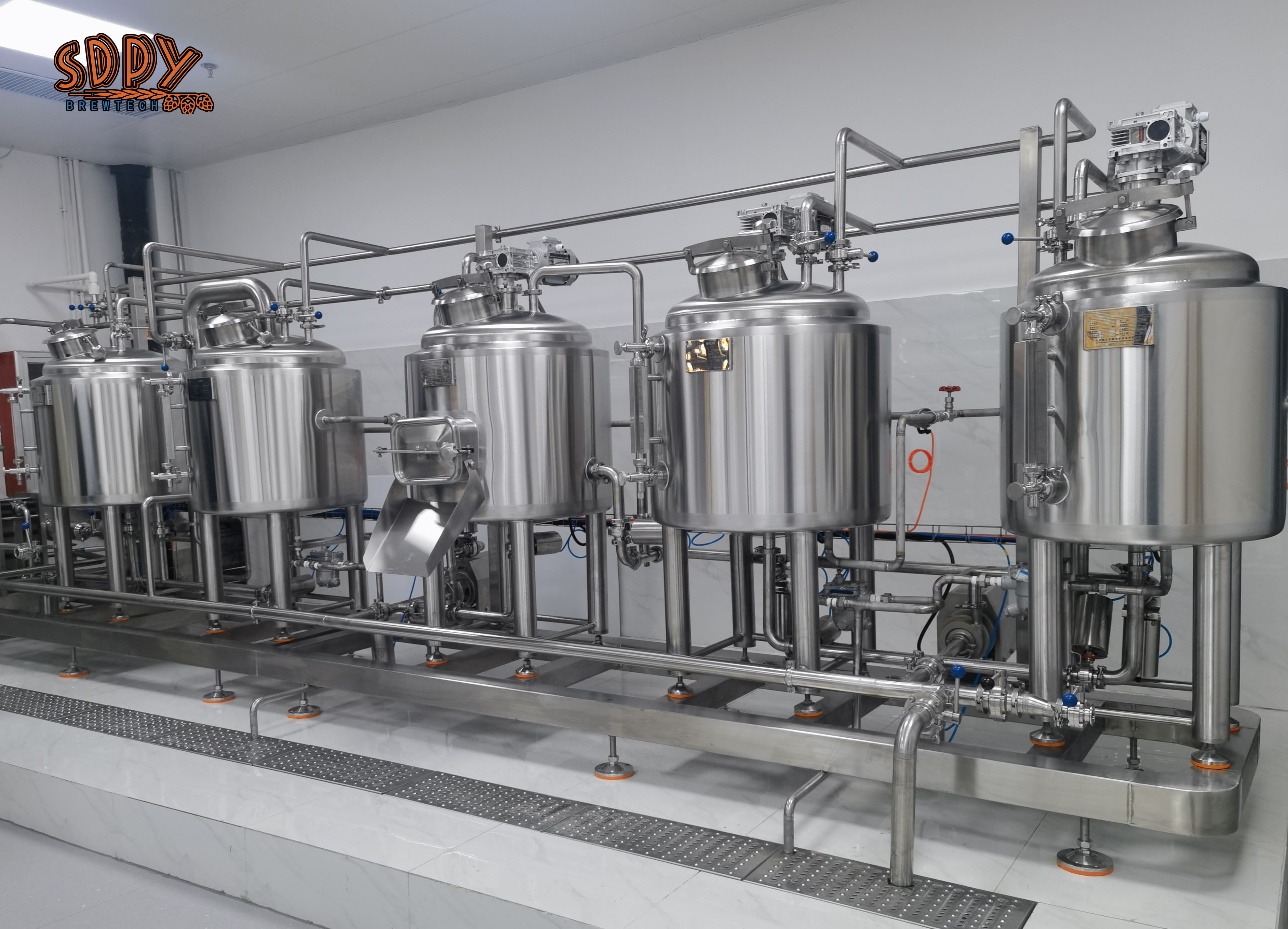

The advantage of SDPY Brewtech 100liter brewhouse

1. Food sanitary grade SUS 304 Material for tanks, valves, piping and fittings.

2. Gaskets food grade.

3. All tanks all laser cutting and welded, 100% TIG weld and sanitary polishing, ensure asepsis operation.

4. Dimple plate heating jacket design with steam flowing principal guarantee transit heat and save energy maximally;

5. Insulation material keeps the temperature in the tank surface same to the room temperature.

6. Control panels can be customized to CE/UL/CSA standard.

7. Plow system and wort pump with adjustable working speed with VFD.

8. Safe and stable operation.

9. Equipment layout and piping work looks beautiful without dead corner.
